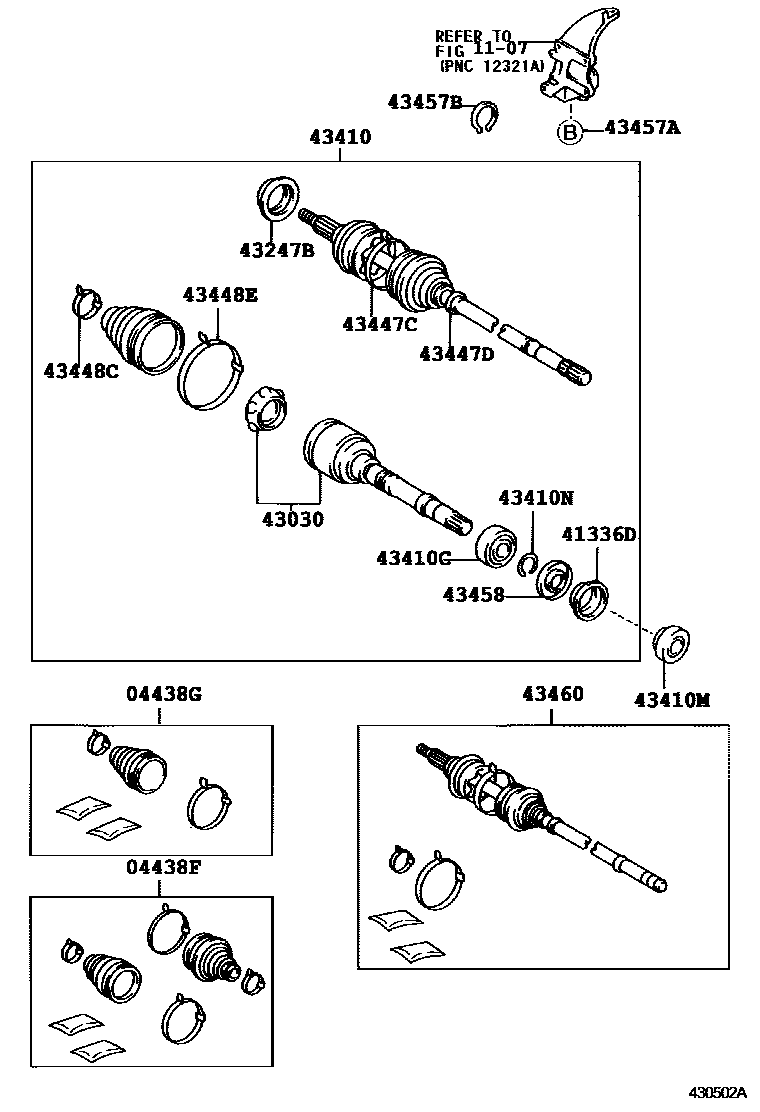

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06140iMCX20200311-200501

sub04438-0E020

main04438-07020iMCX20199908-200107

main04438-07050iMCX20200107-200206

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-07010iMCX20199908-200206

sub04438-06400

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iMCX20199908-200206

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-07010iMCX20199908-200206

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iMCX20199908-200206

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-07030iMCX20199908-200107

main43410-07031iMCX20200107-200206

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iMCX20200206-200501

main90363-41002iMCX20199911-200107

sub90363-41003

main90369-41001iMCX20199908-199911

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010iMCX20199908-200012

main90311-40028iMCX20200012-200206

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iMCX20199908-200206

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06060iMCX20199908-200107

ID=90.9

main42345-06080iMCX20200107-200206

ID=95.6

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iMCX20200107-200206

ID=33.7

main42345-06070iMCX20199908-200107

ID=29.3

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iMCX20200206

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010iMCX20199908-200206

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCX20199908-200206

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCX20199908-200206

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iMCX20199908-200206

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09610iMCX20199908-200107

main43470-09A16iMCX20200107-200206

18 parts on this diagram · 4 diagrams in section
