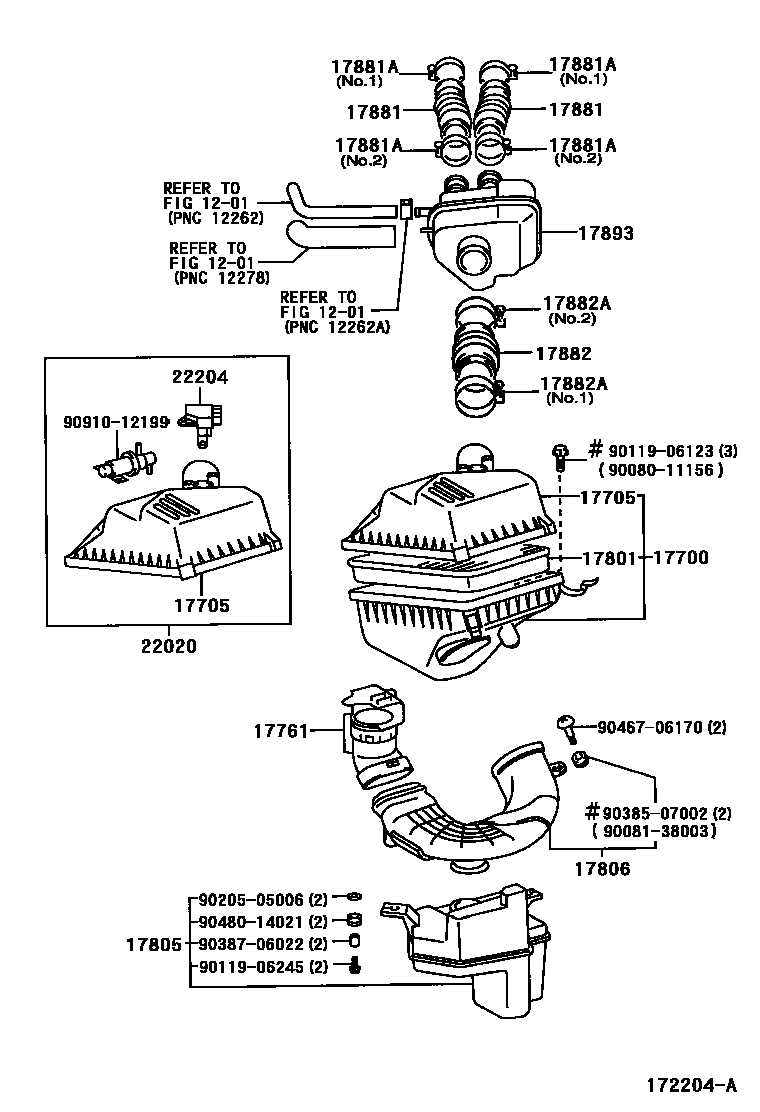

AIR CLEANER
1201
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17761CAP, AIR CLEANER INLET
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17806PIPE SUB-ASSY, AIR CLEANER, NO.2
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
NO.1
NO.2
17893RESONATOR, INTAKE AIR
22020METER ASSY, AIR FLOW W/AIR CLEANER
22204METER SUB-ASSY, INTAKE AIR FLOW
(J)
9008011156
main90080-11156
9008138003
main90081-38003
9011906123
main90119-06123
9011906245
main90119-06245
9020505006
main90205-05006
9038507002
main90385-07002
9038706022
main90387-06022
9046706170
main90467-06170
9048014021
main90480-14021
9091012199
main90910-12199
24 parts on this diagram · 1 diagram in section
