16261GHOSE, WATER BY-PASS, NO.1

main16261-0A010i200206-200501

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-28007×2i200204-200206

main90467-28008×2i199908-200204

16264HOSE, WATER BY-PASS, NO.2

main16264-0A020i200206-200501

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96135-41300×2i199908-200204

main96135-51300×2i200204-200206

main96137-41501×2i200405-200501

16267HOSE, WATER BY-PASS, NO.3

main16267-0A020i199908-200206

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main96135-41300×2i199908-200204

main96135-51300×2i200204-200206

main96137-41501×2i200405-200501

16321INLET, WATER

main16321-0A030i199908-200206

16322PIPE, WATER INLET

main16322-0A030i199908-200206

16322ARING, O(FOR WATER INLET)

main96761-35031i199908-200206

16323HOUSING, WATER INLET

main16323-0A020i199908-200206

main16323-0A021i200210-200501

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i199908-200206

16331OUTLET, WATER

main16304-0A010i200206-200501

16331ATHERMOSTAT

main90916-03084i200206-200409

*WAX 82-95

main90916-03129i200409-200501

*WAX 82-95

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-62090i199908-200206

16361FAN

main16361-0A120i199908-200206

main16361-0A121i200401-200501

16361BFAN, NO.2

main16361-0A130i199908-200206

main16361-0A131i200401-200501

16363MOTOR, COOLING FAN

main16363-0A090i199908-200206

16363AMOTOR, COOLING FAN, NO.2

main16363-0A050i200206-200501

16384BRACKET, FAN BELT ADJUSTING BAR

main16384-20020i200206

16400RADIATOR ASSY

main16400-0A170i199908-200206

MARK OF RADIATOR = 0A17

main16400-0A180i199908-200206

MARK OF RADIATOR = 0A18

16470TANK ASSY, RADIATOR RESERVE

main16470-0A060i199908-200206

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-0A060i199908-200206

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-12058×2i199908-200206

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-0A010i199908-200206

16471CAP SUB-ASSY, RESERVE TANK

main16471-0A010i199908-200110

main16471-AA010i200110-200206

16523ACUSHION, RADIATOR SUPPORT

main16523-03010×2i199908-200206

16533SUPPORT, RADIATOR, UPPER

main16533-0A040×2i199908-200206

16535SUPPORT, RADIATOR, LOWER

main16535-0A020×2i199908-200206

(L)

main16535-20010×2i199908-200206

(J)

16571HOSE, RADIATOR, INLET

main16571-0A040i199908-200206

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001×2i200008-200206

TYPE A:REFER TO ILLUSTRATION

main90467-37002×2i199908-200008

main90467-37005×2i200204-200206

TYPE B:REFER TO ILLUSTRATION

16572HOSE, RADIATOR, OUTLET

main16572-0A040i199908-200206

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001×2i200008-200206

TYPE A:REFER TO ILLUSTRATION

main90467-37002×2i199908-200008

main90467-37005×2i200204-200206

TYPE B:REFER TO ILLUSTRATION

16711SHROUD, FAN

main16711-0A080i200206

MARK OF RADIATOR = 0A18

main16711-0A150i200206

MARK OF RADIATOR = 0A17

16711ASHROUD, FAN, NO.2

main16711-0A120i199908-200206

MARK OF RADIATOR = 0A18

main16711-0A160i199908-200206

MARK OF RADIATOR = 0A17

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

8202WIRING & CLAMP

→ Go to FIG 82-02

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9006902027

main90069-02027

9006903010

main90069-03010

9008010164

main90080-10164

9008011188

main90080-11188

9008011206

main90080-11206

9008011208

main90080-11208

9008011223

main90080-11223

9008011256

main90080-11256

9008011540

main90080-11540

9008011541

main90080-11541

9008017237

main90080-17237

9009904119

main90099-04119

9009905164

main90099-05164

9011606070

main90116-06070

9011908B27

main90119-08B27

9014880017

main90148-80017

9014880018

main90148-80018

9017906080

main90179-06080

9017908230

main90179-08230

9017908233

main90179-08233

91511B0616

main91511-B0616

91621B0816

main91621-B0816

91621G0612

main91621-G0612

91631B0820

main91631-B0820

91651B0616

main91651-B0616

9212260612

main92122-60612

9461310800

main94613-10800

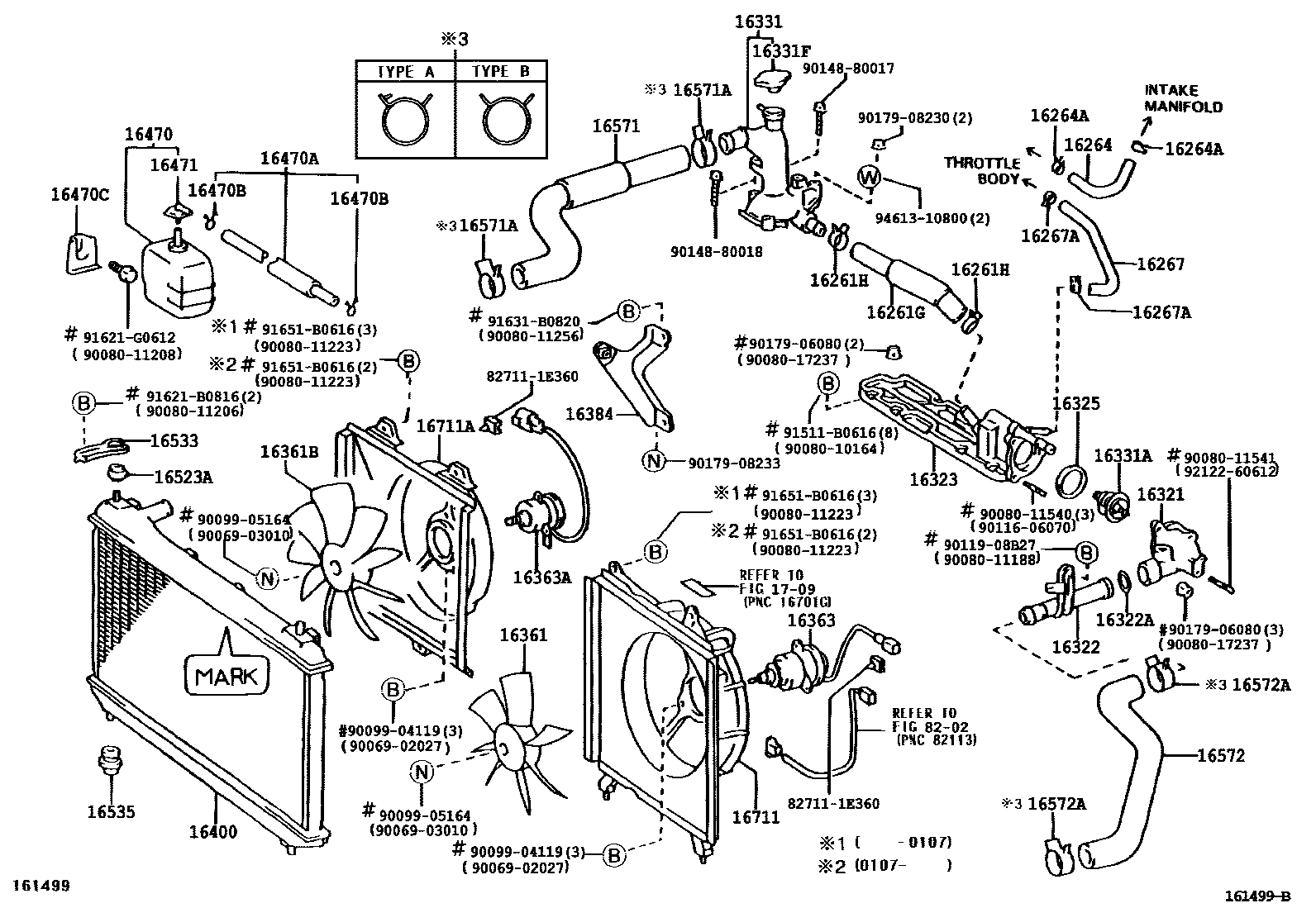

RADIATOR & WATER OUTLET
