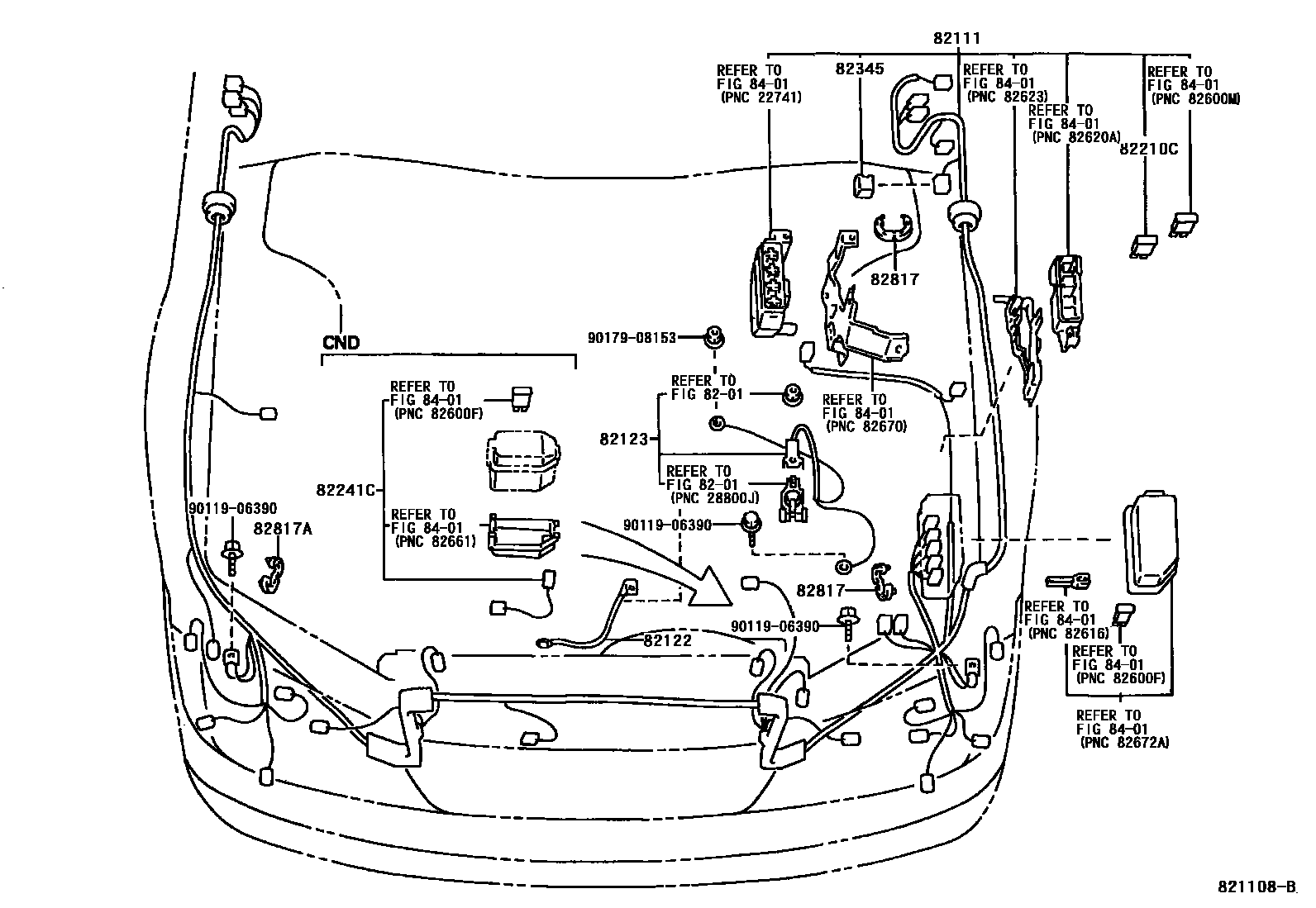

WIRING & CLAMP
8201
82111WIRE, ENGINE ROOM MAIN
W(SECURITY SYSTEM)
W(ABS & SECURITY SYSTEM)
W(SECURITY SYSTEM)
W(ENGINE IMMOBILIZER SYSTEM)
W(ENGINE IMMOBILIZER SYSTEM)
W(ABS)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(ABS)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL & SECURITY SYSTEM)
W(TRACTION CONTROL)
W(ENGINE IMMOBILIZER SYSTEM & TRACTION CONTROL)
W(TRACTION CONTROL)
W(ENGINE IMMOBILIZER SYSTEM & TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(DAY TIME RUNNING LIGHT SYSTEM & TRACTION CONTROL)
CALIFORNIA SPEC & W(DAY TIME RUNNING LIGHT SYSTEM)
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC & W(TRACTION CONTROL)
CALIFORNIA SPEC & W(TRACTION CONTROL)
CALIFORNIA SPEC & W(DAY TIME RUNNING LIGHT SYSTEM & TRACTION CONTROL)
82122WIRE, ENGINE, NO.2
82123WIRE, ENGINE, NO.3
82210CFUSIBLE LINK
40A,TERM.:FEMALE,GRN
60A,TERM.:MALE,YEL
60A,TERM.:MALE,YEL,W(ABS)
80A,TERM.:MALE,BLK
50A,TERM.:FEMALE,RED
120A,TERM.:MALE,WHT
82241CWIRE, RELAY
82345DIODE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
82817PROTECTOR, WIRING HARNESS, NO.1
W(ENGINE IMMOBILIZER SYSTEM)
82817APROTECTOR, WIRING HARNESS, NO.2
W(ABS),(L)
(L)
W(ABS),(J)
(J)
8401
9011906390
main90119-06390
9017908153
main90179-08153
12 parts on this diagram · 11 diagrams in section
