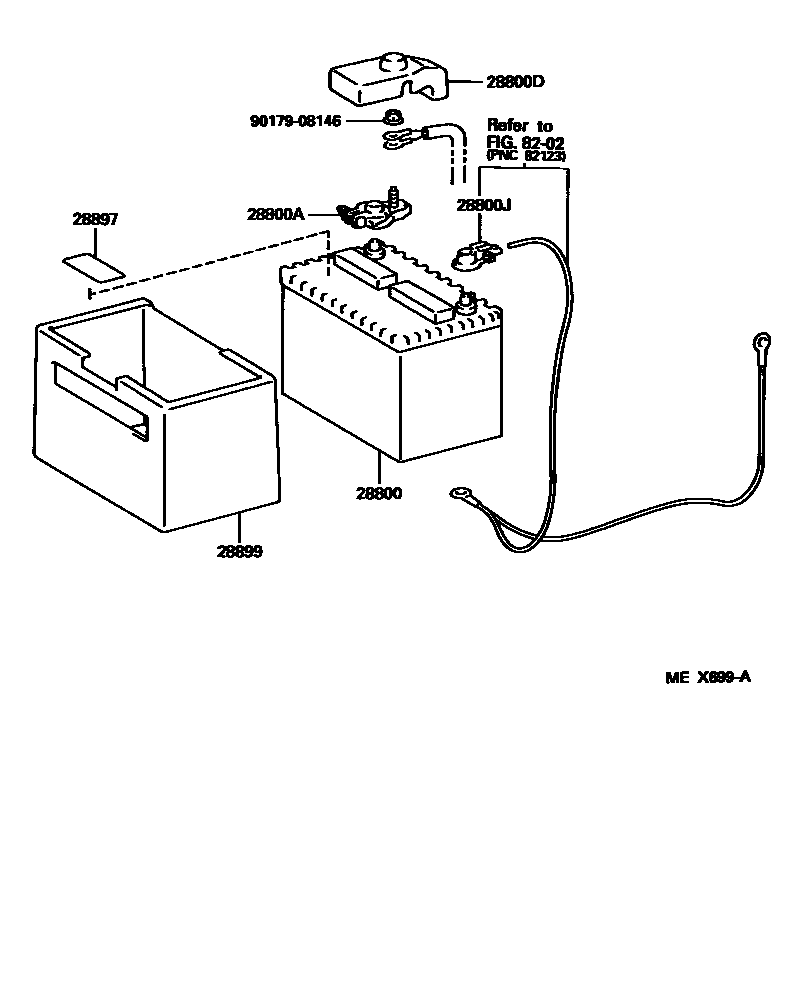

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03042i1MZFE..MCX10199409-199509

80D26L,JOHNSON

main28800-03043i1MZFE..MCX10199509-199602

80D26L,JOHNSON

main28800-03044i1MZFE..MCX10199602

80D26L,JOHNSON

main28800-AA010i1MZFE..MCX10..USA199409-199503

55D23L,W/O COLD SPEC

main28800-AA040i1MZFE..MCX10199409-199512

80D26L,GNB

main28800-AA041i1MZFE..MCX10199512

80D26L,GNB

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1MZFE..MCX10199409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-08010i1MZFE..MCX10199709

main82821-12290i1MZFE..MCX10199409-199709

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1MZFE..MCX10199409

28897PLATE, BATTERY CAUTION

main28897-03010i1MZFE..MCX10..CND199409-199509

main28897-AA010i1MZFE..MCX10..CND199509

28899INSULATOR, BATTERY

main28899-AA010i1MZFE..MCX10..USA199409

W/O COLD SPEC

main28899-AA020i1MZFE..MCX10199409

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
