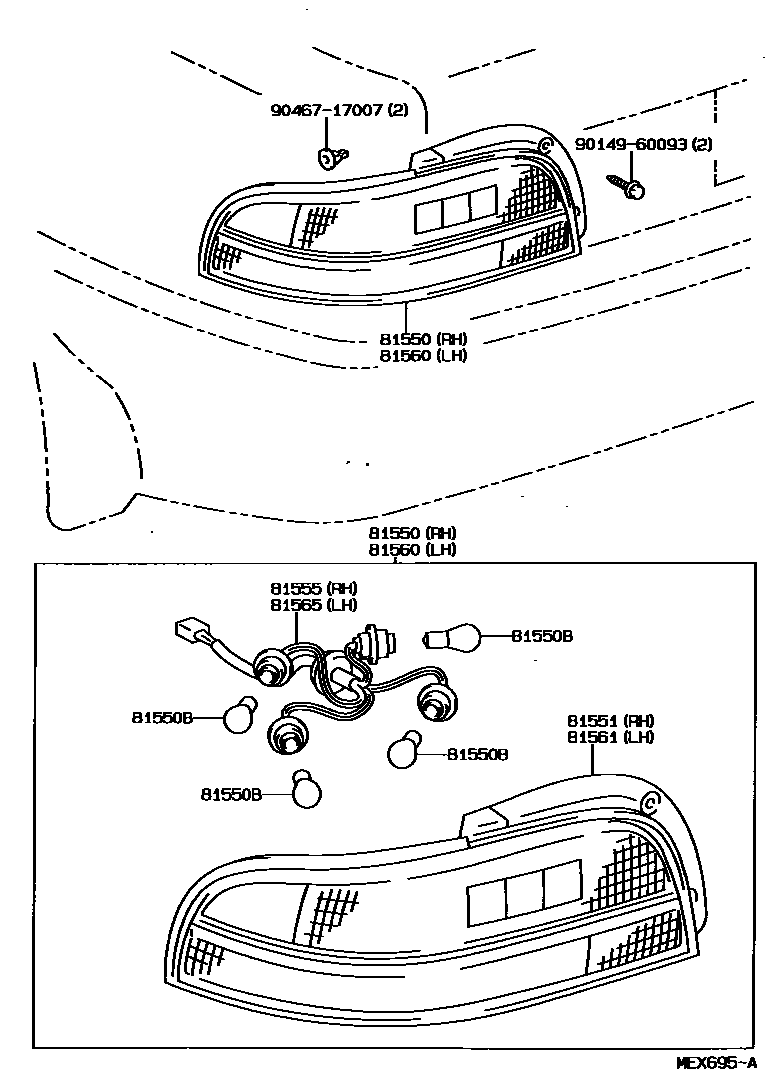

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-AC010iMCX10199409-199709

main81550-AC030iMCX10..USA;MCX10..4FC..CND199709

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81012×2iMCX10..USA;MCX10..4FC..CND199709

12V 5W

main90981-13050×2iMCX10..USA;MCX10..4FC..CND199709

12V 21W

main90981-13051×2iMCX10..USA;MCX10..4FC..CND199709

12V 21/5W

main99132-11270×4iMCX10199409-199709

12V 27W

main99132-21270×4iMCX10199409-199709

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-AC010iMCX10199409-199709

main81551-AC030iMCX10..USA;MCX10..4FC..CND199709

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-AC010iMCX10199409-199709

main81555-AC030iMCX10..USA;MCX10..4FC..CND199709

81560LAMP ASSY, REAR COMBINATION, LH

main81560-AC010iMCX10199409-199709

main81560-AC030iMCX10..USA;MCX10..4FC..CND199709

81561LENS, REAR COMBINATION LAMP, LH

main81561-AC010iMCX10199409-199709

main81561-AC030iMCX10..USA;MCX10..4FC..CND199709

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-AC010iMCX10199409-199709

main81555-AC030iMCX10..USA;MCX10..4FC..CND199709

9014960093

main90149-60093

9046717007

main90467-17007

9 parts on this diagram · 2 diagrams in section
