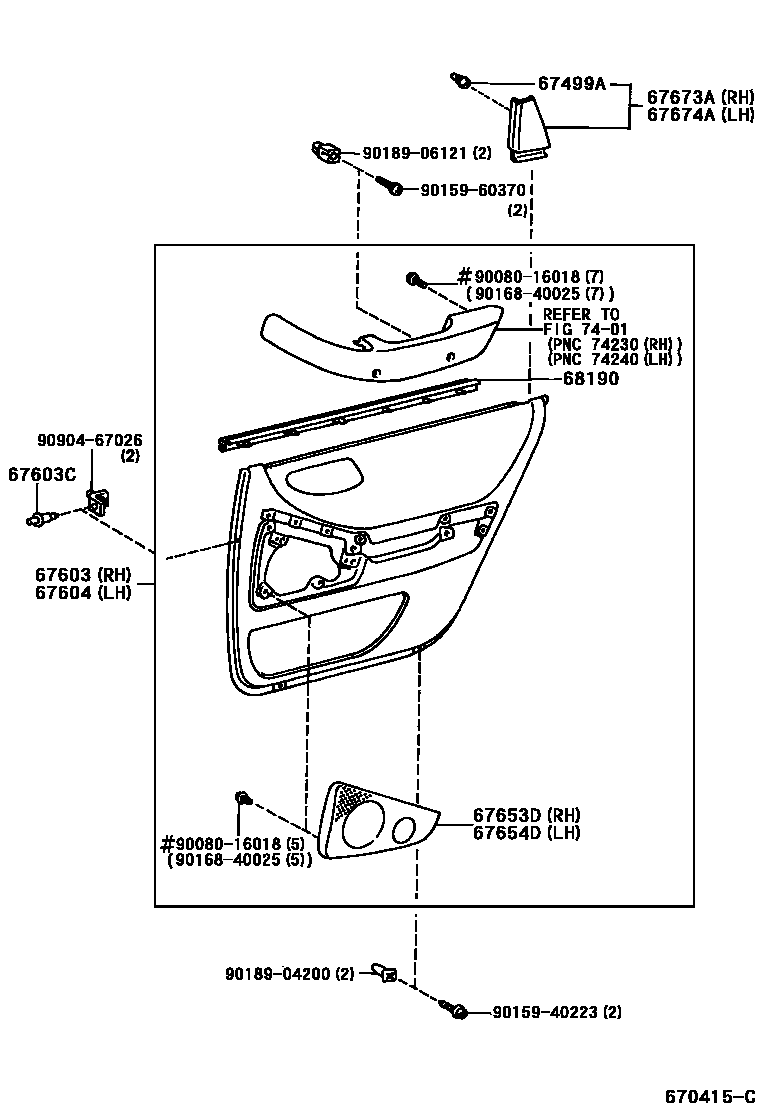

REAR DOOR PANEL & GLASS
67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
GRAY,TRIM2#
BLACK,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
DK.ADOBE,TRIM42
ROSE STONE,TRIM43
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
POWER & LEATHER PACKAGE,DK. ROSE,TRIM4#
main67630-AC030-E1iMCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA199409-199508
LEATHER PACKAGE,ADOBE,TRIM4#; LEATHER PACKAGE,ADOBE,TRIM42
LEATHER PACKAGE,ROSE STONE,TRIM4#; POWER & LEATHER PACKAGE,ROSE STONE,TRIM4#
main67630-AC030-L4iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND199709-199908
LEATHER PACKAGE,ROSE STONE,TRIM4#; LEATHER PACKAGE,ROSE STONE,TRIM43; POWER & LEATHER PACKAGE,ROSE STONE,TRIM43
main67630-AC030-L7iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND199709-199908
LEATHER PACKAGE,SANDAL WOOD,TRIM4#; LEATHER PACKAGE,SANDAL WOOD,TRIM44; POWER & LEATHER PACKAGE,SANDAL WOOD,TRIM44
BLACK,TRIM2#
DK. ADOBE,TRIM42
ROSE STONE,TRIM43
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67603CCAP(FOR REAR DOOR TRIM BOARD)
BLACK,TRIM2#
main90467-07066-A0×4iMCX10..4FC..XLS..USA; MCX10..4HC;MCX10..4FC..CND;MCX10..4FC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44
QUARTZ,TRIM41
LT. ADOBE,TRIM42
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
GRAY,TRIM2#
BLACK,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
DK.ADOBE,TRIM42
ROSE STONE,TRIM43
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
main67640-AC030-E0iMCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA199409-199508
LEATHER PACKAGE,DK. ROSE,TRIM4#; LEATHER PACKAGE,DK. ROSE,TRIM41
main67640-AC030-E1iMCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA199409-199508
LEATHER PACKAGE,ADOBE,TRIM4#; LEATHER PACKAGE,ADOBE,TRIM42
LEATHER PACKAGE,ROSE STONE,TRIM4#; POWER & LEATHER PACKAGE,ROSE STONE,TRIM4#
main67640-AC030-L4iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND199709-199908
LEATHER PACKAGE,ROSE STONE,TRIM4#; LEATHER PACKAGE,ROSE STONE,TRIM43; POWER & LEATHER PACKAGE,ROSE STONE,TRIM43
main67640-AC030-L7iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND199709-199908
LEATHER PACKAGE,SANDAL WOOD,TRIM4#; LEATHER PACKAGE,SANDAL WOOD,TRIM44; POWER & LEATHER PACKAGE,SANDAL WOOD,TRIM44
BLACK,TRIM2#
DK. ADOBE,TRIM42
ROSE STONE,TRIM43
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT. ADOBE,TRIM42
main67653-AC020-A0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44; LEATHER PACKAGE,IVORY,TRIM44; POWER & LEATHER PACKAGE,IVORY,TRIM44
main67653-AC020-C0iMCX10..4FC..XL..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA; MCX10..XLS..USA199409-199908
BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
main67653-AC020-E0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
DK. ROSE,TRIM4#; DK. ROSE,TRIM43; LEATHER PACKAGE,DK. ROSE,TRIM43; POWER & LEATHER PACKAGE,DK. ROSE,TRIM43
ADOBE,TRIM42; LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
LT. ADOBE,TRIM42
main67654-AC020-A0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XLS..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA199709-199908
IVORY,TRIM4#; IVORY,TRIM44; LEATHER PACKAGE,IVORY,TRIM44; POWER & LEATHER PACKAGE,IVORY,TRIM44
main67654-AC020-C0iMCX10..4FC..XL..USA; MCX10..XLS..CND;MCX10..4HC..XL..USA; MCX10..XLS..USA199409-199908
BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#; POWER & LEATHER PACKAGE,BLACK,TRIM2#
main67654-AC020-E0iMCX10..4FC..XL..USA; MCX10..4FC..XLS..USA; MCX10..4HC..XL..USA; MCX10..4HC..XLS;MCX10..4FC..XLS..CND199709-199908
DK. ROSE,TRIM4#; DK. ROSE,TRIM43; LEATHER PACKAGE,DK. ROSE,TRIM43; POWER & LEATHER PACKAGE,DK. ROSE,TRIM43
ADOBE,TRIM42; LEATHER PACKAGE,ADOBE,TRIM4#; POWER & LEATHER PACKAGE,ADOBE,TRIM4#
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
7401ARMREST & VISOR
9008016018
main90080-16018
9015940223
main90159-40223
9015960370
main90159-60370
9016840025
main90168-40025
9018904200
main90189-04200
9018906121
main90189-06121
9090467026
main90904-67026
17 parts on this diagram · 2 diagrams in section
