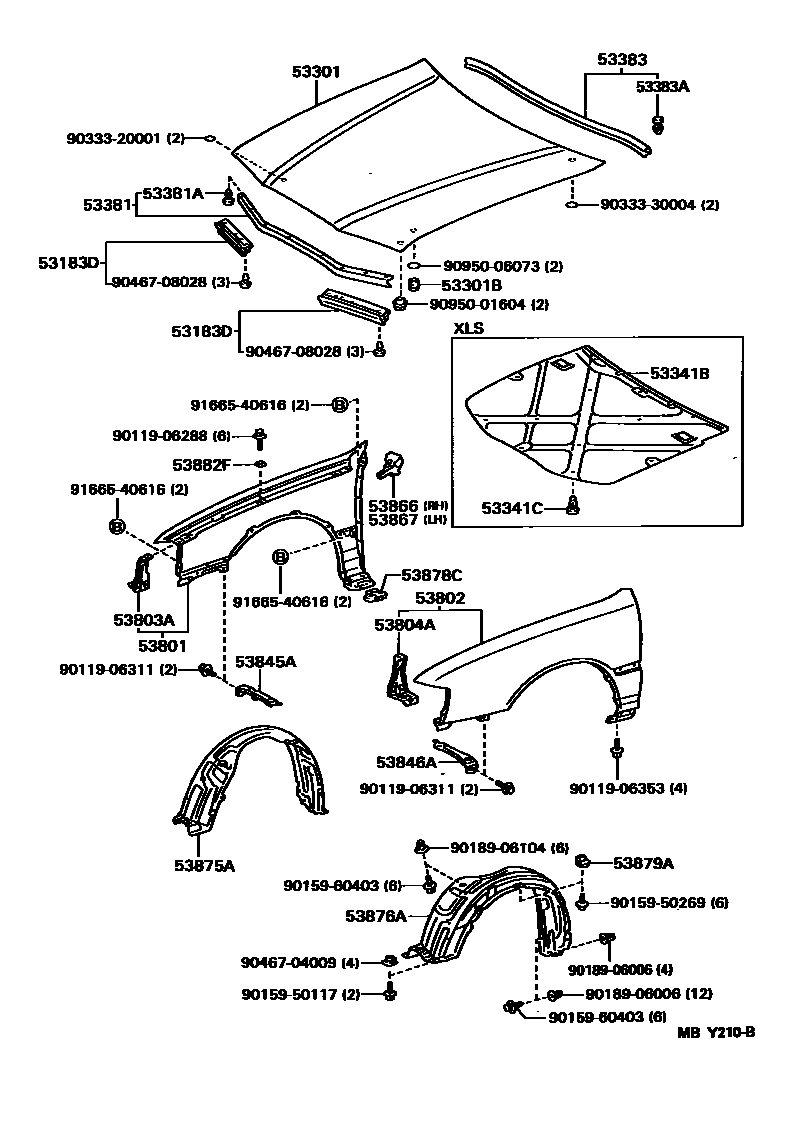

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH
53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882FSEAL, FRONT FENDER
9011906288
main90119-06288
9011906311
main90119-06311
9011906353
main90119-06353
9015950117
main90159-50117
9015950269
main90159-50269
9015960403
main90159-60403
9018906006
main90189-06006
9018906104
main90189-06104
9033320001
main90333-20001
9033330004
main90333-30004
9046704009
main90467-04009
9046708028
main90467-08028
9095001604
main90950-01604
9095006073
main90950-06073
9166540616
main91665-40616
37 parts on this diagram · 1 diagram in section
