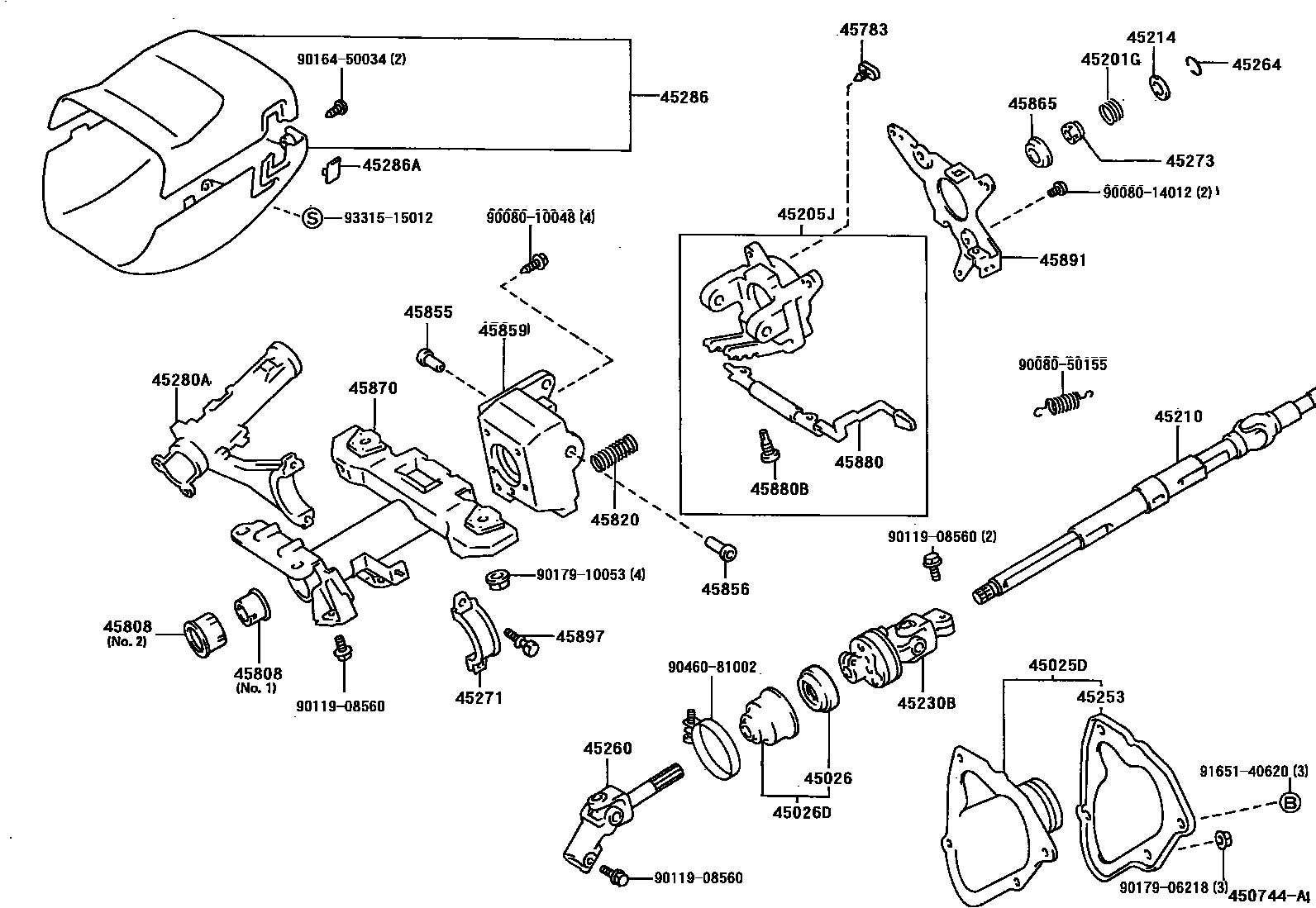

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45214RETAINER, MAIN SHAFT SPRING
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45264RING, STEERING COLUMN, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BLACK,TRIM2#
DK.ROSE,TRIM41
DK.ADOBE,TRIM4#
ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
BLACK,TRIM2#
DK.ROSE,TRIM41
DK.ADOBE,TRIM4#
ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
45286ACOVER, STEERING COLUMN, NO.2
BLACK,TRIM2#
DK.ROSE,TRIM41
ADOBE,TRIM4#
ROSE STONE,TRIM4#
SANDAL WOOD,TRIM4#
45783STOPPER, TILT STEERING, NO.1
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
NO.1
NO.1
NO.2
45820SPRING ASSY, TILT STEERING SUPPORT
45855BOLT, TILT STEERING, NO.1
45856BOLT, TILT STEERING, NO.2
45859SUPPORT, TILT STEERING HOUSING
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
45880LEVER ASSY, STEERING TILT
45880BSCREW(FOR STEERING TILT LEVER)
45891BRACKET, TURN SIGNAL
45897BOLT, STEERING LOCK SET
9008010048
main90080-10048
9008014012
main90080-14012
9008050155
main90080-50155
9011908560
main90119-08560
9016450034
main90164-50034
9017906218
main90179-06218
9017910053
main90179-10053
9046081002
main90460-81002
9165140620
main91651-40620
9331515012
main93315-15012
38 parts on this diagram · 2 diagrams in section
