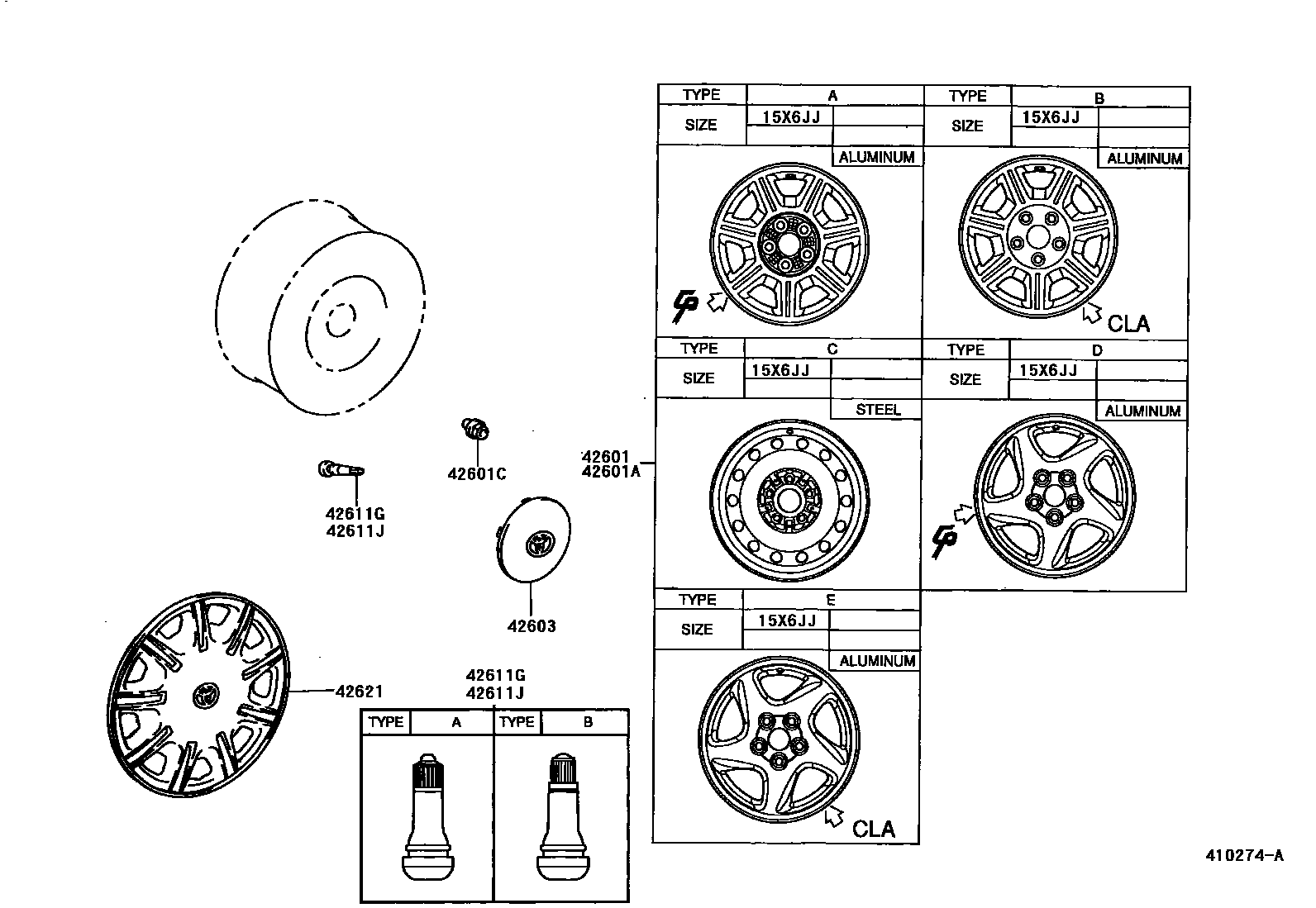

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-06030×4iMCX10..XL;MCX10..4FC..XLS..USA199811

15X6JJ,TYPE C:REFER TO ILLUSTRATION

main42611-07010×4iMCX10..XL;MCX10..4FC..XLS..USA199409-199608

15X6JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-07020×4iMCX10..XL;MCX10..4FC..XLS..USA199409-199608

15X6JJ,TYPE B:REFER TO ILLUSTRATION

main42611-AC010×4iMCX10199608

15X6JJ,TYPE D:REFER TO ILLUSTRATION

main42611-AC020×4iMCX10199608

15X6JJ,TYPE E:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-06030iMCX10199409

15X6JJ,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90080-17035×20iMCX10..XL;MCX10..4FC..XLS..USA199811

main90080-17036×20iMCX10199608

ALUMINUM WHEEL

main90080-17097×20iMCX10..XL; MCX10..XLS199409-199608

ALUMINUM WHEEL

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-AA020×4iMCX10199608

main42603-AC010×4iMCX10199409-199608

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4iMCX10199409

TYPE A:REFER TO ILLUSTRATION

main90080-45006×4iMCX10199409

TYPE B:REFER TO ILLUSTRATION

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001iMCX10199409

TYPE A:REFER TO ILLUSTRATION

main90080-45006iMCX10199409

TYPE B:REFER TO ILLUSTRATION

42621CAP, WHEEL

main42621-AC010×4iMCX10..XL199409

7 parts on this diagram · 3 diagrams in section
