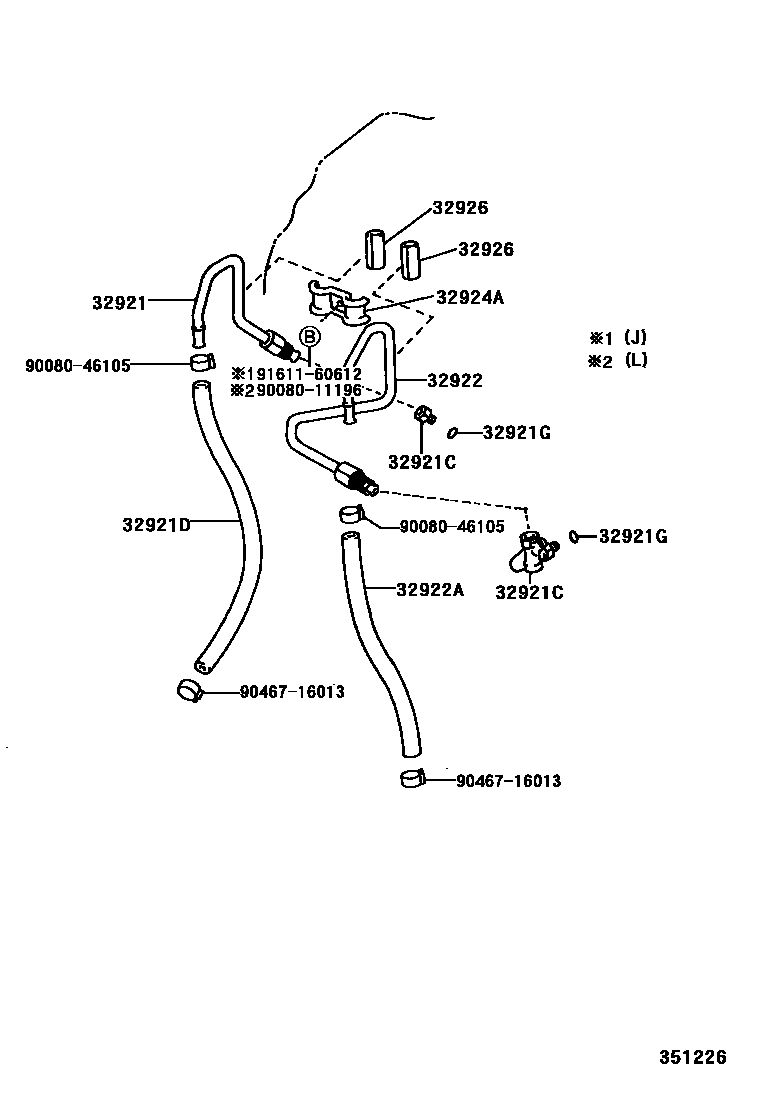

OIL COOLER & TUBE (ATM)

0001 1A541E 0002 1A541E,AIR COOLING OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32921-06060iMCX10199409

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iMCX10199608

OUTLET

main32901-32060iMCX10199409-199608

OUTLET

main90404-16031iMCX10199409

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-06020iMCX10199409

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iMCX10199409

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-06050iMCX10199409-199608

main32922-06060iMCX10199608

32922AHOSE(FOR OIL COOLER OUTLET)

main90080-44029iMCX10199608

main90080-44057iMCX10199409-199608

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12074iMCX10199409

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-04010×2iMCX10199409

L=36,ID=10

9008011196

main90080-11196

9008046105

main90080-46105

9046716013

main90467-16013

9161160612

main91611-60612

12 parts on this diagram · 2 diagrams in section
