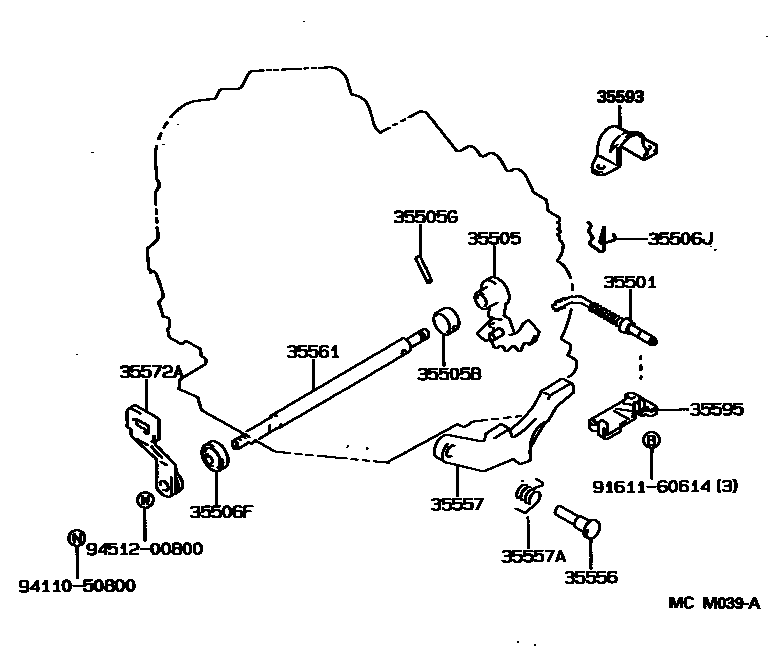

THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35561SHAFT, MANUAL VALVE LEVER
35572ALEVER, TRANSMISSION CONTROL SHAFT
35593SLEEVE, CAM GUIDE
35595BRACKET, PARKING LOCK PAWL
9161160614
main91611-60614
9411050800
main94110-50800
9451200800
main94512-00800
16 parts on this diagram · 2 diagrams in section
