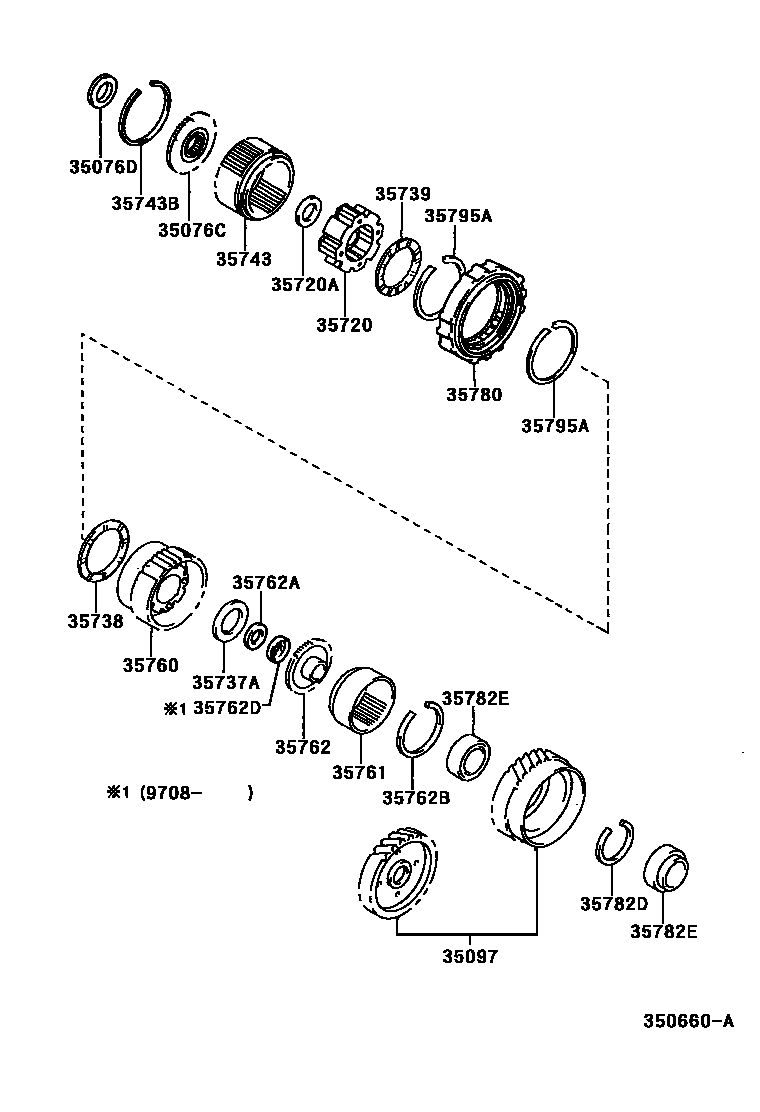

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-33010iMCX10199409-199609

main35076-33011iMCX10199609

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-31003iMCX10199409

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-33010iMCX10199409

35720GEAR ASSY, FRONT PLANETARY

main35720-32020iMCX10199409-199811

main35720-33010iMCX10199811

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-30008iMCX10199409-199609

main90374-30015iMCX10199609

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35738-33010iMCX10199409

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-33020iMCX10199409

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-33010iMCX10199409

35743GEAR, FRONT PLANETARY RING

main35743-33020iMCX10199409

35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-90002iMCX10199501

main90521-99014iMCX10199409-199501

35760GEAR ASSY, REAR PLANETARY

main35760-33020iMCX10199409

35761GEAR, REAR PLANETARY RING

main35761-32020iMCX10199409

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32021iMCX10199409-199708

main35762-33010iMCX10199708

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-22002iMCX10199409-199708

main90374-22006iMCX10199708

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-82002iMCX10199501

main90521-90001iMCX10199409-199501

35762DRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-33020iMCX10199708

35780CLUTCH ASSY, 1 WAY NO.2

main35780-33010iMCX10199409

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90521-67001iMCX10199409

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077iMCX10199409

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90520-99017iMCX10199409

20 parts on this diagram · 1 diagram in section
