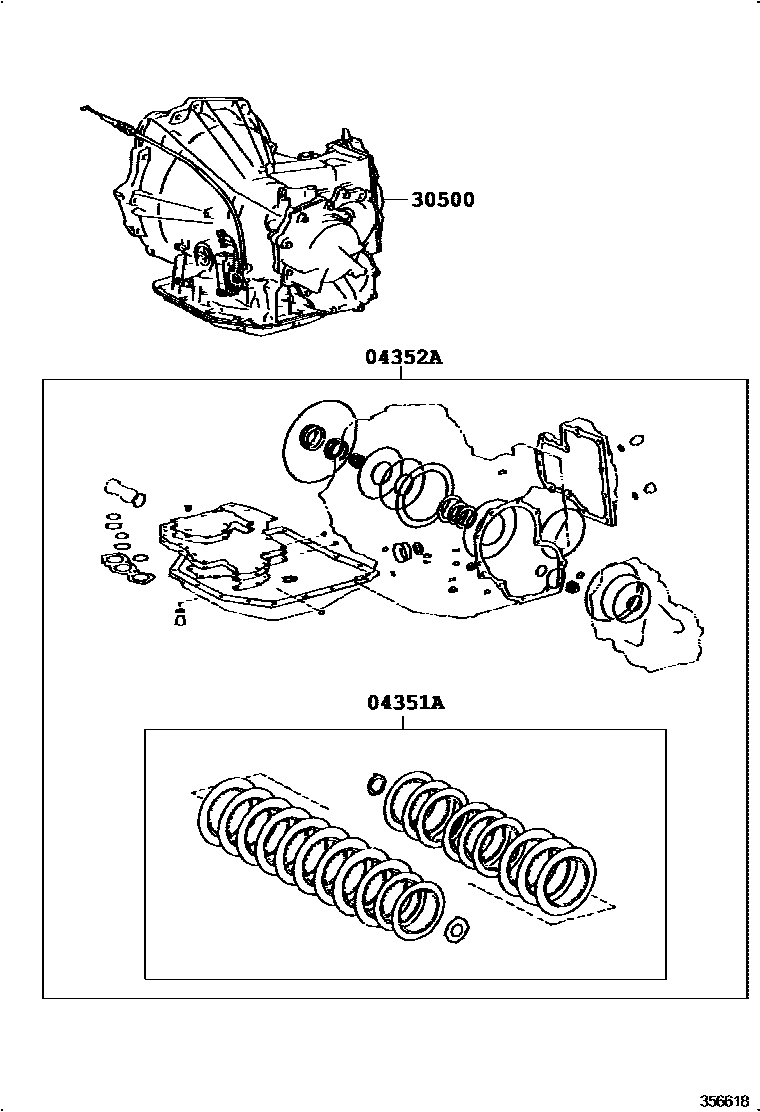

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33031iMCX10199409-199608

main04351-33032iMCX10199608

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-33031iMCX10199409-199608

main04352-33033iMCX10..4HC199709

main04352-33050iMCX10199608-199704

main04352-33051iMCX10199704-199709

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33092iMCX10..4FC199409-199501

main30500-33093iMCX10..4FC199501-199511

main30500-33094iMCX10..4FC199511-199608

main30500-41010iMCX10..4HC199409-199501

main30500-41011iMCX10..4HC199501-199511

main30500-41012iMCX10..4HC199511-199608

main30500-41030iMCX10..4FC199608-199709

main30500-41031iMCX10..4FC199709

main30500-41040iMCX10..4HC199608-199709

main30500-41041iMCX10..4HC199709

3 parts on this diagram · 1 diagram in section
