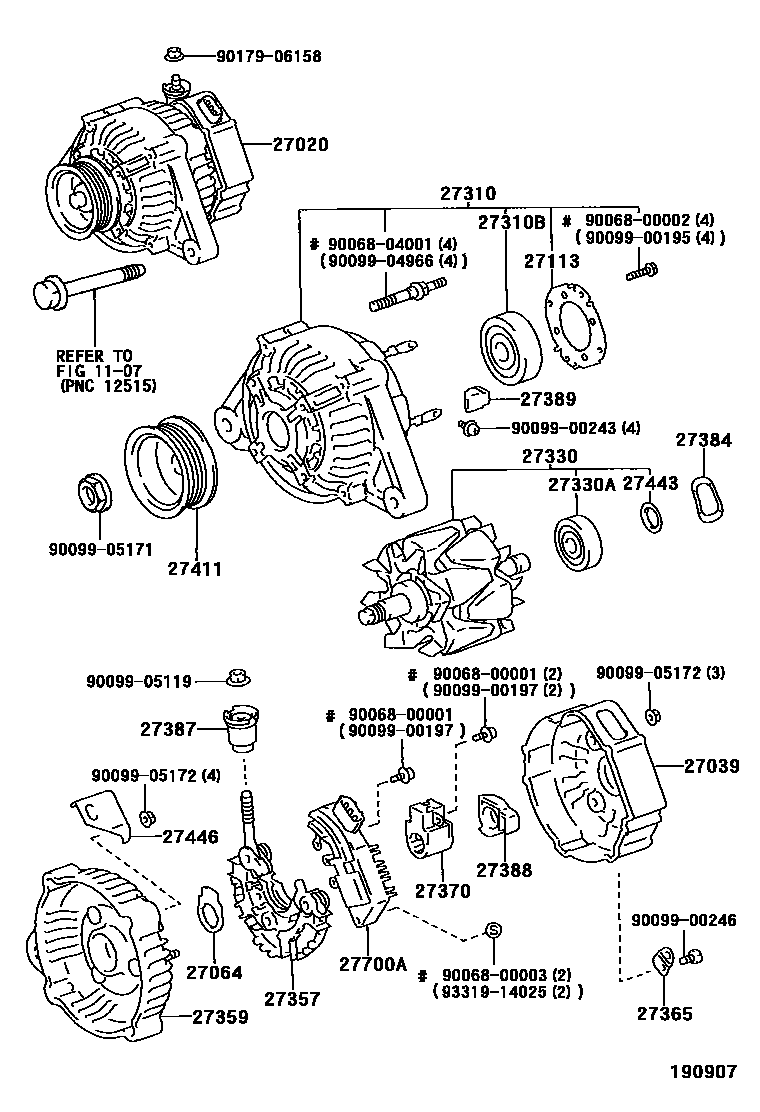

ALTERNATOR
1107
27020ALTERNATOR ASSY
12V 80A
12V 100A
27039COVER, ALTERNATOR REAR END
12V 100A
12V 80A
27064SEAL, ALTERNATOR PLATE
27113PLATE, BEARING RETAINER, ALTERNATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
12V 80A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
sub90099-10192
27330ROTOR ASSY, ALTERNATOR
12V 80A
12V 100A
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
12V 80A
27359FRAME, ALTERNATOR RECTIFIER END
12V 80A
27365PLATE, TERMINAL
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
12V 80A
12V 100A
27388COVER, ALTERNATOR BRUSH
sub27388-42010
27389INSULATOR, TERMINAL
sub27389-42010
27443COVER, ALTERNATOR BEARING
27446CLIP, ALTERNATOR CORD
27700AREGULATOR ASSY, GENERATOR
9006800001
main90068-00001
9006800002
main90068-00002
9006800003
main90068-00003
9006804001
main90068-04001
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
9331914025
main93319-14025
35 parts on this diagram · 2 diagrams in section
