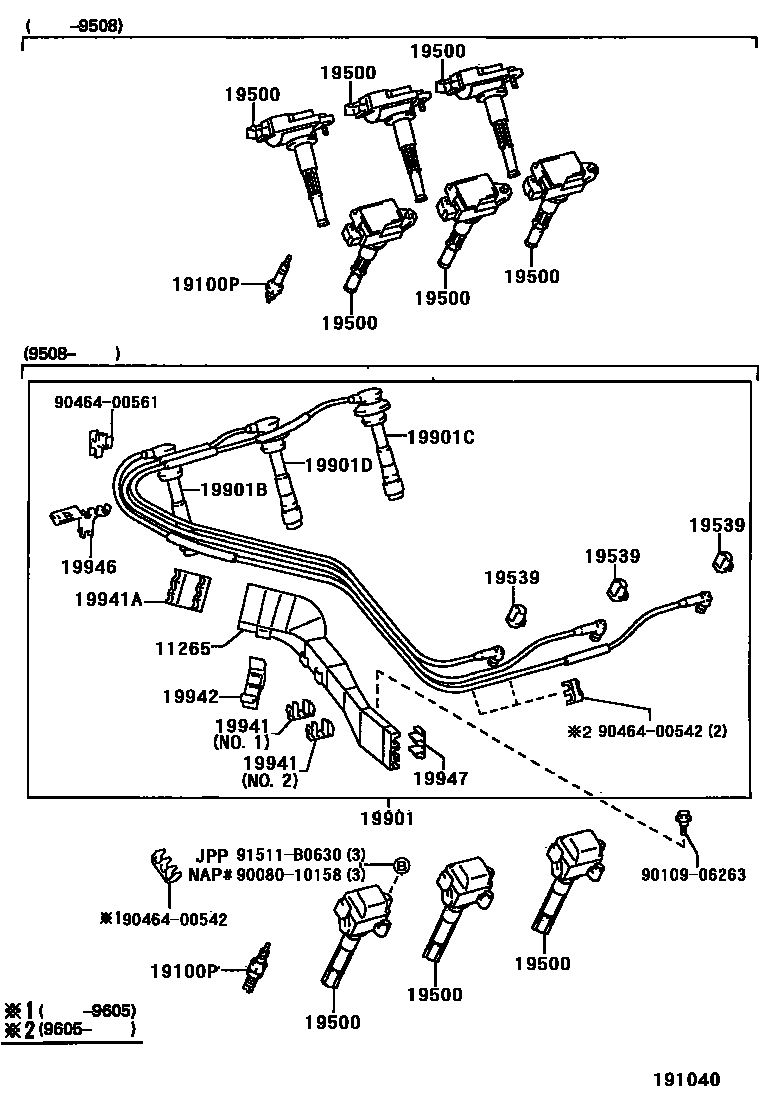

IGNITION COIL & SPARK PLUG / GLOW PLUG

11265COVER, COIL & RESISTIVE CORD, UPR

main11265-20010i1MZFE..MCX10199508-199605

main11265-20020i1MZFE..MCX10199605

19100PPLUG, SPARK

main90080-91116×6i1MZFE..MCX10199608

PK20TR11,(L)

main90919-01178×6i1MZFE..MCX10199409-199508

PK20R11

sub90919-01210

main90919-01194×6i1MZFE..MCX10199508

PK20TR11,(J)

main90919-01195×6i1MZFE..MCX10199508

BKR6EKPB11

19500COIL ASSY, IGNITION

main90080-19012×3i1MZFE..MCX10199708

(L)

main90919-02211×6i1MZFE..MCX10199409-199508

sub90919-02214

main90919-02215×3i1MZFE..MCX10199508-199708

19539HOLDER, RESISTIVE CODE, NO.4

main19539-11040×3i1MZFE..MCX10199508

19901CORD SET, COIL & SPARK, W/RESISTIVE

main19037-20010i1MZFE..MCX10199508-199605

main19037-20011i1MZFE..MCX10199605

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15308i1MZFE..MCX10199508

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15309i1MZFE..MCX10199508

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15310i1MZFE..MCX10199508

19941CLAMP, RESISTIVE CORD, NO.1

main19941-20010×2i1MZFE..MCX10199508-199605

main19941-20020i1MZFE..MCX10199605

NO.2

19941ACLAMP(FOR RESISTIVE CORD)

main19941-65040i1MZFE..MCX10199508

19942CLAMP, RESISTIVE CORD, NO.2

main19942-20010i1MZFE..MCX10199508

19946CLAMP, RESISTIVE CORD, NO.3

main19946-20010i1MZFE..MCX10199508

19947CLAMP, RESISTIVE CORD, NO.4

main19947-20010i1MZFE..MCX10199508

9008010158

main90080-10158

9010906263

main90109-06263

9046400542

main90464-00542

9046400561

main90464-00561

91511B0630

main91511-B0630

18 parts on this diagram · 1 diagram in section
