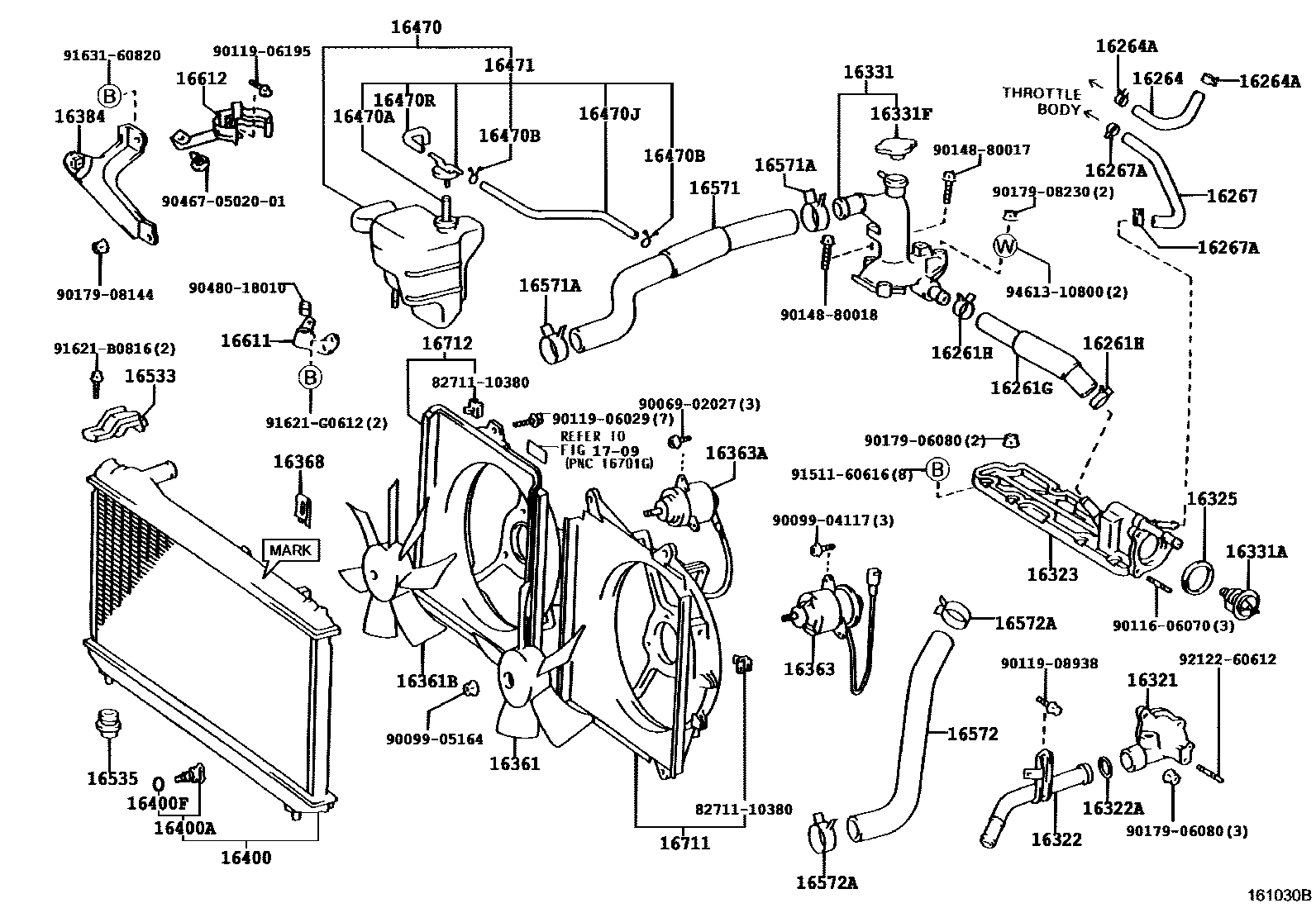

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
(L)
(J)
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
sub90467-28007
16264HOSE, WATER BY-PASS, NO.2
sub16264-20010
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16321INLET, WATER
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16368BRACKET, COOLING MOTOR
16384BRACKET, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
RADIATOR MARK=TK
RADIATOR MARK=T6
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=110)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
TYPE A
TYPE B
16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
TYPE A
TYPE B
16471CAP SUB-ASSY, RESERVE TANK
TYPE B
TYPE A
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
sub16535-07010
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37005
16611BRACKET, RADIATOR RESERVE TANK
16612BRACKET, RADIATOR RESERVE TANK, NO.2
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1709
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9006902027
main90069-02027
9009904117
main90099-04117
9009905164
main90099-05164
9011606070
main90116-06070
9011906029
main90119-06029
9011906195
main90119-06195
9011908938
main90119-08938
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908144
main90179-08144
9017908230
main90179-08230
904670502001
main90467-0502001
9048018010
main90480-18010
9151160616
main91511-60616
91621B0816
main91621-B0816
91621G0612
main91621-G0612
9163160820
main91631-60820
9212260612
main92122-60612
9461310800
main94613-10800
61 parts on this diagram · 3 diagrams in section
