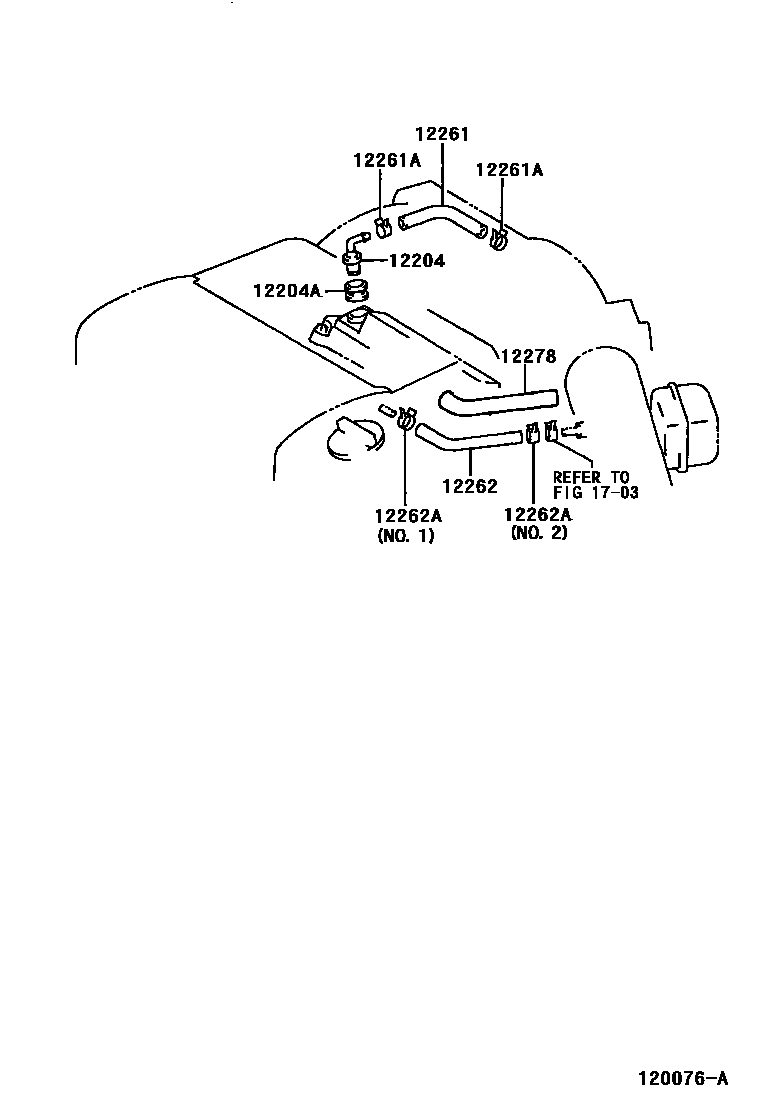

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-20010i1MZFE..MCX10199409-199608

main12204-20020i1MZFE..MCX10199608-199908

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1MZFE..MCX10199409

12261HOSE, VENTILATION

main12261-0A010i1MZFE..MCX10199409-199503

main12261-20010i1MZFE..MCX10199503-199708

sub12261-20011

main12261-20011i1MZFE..MCX10199708

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i1MZFE..MCX10199409

12262HOSE, VENTILATION, NO.2

main12262-0A010i1MZFE..MCX10199409-199801

sub12262-20010

main12262-0A040i1MZFE..MCX10199801

sub12262-20020

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17011i1MZFE..MCX10199409-199801

sub96134-51700

main90467-17011i1MZFE..MCX10199801

NO.1

sub96134-51700

main90467-19022i1MZFE..MCX10199801-199805

NO.2

main96134-41900i1MZFE..MCX10199805

NO.2

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0A020i1MZFE..MCX10199801

1703

8 parts on this diagram · 1 diagram in section
