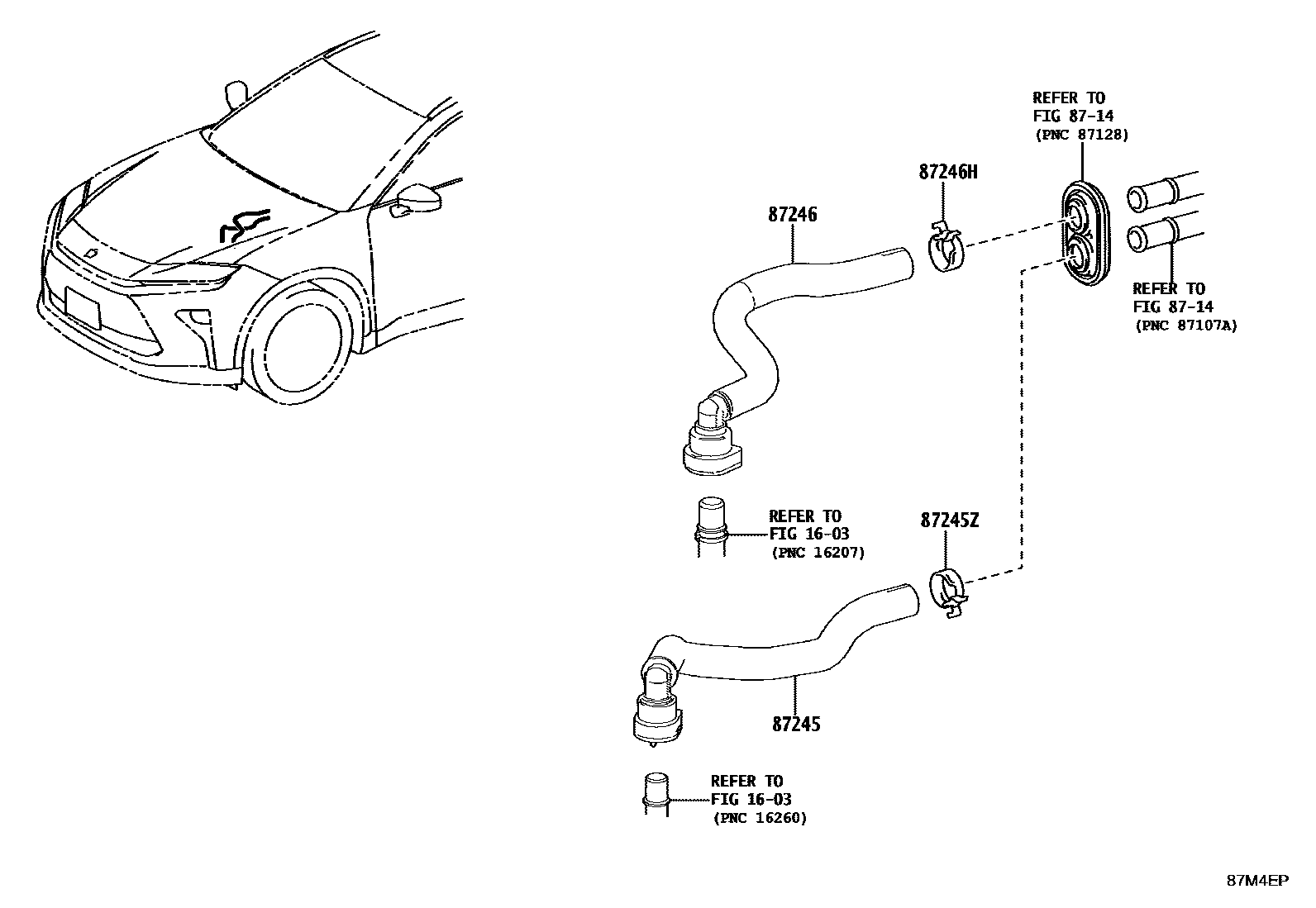

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-30810iAZSH38202406

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501iAZSH38202406

87246HOSE, HEATER WATER, OUTLET

main87209-30820iAZSH38202406

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96138-42501iAZSH38202406

6 parts on this diagram · 1 diagram in section
