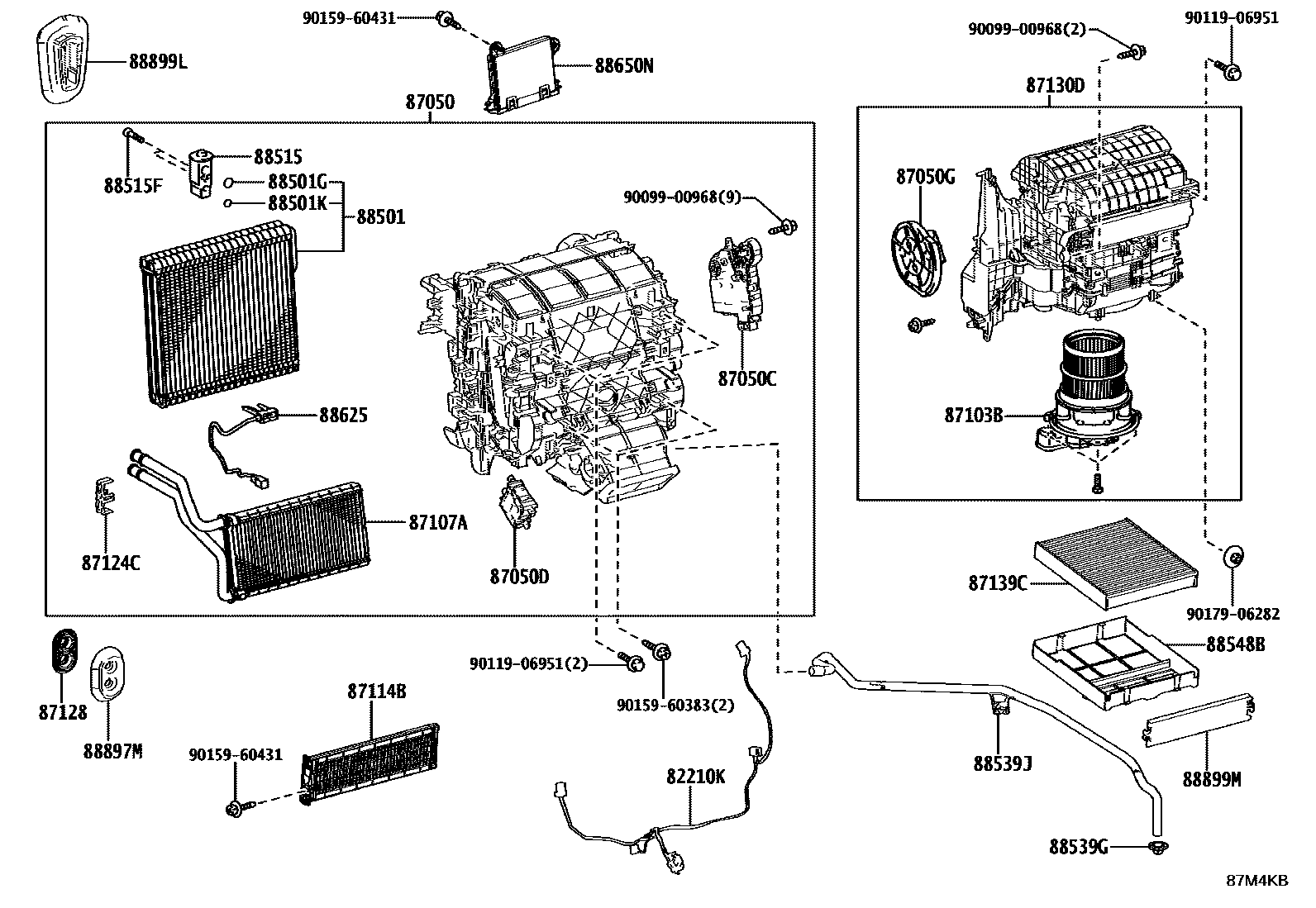

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-42050iAZSH38202406

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33F70iAZSH38202406

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iAZSH38202406

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48200iAZSH38202406

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-58050iAZSH38202406

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58080iAZSH38202406

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33130iAZSH38202406

87114BCOVER, HEATER

main87114-33050iAZSH38202406

87124CCLAMP, HEATER

main87124-33070iAZSH38202406

87128GROMMET, HEATER

main87128-28010iAZSH38202406

87130DBLOWER ASSY

main87130-47290iAZSH38202406

87139CFILTER, CLEAN AIR

main87139-76020iAZSH38202406

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33350iAZSH38202406

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAZSH38202406

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iAZSH38202406

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-33080iAZSH38202406

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAZSH38202406

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iAZSH38202406

88539JHOSE, DRAIN COOLER

main88539-30A60iAZSH38202406

88548BCASE, AIR FILTER

main88899-76020iAZSH38202406

88625THERMISTOR, COOLER, NO.1

main88620-28050iAZSH38202406

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-30030iAZSH38202406

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iAZSH38202406

88899LPARTS, COOLING UNIT

main88899-33080iAZSH38202406

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iAZSH38202406

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

30 parts on this diagram · 1 diagram in section
