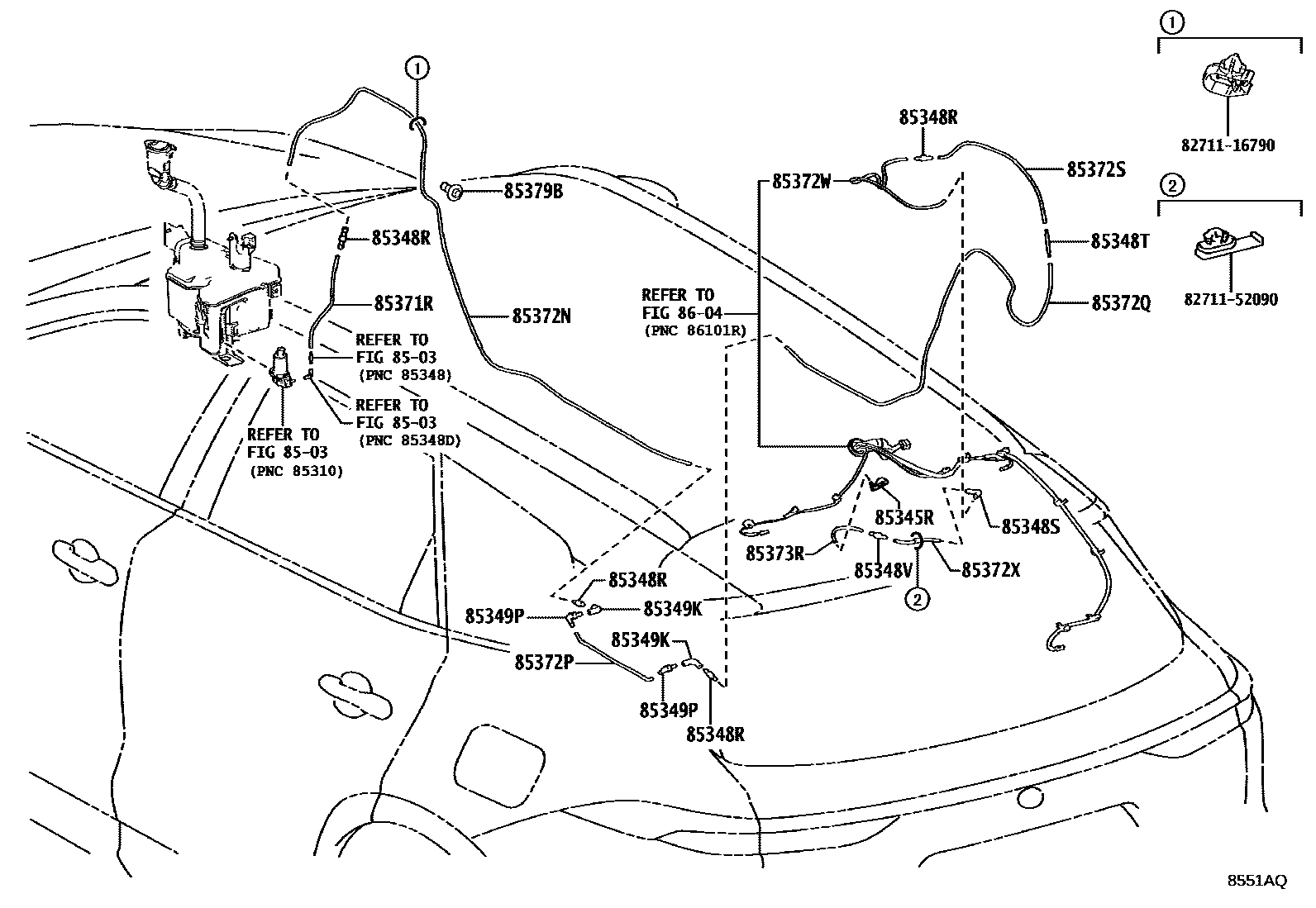

REAR WASHER

0001 1WITHOUT(PANORAMIC VIEW MONITO0002 1WITH(PANORAMIC VIEW MONITOR)

8503

85345RNOZZLE, REAR WASHER

main85391-30010iAZSH38202406

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×4iAZSH38202406

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iAZSH38..M202406

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-32150iAZSH38202406

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iAZSH38..M202406

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-14481×2iAZSH38202406

85349PJOINT, REAR WASHER ELBOW, NO.3

main85317-12230×2iAZSH38202406

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH38202406

L=1450(*H,L=270)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62264iAZSH38202406

L=3200(*H,L=2190)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62263iAZSH38202406

L=340

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62082iAZSH38202406

L=2000(*H,L=1890)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-62063iAZSH38202406

L=450

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iAZSH38202406

L=1450(*H,L=330)

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-62019iAZSH38..M202406

L=130

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAZSH38202406

L=1450(*H,L=150)

85379BGROMMET, WASHER, A

main85379-12850iAZSH38202406

8604

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

20 parts on this diagram · 2 diagrams in section
