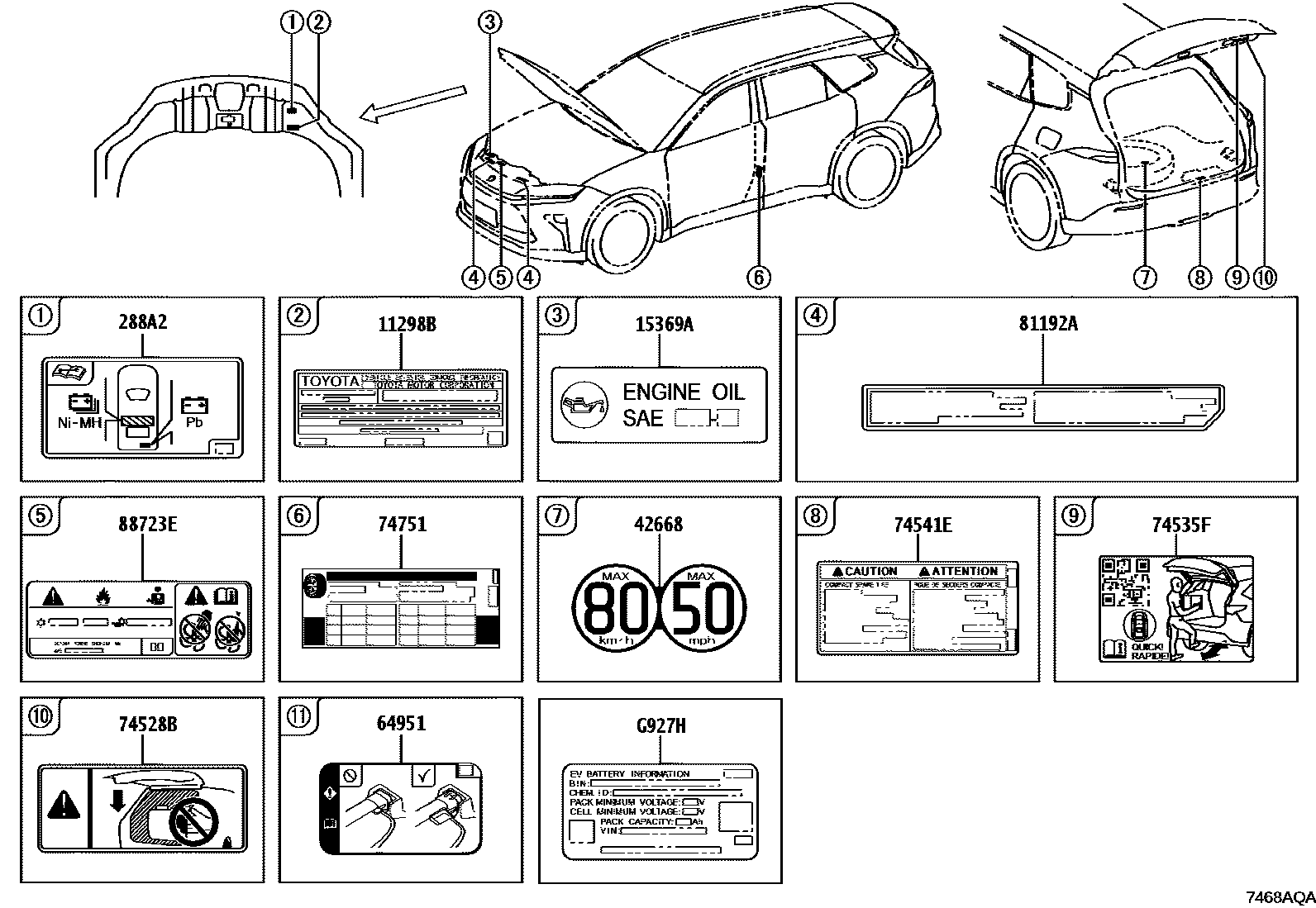

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-25340iA25..AZSH38202406

15369ALABEL, ENGINE OIL INFORMATION

main15369-25020iA25..AZSH38202406

288A2LABEL, BATTERY LOCATION

main288A2-25060iA25..AZSH38202406

42668LABEL, COMPACT SPARE TIRE CAUTION

main42668-42010

64951LABEL, TONNEAU COVER CAUTION, NO.1

main64951-30010

74528BLABEL, BACK DOOR CAUTION

main74528-47020iAZSH38202406

74535FLABEL, GATE HELPER INFORMATION

main74535-42100iAZSH38202406

74541EPLATE, COMPACT SPARE TIRE CAUTION

74751LABEL, TIRE PRESSURE INFORMATION

main42661-30U20iAZSH38..G202406

main42661-30V40iAZSH38..M202406

81192ASEAL, HEADLAMP

main81192-50010iAZSH38202406

88723ELABEL, COOLER SERVICE CAUTION

main7454A-30090iAZSH38202406

G927HLABEL, BATTERY NAME INFORMATION

mainG927H30010iAZSH38202501

12 parts on this diagram · 2 diagrams in section
