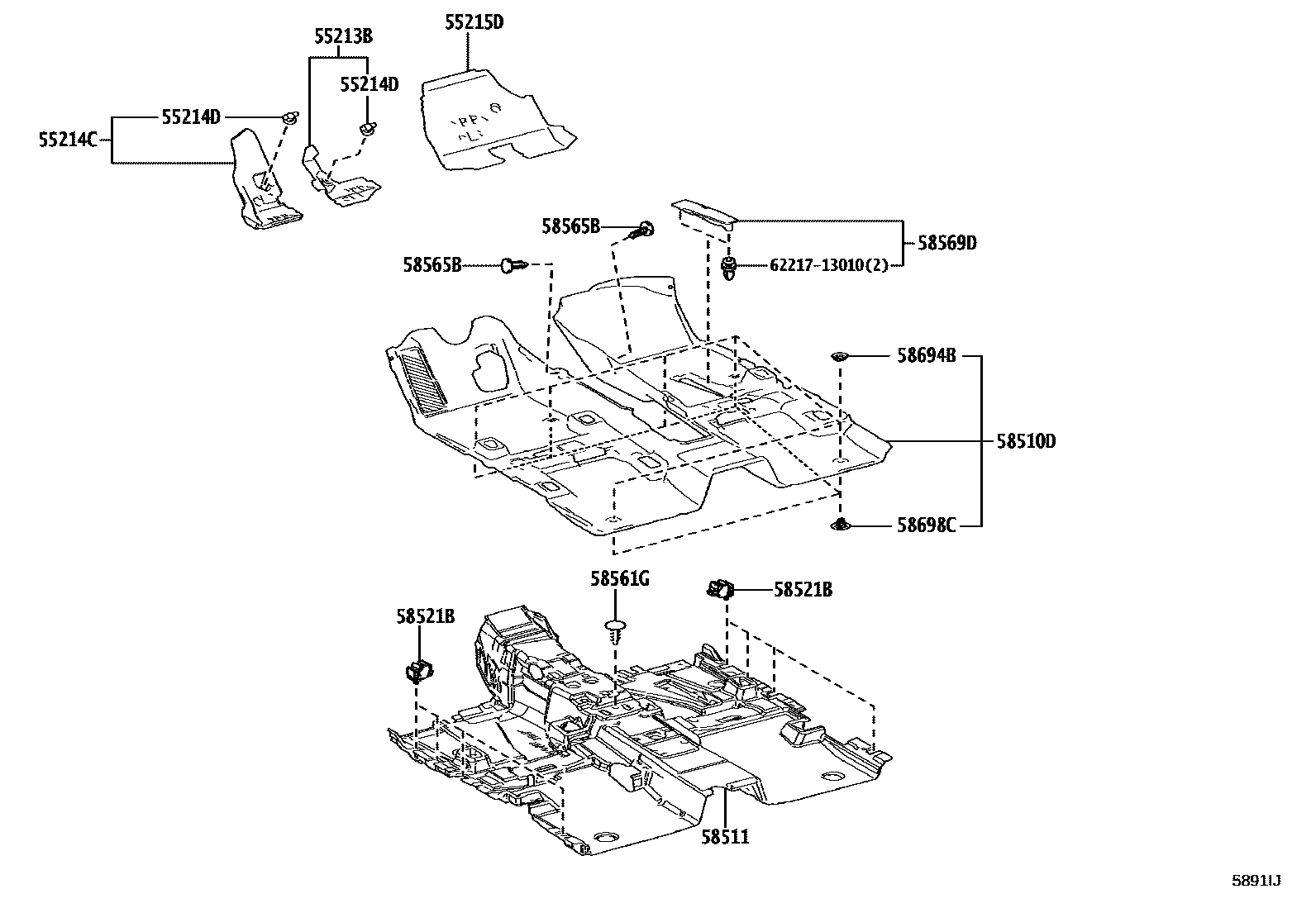

MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-30480iAZSH38202406

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-30150iAZSH38202406

55214DCLIP(FOR DASH PANEL INSULATOR PAD)

main90467-13079iAZSH38202406

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-30390iAZSH38202406

58510DCARPET ASSY, FLOOR, FRONT

main58510-30G10-C1iAZSH38..G; AZSH38..M202406

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

58511MAT, FLOOR, FRONT

main58511-30A50iAZSH38202406

58521BHOOK, FLOOR CARPET

main58521-33060×8iAZSH38202406

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-07042-C4iAZSH38202406

BLACK

58565BCLIP

main90467-05164-C7×2iAZSH38202406

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-30040-C0iAZSH38..G; AZSH38..M202406

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

58694BPLATE, MAT SET, UPPER

main58694-33010×6iAZSH38202406

58698CPLATE, MAT SET, LOWER

main58698-33010×6iAZSH38202406

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

13 parts on this diagram · 1 diagram in section
