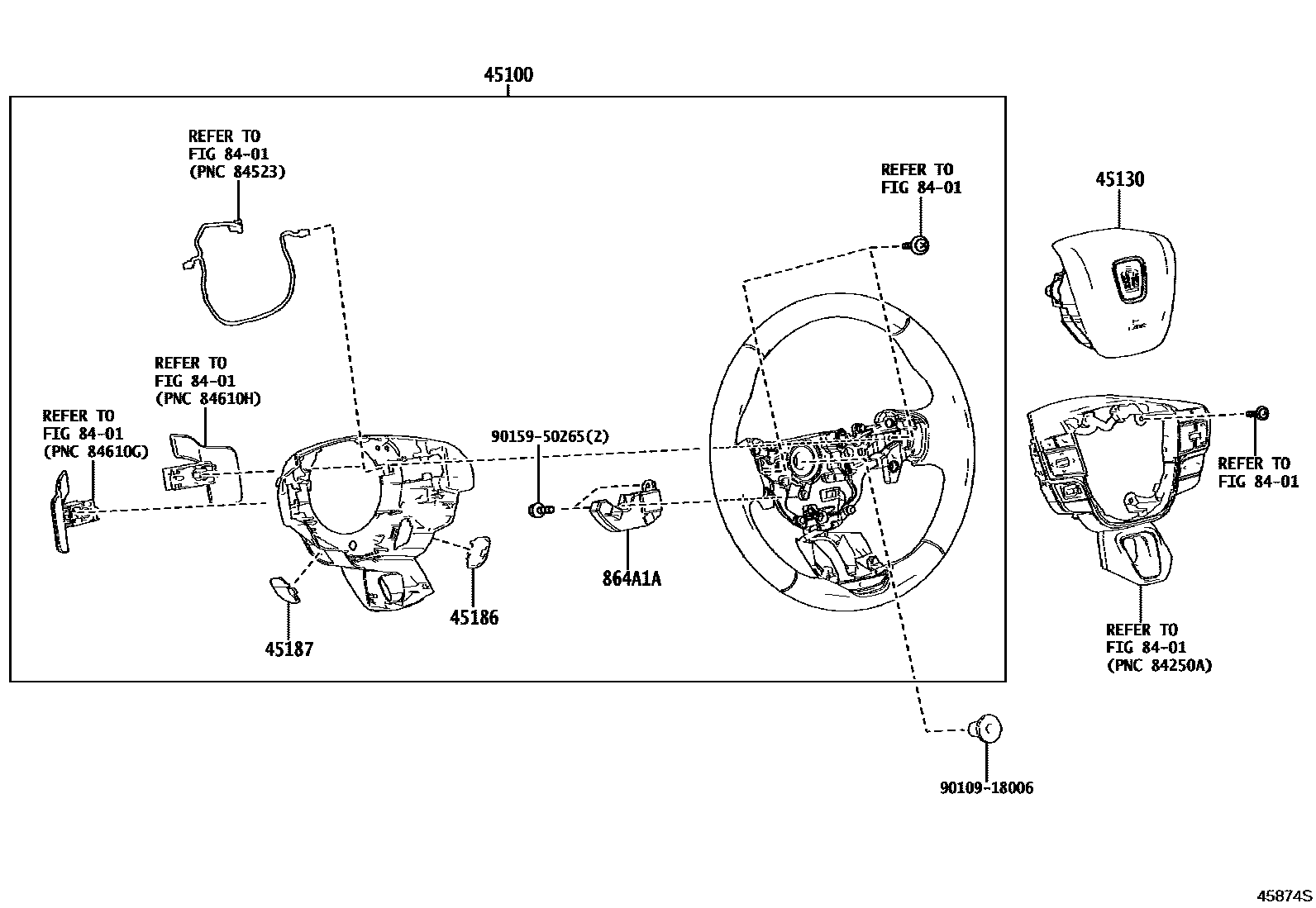

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM0#,2#,4#; 3-SPOKE,LEATHER,BLACK/LT.GRAY/BLACK,TRIM2#,4#
3-SPOKE,LEATHER,US DRIVER SUPPORT PACKAGE,BLACK/LT.GRAY/BLACK,TRIM0#,2#,4#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#
8401SWITCH & RELAY & COMPUTER
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
US DRIVER SUPPORT PACKAGE
9010918006
main90109-18006
9015950265
main90159-50265
8 parts on this diagram · 1 diagram in section
