OIL COOLER & TUBE (HEV OR BEV OR FCEV)

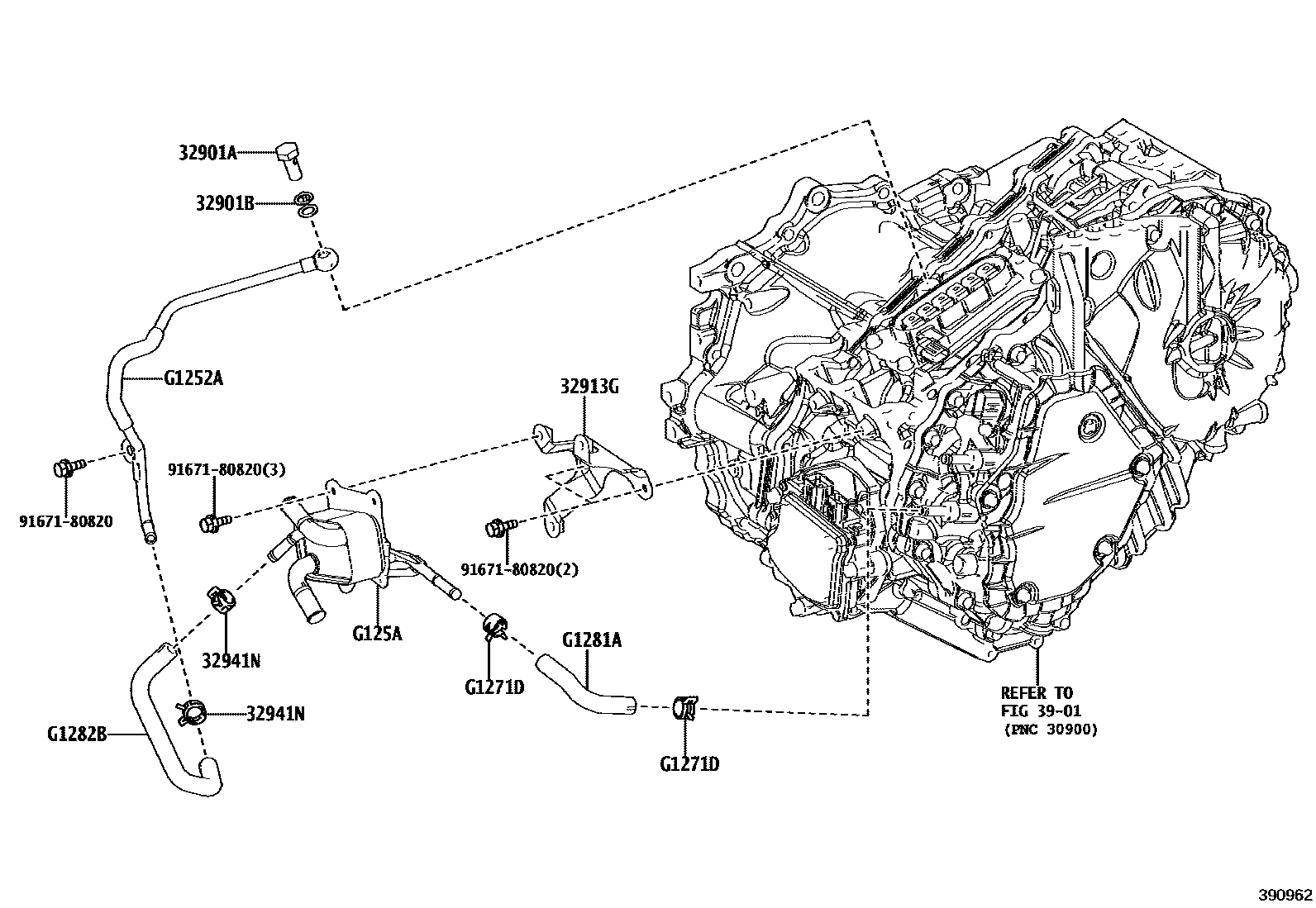

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i202406

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i202406

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-78030i202406

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2i202406

3901

G1252APIPE, MOTOR COOLING, NO.2

mainG125278010i202406

G125ACOOLER, MOTOR COOLING

mainG125A48020i202406

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004×2i202406

G1281AHOSE, MOTOR INLET

mainG128178010i202406

G1282BHOSE, MOTOR OUTLET

mainG128278010i202406

9167180820

main91671-80820

11 parts on this diagram · 1 diagram in section
