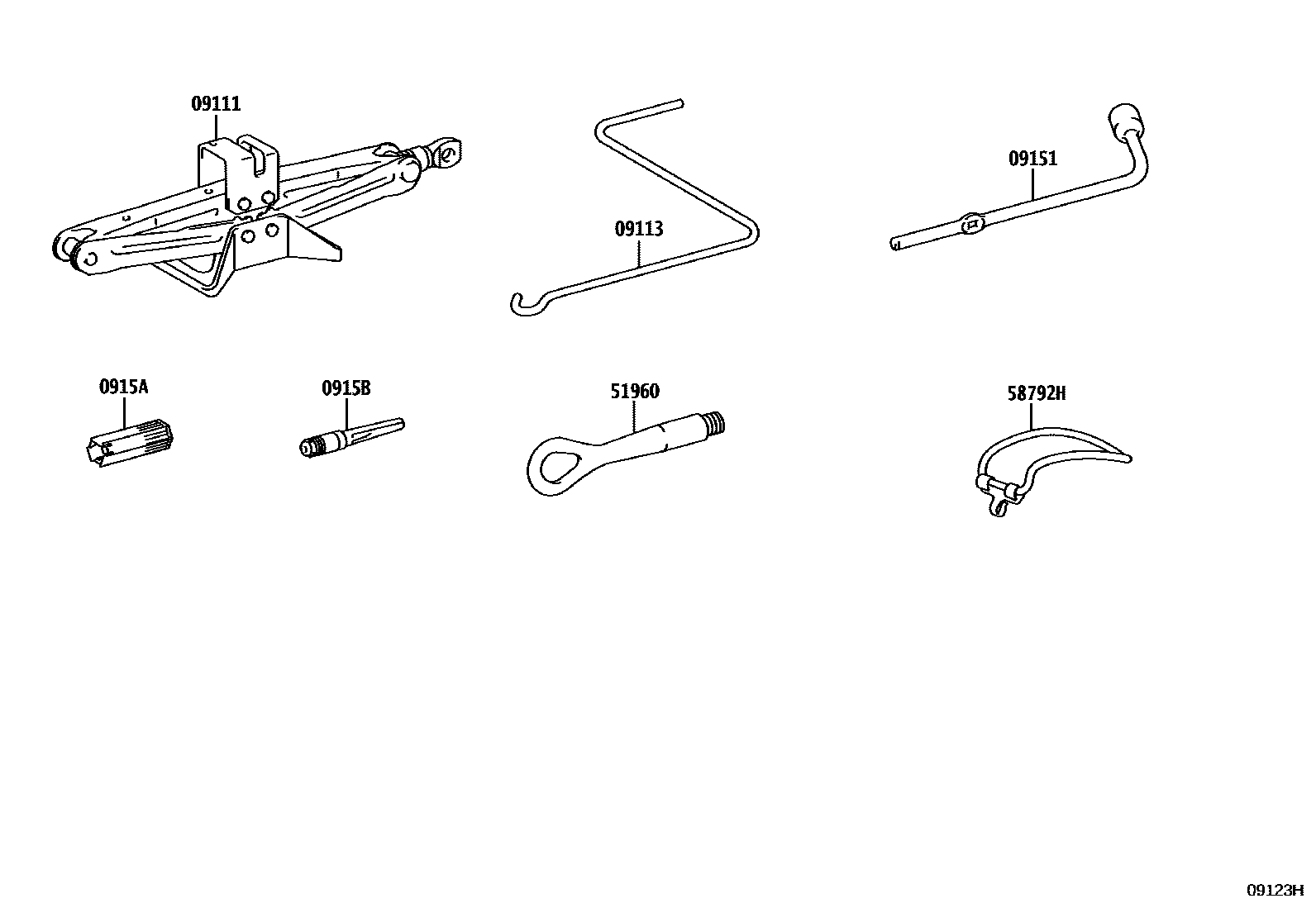

STANDARD TOOL

0001 1 0002 1

09111JACK SUB-ASSY

main09111-28150iAZSH38202406

SPARE TIRE-TEMPORARY(T165/80R17)

09113HANDLE, JACK

main09113-30060iAZSH38202406

SPARE TIRE-TEMPORARY(T165/80R17)

09151WRENCH, HUB BOLT BOX

main09151-78010iAZSH38202406

SPARE TIRE-TEMPORARY(T165/80D17)

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iAZSH38202406

SPARE TIRE-TEMPORARY(T165/80D17)

0915BPIN, WHEEL GUIDE

main0915B-53010iAZSH38202406

SPARE TIRE-TEMPORARY(T165/80D17)

51960HOOK ASSY, FRONT

main51961-42060iAZSH38202406

58792HSUPPORT, JACK CARRIER

main58792-48010iAZSH38202406

SPARE TIRE-TEMPORARY(T165/80R17)

7 parts on this diagram · 2 diagrams in section
