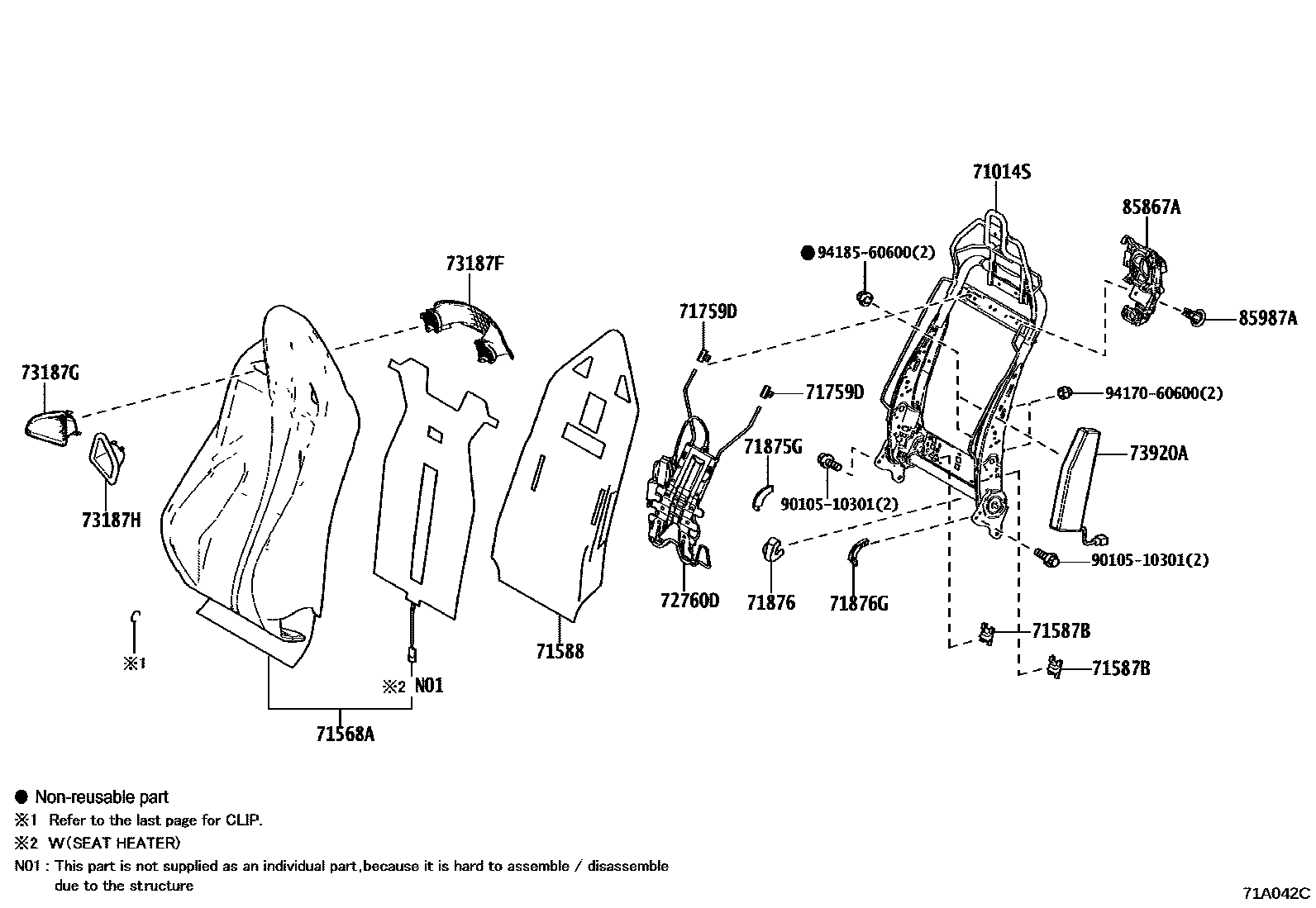

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
71568APAD, FRONT SEATBACK W/COVER, LH
BLACK/BLUE,TRIM2#
BLACK/BLUE,TRIM2#
BLACK/WHITE,TRIM0#
BLACK/RED,TRIM33,34,35
RED/BLACK,TRIM30,31,32
71587PROTECTOR, FRONT SEATBACK EDGE
71587BPROTECTOR, FRONT SEATBACK EDGE
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
71759DHOOK, FRONT SEATBACK, NO.2
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
BLACK,TRIM0#,1#,2#,3#,8#
71876COVER, RECLINING ADJUSTER INSIDE, LH
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
BLACK,TRIM0#,1#,2#,3#,8#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
73187FGUIDE, FRONT SEAT SHOULDER BELT, LH NO.1
SILVER,TRIM0#,1#,2#,3#,8#
73187GGUIDE, FRONT SEAT SHOULDER BELT, LH NO.2
SILVER,TRIM0#,1#,2#,3#,8#
73187HGUIDE, FRONT SEAT SHOULDER BELT, LH NO.3
SILVER,TRIM0#,1#,2#,3#,8#
73920AAIRBAG ASSY, FRONT SEAT, LH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
85987ACLIP
BLACK
9010510301
main90105-10301
9417060600
main94170-60600
9418560600
main94185-60600
20 parts on this diagram · 5 diagrams in section
