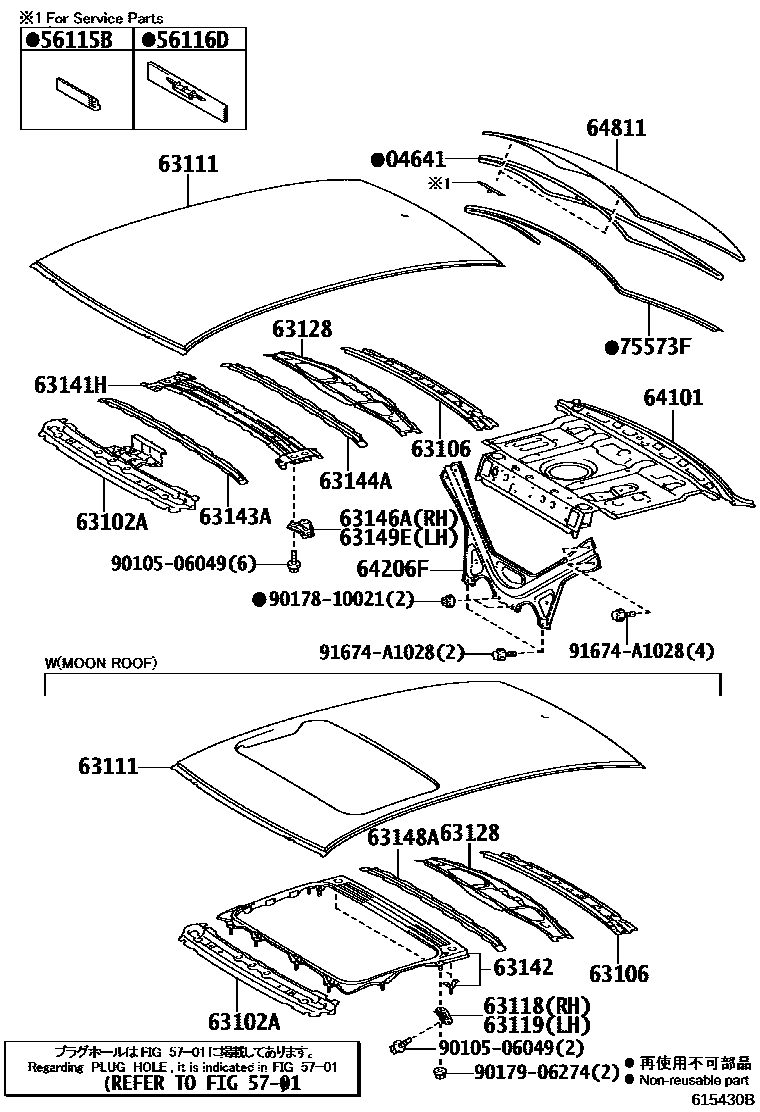

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

04641DAM KIT, BACK WINDOW GLASS

main56117-50140iURL10201510-202007

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iURL10201510-202007

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iURL10201510-202007

5701HOLE PLUG

→ Go to FIG 57-01

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30908iURL10201510-202007

main63102-30907iURL10201510-201909

MOON ROOF-WITHOUT

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30100iURL10201510-202007

63111PANEL, ROOF

main63111-30832iURL10201510-202007

main63111-30822iURL10201510-201909

MOON ROOF-WITHOUT

63118SUPPORT, ROOF PANEL, RH

main63118-30140iURL10201510-202007

63119SUPPORT, ROOF PANEL, LH

main63118-30140iURL10201510-202007

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30090iURL10201510-202007

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-30350iURL10201510-201909

MOON ROOF-WITHOUT

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30904iURL10201510-202007

63143AREINFORCEMENT, ROOF PANEL

main63143-30300iURL10201510-201909

MOON ROOF-WITHOUT

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30220iURL10201510-201909

MOON ROOF-WITHOUT

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30152iURL10201510-201909

MOON ROOF-WITHOUT

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30180iURL10201510-202007

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63146-30152iURL10201510-201909

MOON ROOF-WITHOUT

64101PANEL SUB-ASSY, UPPER BACK

main64101-30A62iURL10201510-202007

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30140iURL10201510-202007

64811GLASS, BACK WINDOW

main64801-30926iURL10201510-202007

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-30400iURL10201510-202007

9010506049

main90105-06049

9017810021

main90178-10021

9017906274

main90179-06274

91674A1028

main91674-A1028

25 parts on this diagram · 2 diagrams in section
