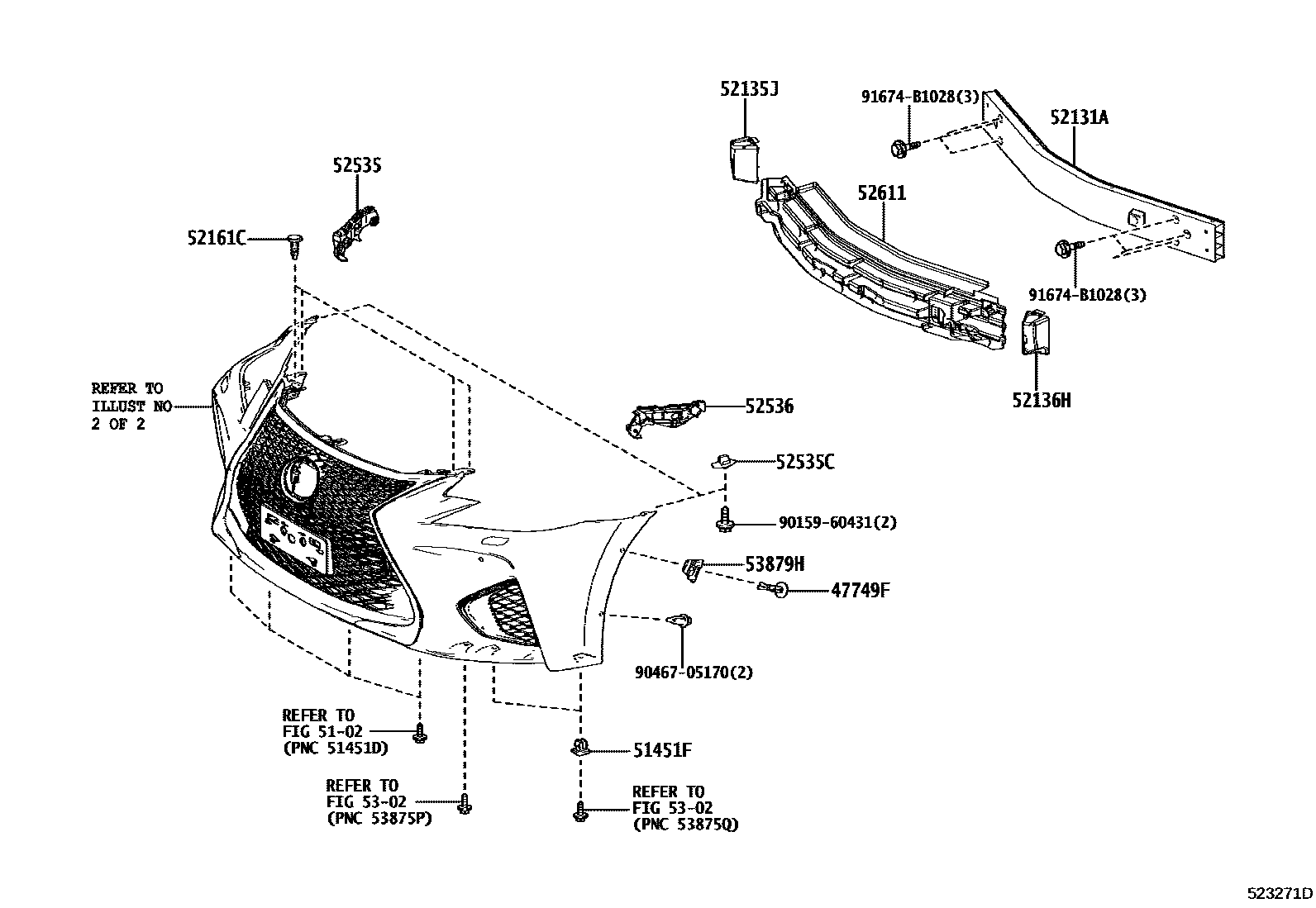

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-30030×2iURL10201611-202007

main47749-50090×2iURL10201510-201610

5102

51451FGROMMET, NO.1

main90189-06193×4iURL10201510-202007

52131AREINFORCEMENT, FRONT BUMPER

main52131-24100iURL10201510-202007

52135JREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH

main52135-24061iURL10201510-202007

52136HREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH

main52136-24051iURL10201510-202007

52161CPIECE, FRONT BUMPER

main52161-16010×4iURL10201510-202007

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30280iURL10201510-202007

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060×2iURL10201510-202007

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30270iURL10201510-202007

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24110iURL10201510-202007

5302

53879HRETAINER, FRONT FENDER LINER

main53879-30050×2iURL10201510-201610

main53879-30060×2iURL10201611-202007

9015960431

main90159-60431

9046705170

main90467-05170

91674B1028

main91674-B1028

16 parts on this diagram · 2 diagrams in section
