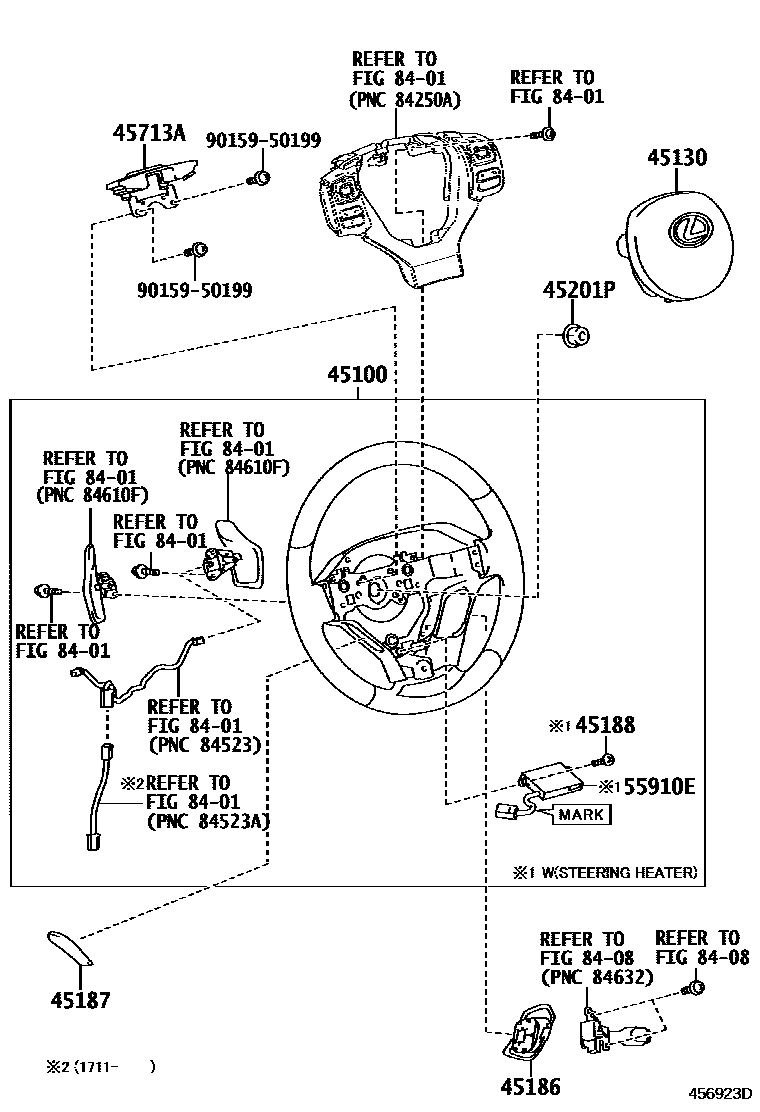

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-24391-C4supersedes 45100-24380-C4i201510-201709

3-SPOKE,LEATHER,STEERING WHEEL-F (W/HEATER),BLACK,TRIM1#,2#,3#

main45100-30F40-C0supersedes 45100-30F30-C0i201709-202007

3-SPOKE,URETHANE,STEERING WHEEL-F (W/HEATER),BLACK/BLUE/BLACK/ECRU,TRIM0#,1#,2#,3#

main45100-30F50-C0supersedes 45100-30F30-C0i201709-202007

3-SPOKE,URETHANE,PRE-COLLISION SYSTEM-WITH(GSP),BLACK/BLUE/BLACK/ECRU,TRIM0#,1#,2#,3#

main45100-30F60-C1supersedes 45100-30F30-C0i201709-202007

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(GSP)&STEERING WHEEL-F (W/HEATER),BLACK/BLUE/ECRU,TRIM0#,1#,2#,3#

main45100-30F90-C0i201805-201909

3-SPOKE,LEATHER,F 10TH ANNIVERSARY&PRE-COLLISION SYSTEM-WITH(GSP)&STEERING WHEEL-F10 ONLY(W/HEATER),BLACK/BLUE/WHITE/ECRU,TRIM8#

45130BUTTON ASSY, HORN

main45130-30750-C0i201510-202007

BLACK,TRIM0#,1#,2#,3#

main45130-30750-J0i201805-201909

BLUE,TRIM8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53030-C0i201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53020-C0i201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90168-40113×2i201510-202007

STEERING WHEEL-F (W/HEATER)

45201PNUT, STEERING WHEEL SET

main90179-12071i201510-202007

45713ADAMPER, STEERING SHAKE

main45713-53011i201510-202007

55910ECONTROL ASSY, STEERING WHEEL HEATER

main55910-30210i201709-202007

STEERING WHEEL-F (W/HEATER),MARK:TAPE=GRAY

main55910-53011i201510-201709

STEERING WHEEL-F (W/HEATER),MARK:TAPE=WHITE

8401

8408

9015950199

11 parts on this diagram · 2 diagrams in section
