DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4i201510-202007

42601WHEEL, DISC

main42611-30D40×2i201805-201905

19X9J,BLACK PAINT,GUAM & PUERTO RICO SPEC&TIRE & DISK WHEEL-F10 ONLY(BLACK),TYPE A:REFER ILLUST.

main42611-30D41×2supersedes 4261A-30471i201906-201909

19X9J,BLACK PAINT,TIRE & DISK WHEEL-F10 ONLY(BLACK),TYPE A:REFER ILLUST.

main42611-30F61×2supersedes 42611-30F90i201909-202007

19X9J,TIRE & DISK WHEEL-255+275/35R19 BUFFING,FR,T/P C:SEE ILLUST

main42611-30F71×2supersedes 42611-30F90i201909-202007

19X10J,TIRE & DISK WHEEL-255+275/35R19 BUFFING,RR,T/P C:SEE ILLUST

main42611-30G10i201805-201909

19X8.5J, #,HAWAII SPEC&TIRE & DISK WHEEL-F10 ONLY(BLACK),TYPE B:REFER ILLUST.

main42611-30K20×2i201805-201905

19X10J,BKACK PAINT,HAWAII SPEC&TIRE & DISK WHEEL-F10 ONLY(BLACK),TYPE A:REFER ILLUST.

main42611-30K21×2supersedes 4261A-30471i201906-201909

19X10J,BKACK PAINT,HAWAII SPEC&TIRE & DISK WHEEL-F10 ONLY(BLACK),TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-24790i201510-201511

19X8.5J, #,KOREA SPEC,TYPE D:REFER ILLUST.

main42611-30G10i201512-201908

19X8.5J, #,GUAM & PUERTO RICO SPEC,TYPE B:REFER ILLUST.

main42611-30G11i201909-202007

19X8.5J, #,HAWAII SPEC&TIRE & DISK WHEEL-255+275/35R19 BUFFING,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201510-201805

main90942-01115×20i201805-202007

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110×4i201510-202007

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30060×4i201510-202007

main42607-30071×4i201510-201609

KOREA SPEC&TIRE & DISK WHEEL-255+275/35R19 PAINT

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05028i201609-202007

GUAM & PUERTO RICO SPEC&TIRE & DISK WHEEL-255+275/35R19 BUFFING

42611UCAP, TIRE VALVE

main90942-05037×4i201510-202007

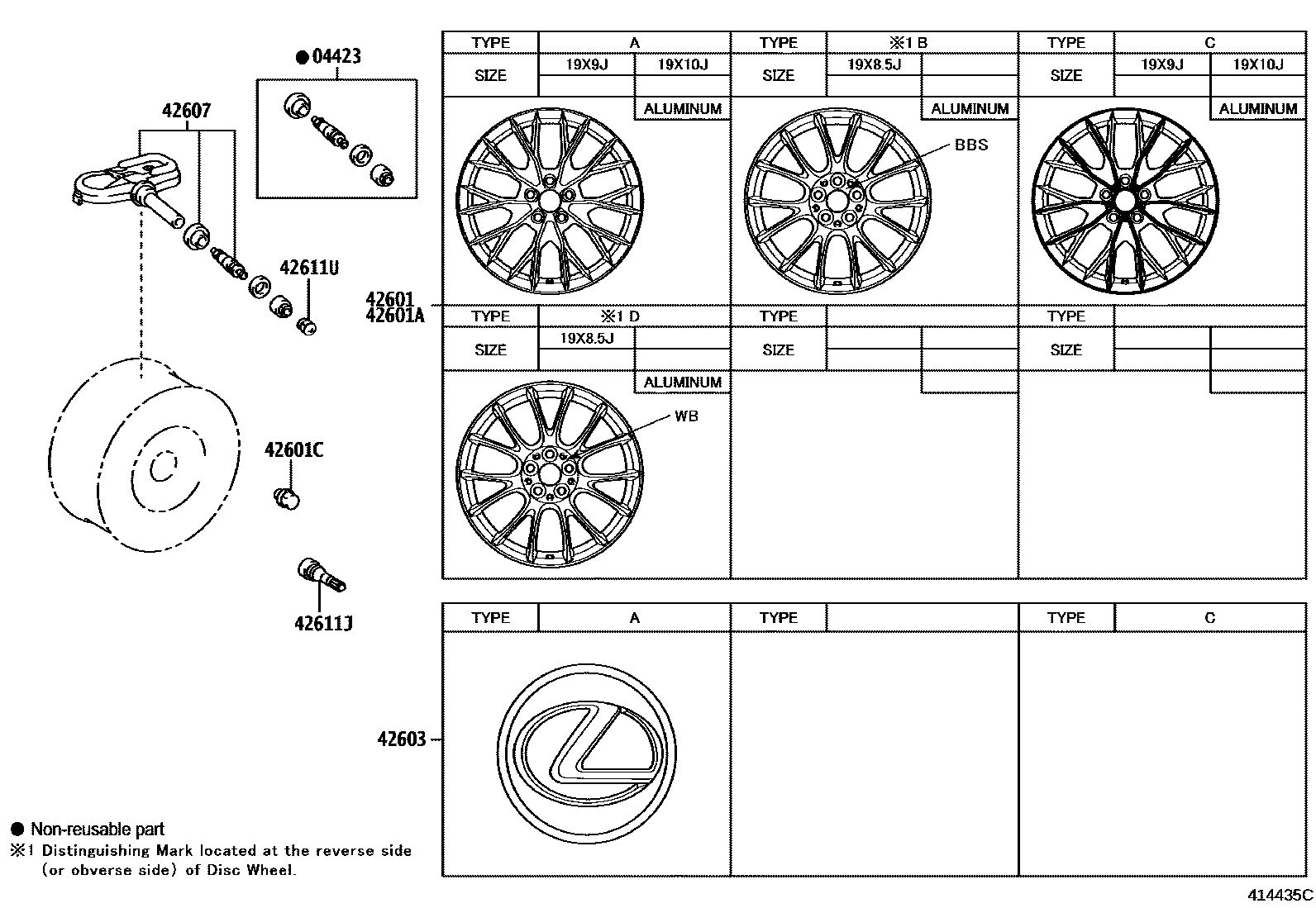

8 parts on this diagram · 2 diagrams in section
