Toyota 131410 — PROPELLER SHAFT & UNIVERSAL JOINT

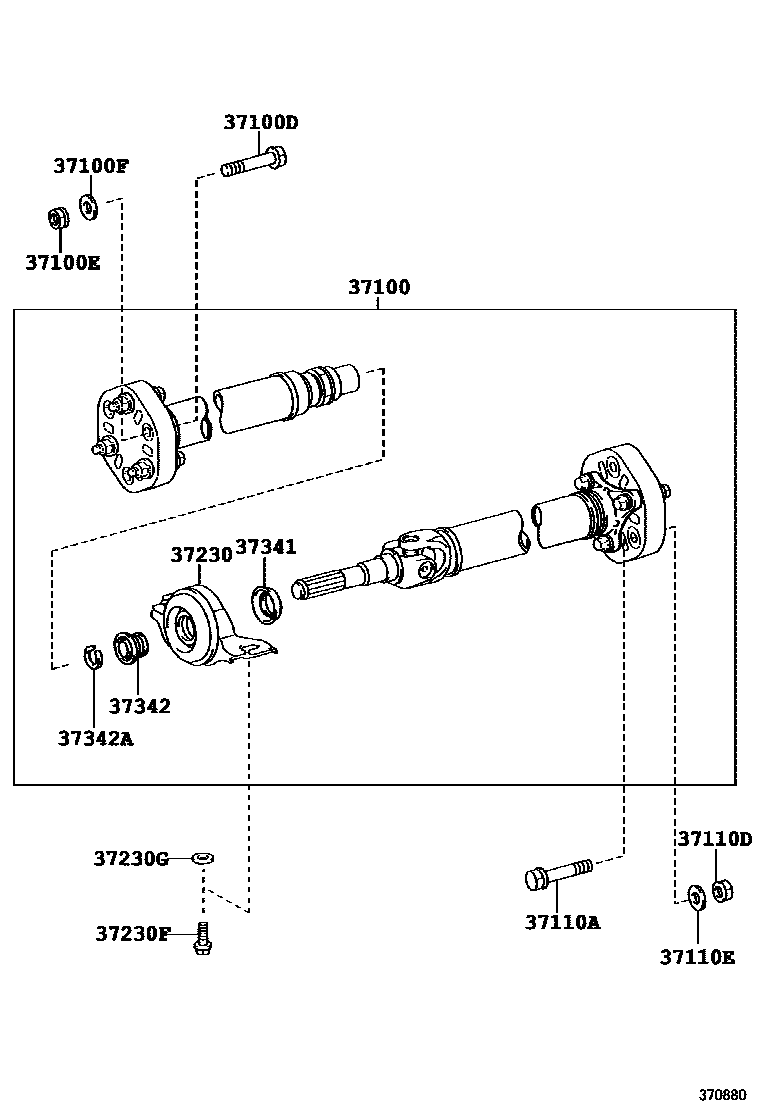

Parts diagram

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

37100DBOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37110ABOLT (FOR PROPELLER SHAFT)

37110DNUT (FOR PROPELLER SHAFT)

37110EWASHER (FOR PROPELLER SHAFT)

37230BEARING ASSY, CENTER SUPPORT, NO.1

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)

13 parts on this diagram · 1 diagram in section

PROPELLER SHAFT & UNIVERSAL JOINT for Toyota 131410

This section contains 13 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota 131410. Key components include: SHAFT ASSY, PROPELLER W/CENTER BEARING, BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), BOLT (FOR PROPELLER SHAFT).
