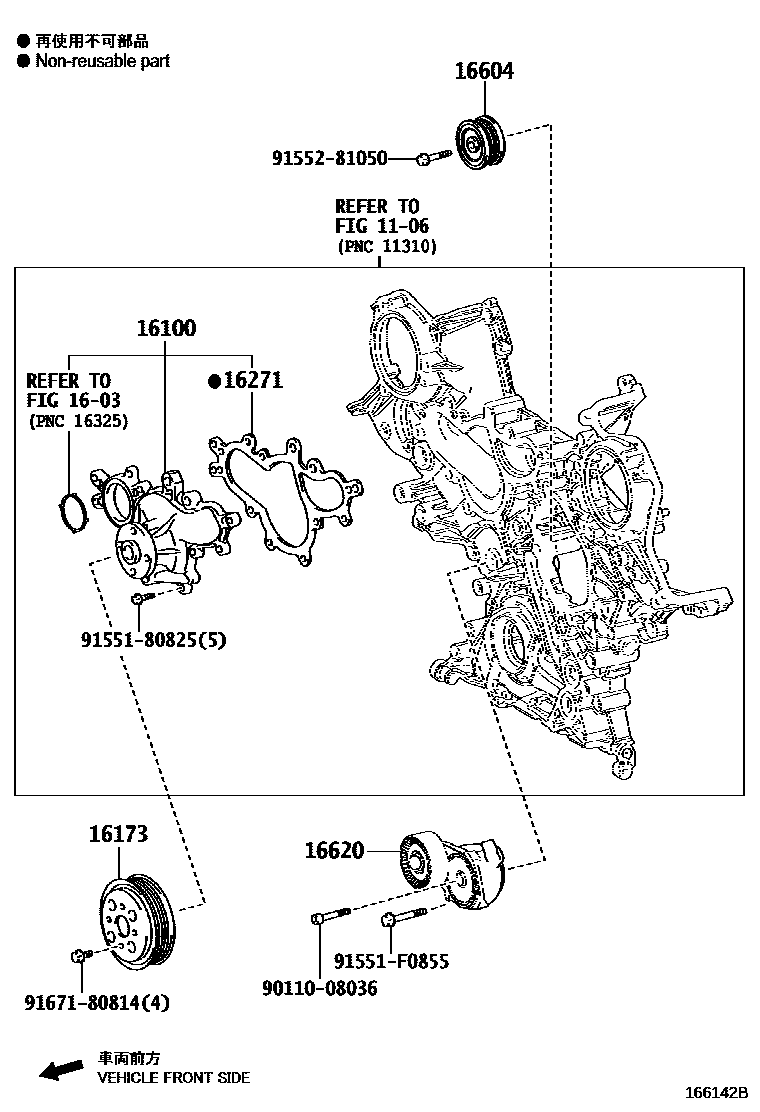

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39506i2URGSE..URL10201510-202007

16173PULLEY, WATER PUMP

main16173-38040i2URGSE..URL10201510-202005

main16173-38041i2URGSE..URL10202006-202007

16271GASKET, WATER PUMP

main16271-38010i2URGSE..URL10201510-202007

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-38020i2URGSE..URL10201510-202007

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W131i2URGSE..URL10201510-202007

9011008036

main90110-08036

9155180825

main91551-80825

91551F0855

main91551-F0855

9155281050

main91552-81050

9167180814

main91671-80814

12 parts on this diagram · 1 diagram in section
