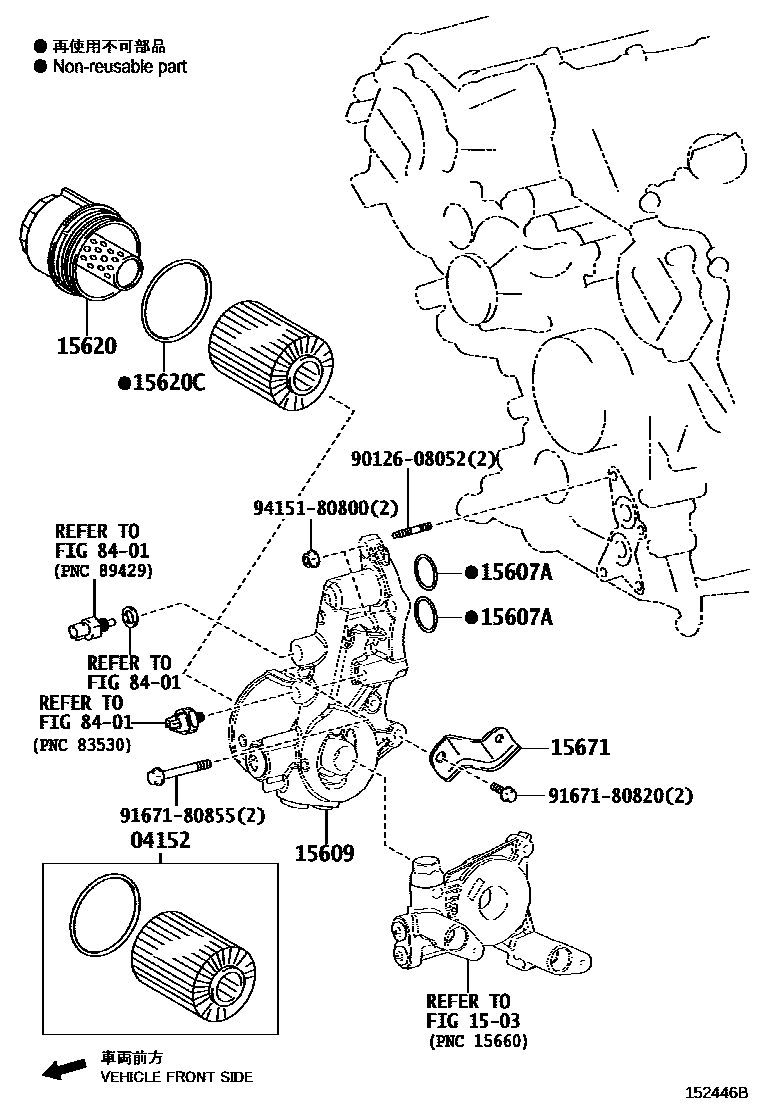

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-51010i2URGSE..URL10201510-202007

1503

15607ARING, O(FOR OIL FILTER BODY)

main96722-24030×2i2URGSE..URL10201510-202007

15609BRACKET SUB-ASSY, OIL FILTER

main15609-38021i2URGSE..URL10201510-202007

15620CAP ASSY, OIL FILTER

main15620-38030i2URGSE..URL10201510-202007

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2URGSE..URL10201510-202007

15671BRACKET, OIL FILTER

main15671-38020i2URGSE..URL10201510-201607

main15671-38030i2URGSE..URL10201608-202007

8401

9012608052

main90126-08052

9167180820

main91671-80820

9167180855

main91671-80855

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
