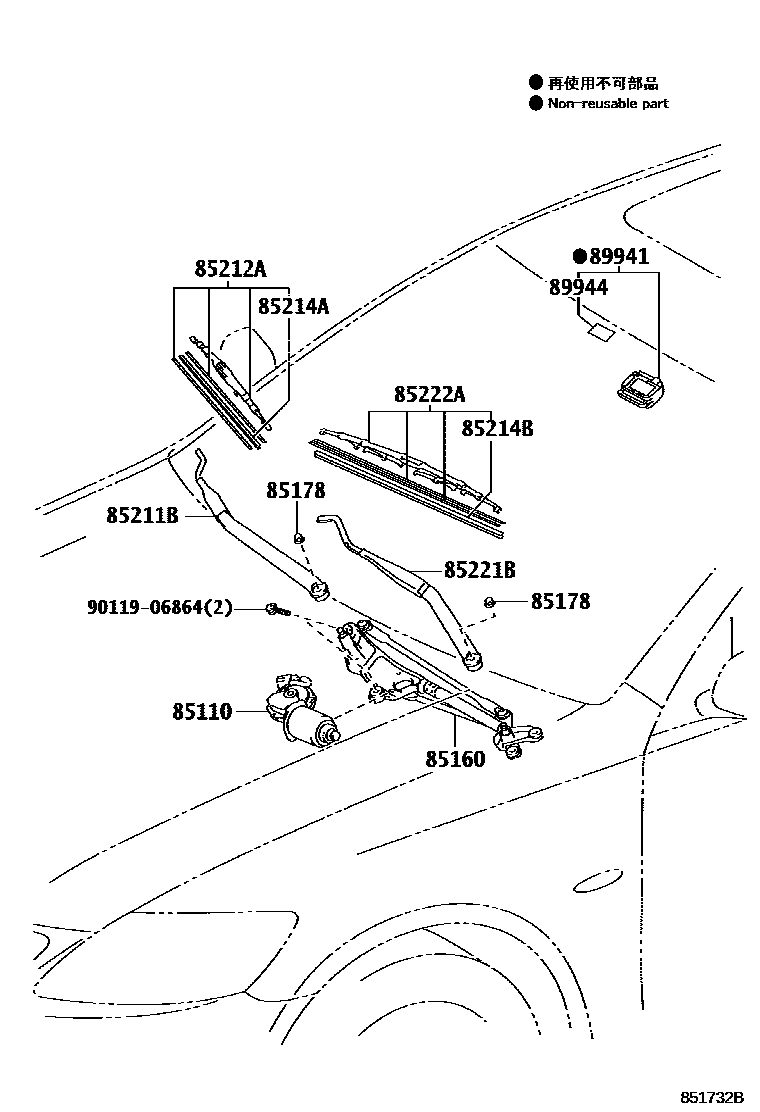

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30550iGWS191200602-200709

main85110-30590iGWS191200709

85160LINK ASSY, WINDSHIELD WIPER

main85150-30580iGWS191200709-200710

main85150-30640iGWS191200602-200709

main85150-30690iGWS191200710

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGWS191200602-200709

85211BARM, FRONT WIPER, RH

main85211-30730iGWS191200602-200709

85212ABLADE, FR WIPER, RH

main85212-33230iGWS191200602-200609

main85212-33231iGWS191200610-200709

85214ARUBBER, WIPER, RH

main85214-30390iGWS191200602-200709

85214BRUBBER, WIPER, LH

main85214-30380iGWS191200602-200709

85221BARM, FRONT WIPER, LH

main85221-30620iGWS191200602-200709

85222ABLADE, FR WIPER, LH

main85222-33240iGWS191200602-200609

main85222-33241iGWS191200610-200709

89941SENSOR, RAIN

main89941-30011iGWS191200602-200709

main89941-30012iGWS191200709-200808

main89941-30013iGWS191200809-200909

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-30014iGWS191200909

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-30020iGWS191200604-200709

main89944-50011iGWS191200602-200603

9011906864

main90119-06864

12 parts on this diagram · 1 diagram in section
