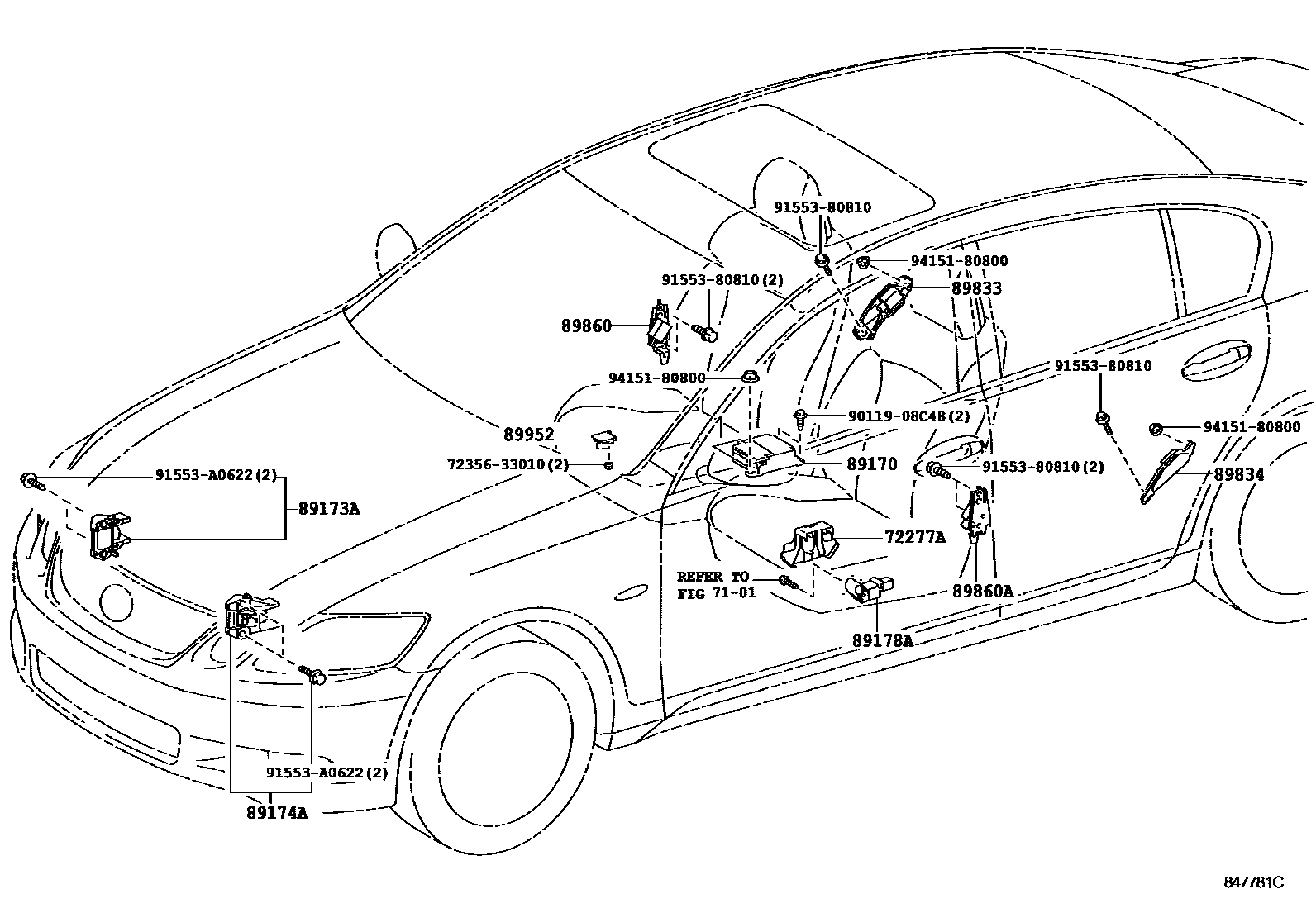

AIR BAG

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGWS191200602-200709

89170SENSOR ASSY, AIRBAG

main89170-30530supersedes 89170-30570iGWS191200602-200607

SRS AIR BAG-WITH(REAR SIDE)

main89170-30650supersedes 89170-30660iGWS191200607-200709

SRS AIR BAG-WITH(REAR SIDE)

main89170-30800supersedes 89170-30810iGWS191200709

SRS AIR BAG-WITH(REAR SIDE)

main89170-30A00supersedes 89170-30810iGWS191200709

KOREA SPEC&SRS AIR BAG-WITH(REAR SIDE)

main89170-30A10supersedes 89170-30810iGWS191200709

KOREA SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-49325iGWS191200602-200709

89174ASENSOR, AIRBAG, FRONT LH

main89173-49325iGWS191200602-200709

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33031iGWS191200602-200709

main89178-33050iGWS191200809-201112

89833SENSOR, AIRBAG, REAR RH

main89833-30020iGWS191200602-200709

89834SENSOR, AIRBAG, REAR LH

main89834-30020iGWS191200602-200709

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-30130iGWS191200602-200709

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-30130iGWS191200602-200709

89952COMPUTER, OCCUPANT DETECTION

main89952-0W050iGWS191200607-200709

main89952-0W051supersedes 89952-0W052iGWS191200709-201107

KOREA SPEC

main89952-0W052iGWS191201108-201112

KOREA SPEC

7235633010NUT, SIDE SUPPORT, RH

main72356-33010

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0622

main91553-A0622

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
