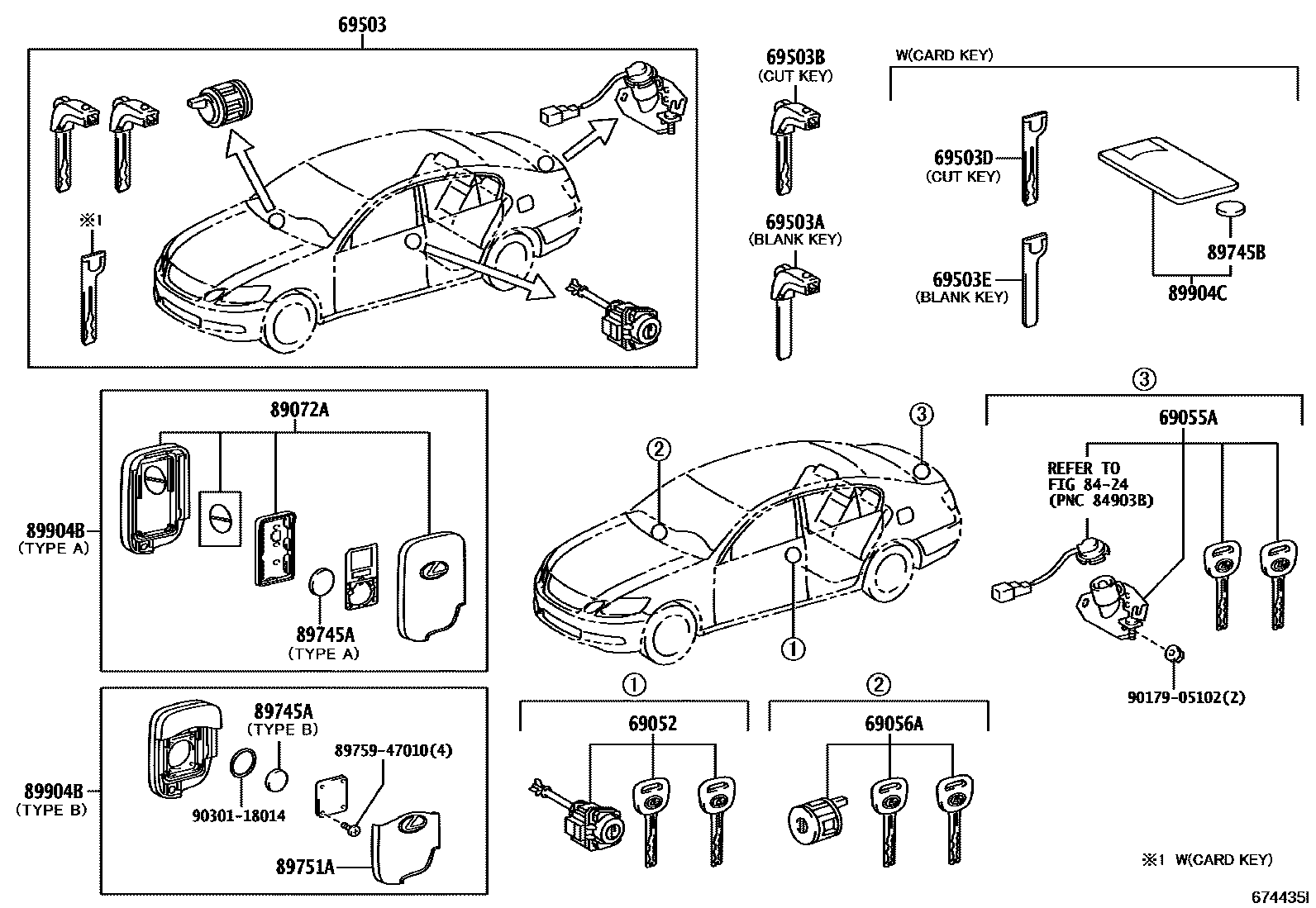

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
WITH(CARD KEY)
69503DKEY, CUT(CARD KEY)
MASTER KEY,WITH(CARD KEY)
MASTER KEY,WITH(CARD KEY)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
BLANK KEY
8424ANTI-THEFT DEVICE
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
KOREA SPEC
KOREA SPEC; KOREA SPEC&WITH(CARD KEY)
89745ABATTERY, TRANSMITTER
KOREA SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST.; KOREA SPEC,TYPE B:REFER ILLUST.
89745BBATTERY, TRANSMITTER(CARD KEY)
KOREA SPEC&WITH(CARD KEY); WITH(CARD KEY)
89751ACOVER, TRANSMITTER HOUSING
KOREA SPEC; KOREA SPEC&WITH(CARD KEY)
KOREA SPEC; KOREA SPEC&WITH(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
TYPE A:REFER ILLUST.
KOREA SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST.; KOREA SPEC,TYPE B:REFER ILLUST.
KOREA SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST.; KOREA SPEC,TYPE B:REFER ILLUST.
KOREA SPEC,TYPE A:REFER ILLUST.
KOREA SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST.; KOREA SPEC,TYPE A:REFER ILLUST.
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
KOREA SPEC&WITH(CARD KEY)
WITH(CARD KEY)
KOREA SPEC&WITH(CARD KEY)
KOREA SPEC&WITH(CARD KEY)
8975947010SCREW, DOOR CONTROL TRANSMITTER
main89759-47010
9017905102
main90179-05102
9030118014
main90301-18014
18 parts on this diagram · 1 diagram in section
