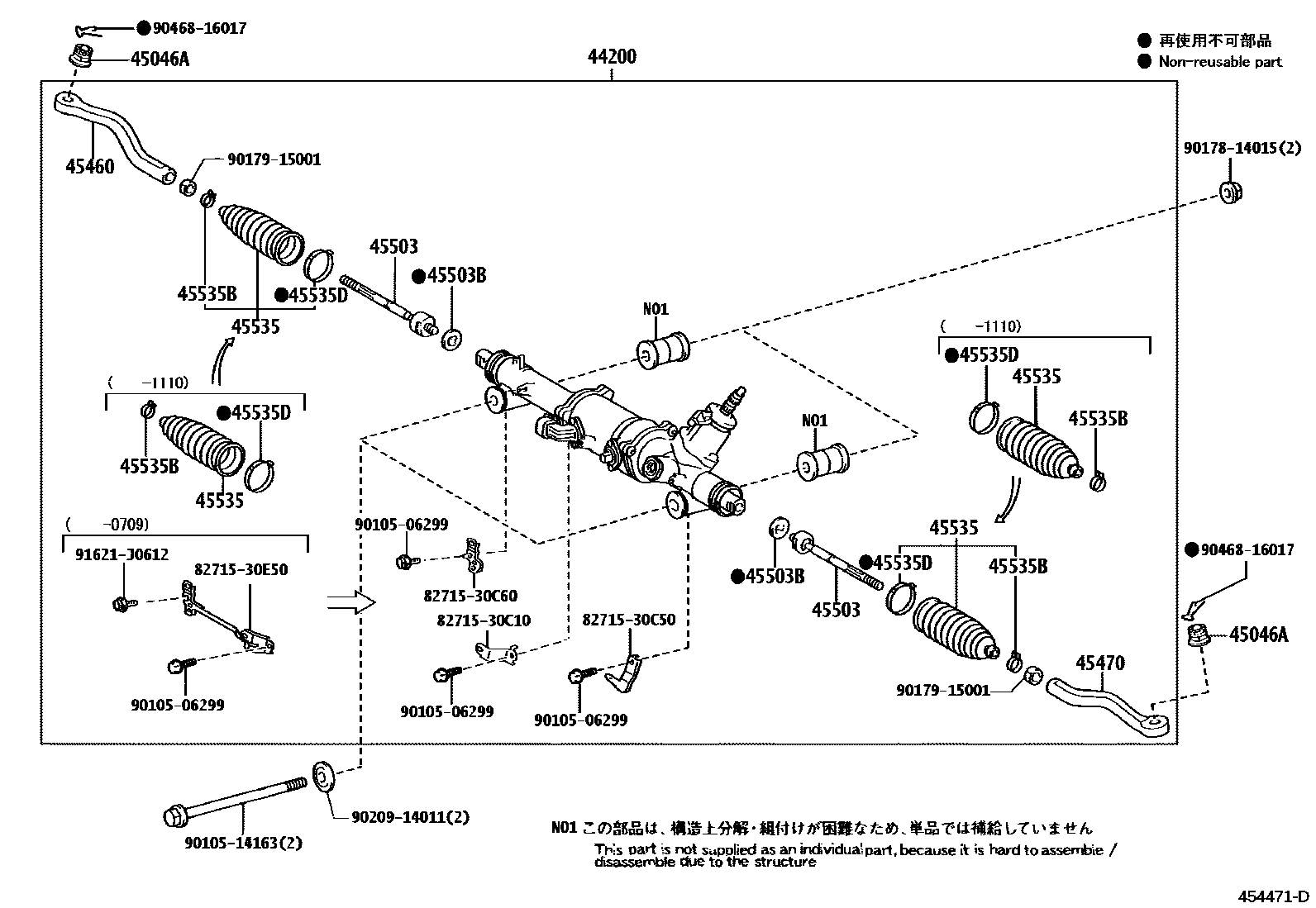

Toyota LEXUS GS450H — FRONT STEERING GEAR & LINK
44200LINK ASSY, POWER STEERING
45046ANUT, CASTLE(FOR TIE ROD END)
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45503BWASHER, CLAW(FOR STEERING RACK END)
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
8271530C10BRACKET,WIRING HARNESS CLAMP
8271530C50BRACKET,WIRING HARNESS CLAMP
8271530C60BRACKET,WIRING HARNESS CLAMP
8271530E50BRACKET,WIRING HARNESS CLAMP
9010506299
9010514163
9017814015
9017915001
9020914011
9046816017
91621J0612
20 parts on this diagram · 2 diagrams in section
FRONT STEERING GEAR & LINK for Toyota LEXUS GS450H
This section contains 21 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota LEXUS GS450H. Key components include: LINK ASSY, POWER STEERING, NUT, CASTLE(FOR TIE ROD END), ROD ASSY, TIE, RH, ROD ASSY, TIE, LH, END SUB-ASSY, STEERING RACK.
