Toyota LEXUS GS450H — PROPELLER SHAFT & UNIVERSAL JOINT

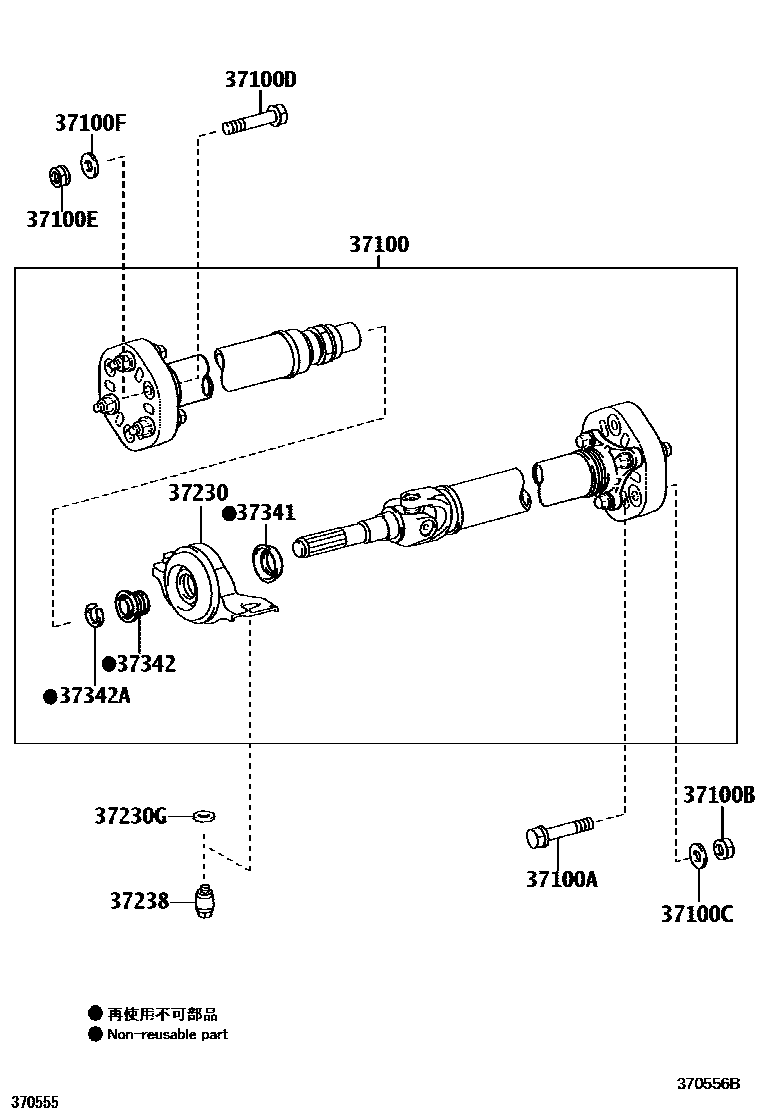

Parts diagram

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100DBOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37230BEARING ASSY, CENTER SUPPORT, NO.1

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

37238DAMPER, CENTER SUPPORT BEARING

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)

13 parts on this diagram · 1 diagram in section

PROPELLER SHAFT & UNIVERSAL JOINT for Toyota LEXUS GS450H

This section contains 13 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota LEXUS GS450H. Key components include: SHAFT ASSY, PROPELLER W/CENTER BEARING, BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING).
