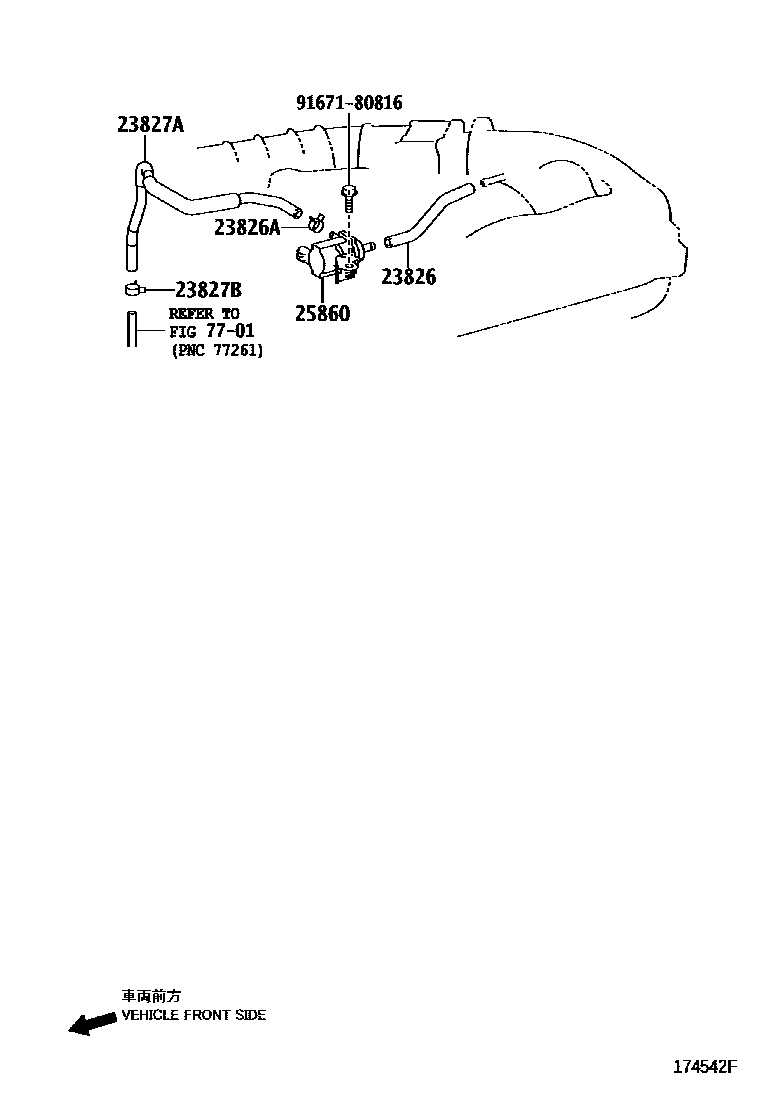

Toyota LEXUS GS450H — VACUUM PIPING
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701FUEL TANK & TUBE
9167180816
7 parts on this diagram · 1 diagram in section
VACUUM PIPING for Toyota LEXUS GS450H
This section contains 7 genuine Toyota parts for the VACUUM PIPING system of the Toyota LEXUS GS450H. Key components include: HOSE, FUEL VAPOR FEED, NO.1, CLIP(FOR FUEL VAPOR FEED HOSE, NO.1), HOSE, FUEL VAPOR FEED, NO.2, CLIP(FOR FUEL VAPOR FEED HOSE, NO.2), VALVE ASSY, VACUUM SWITCHING, NO.1.
