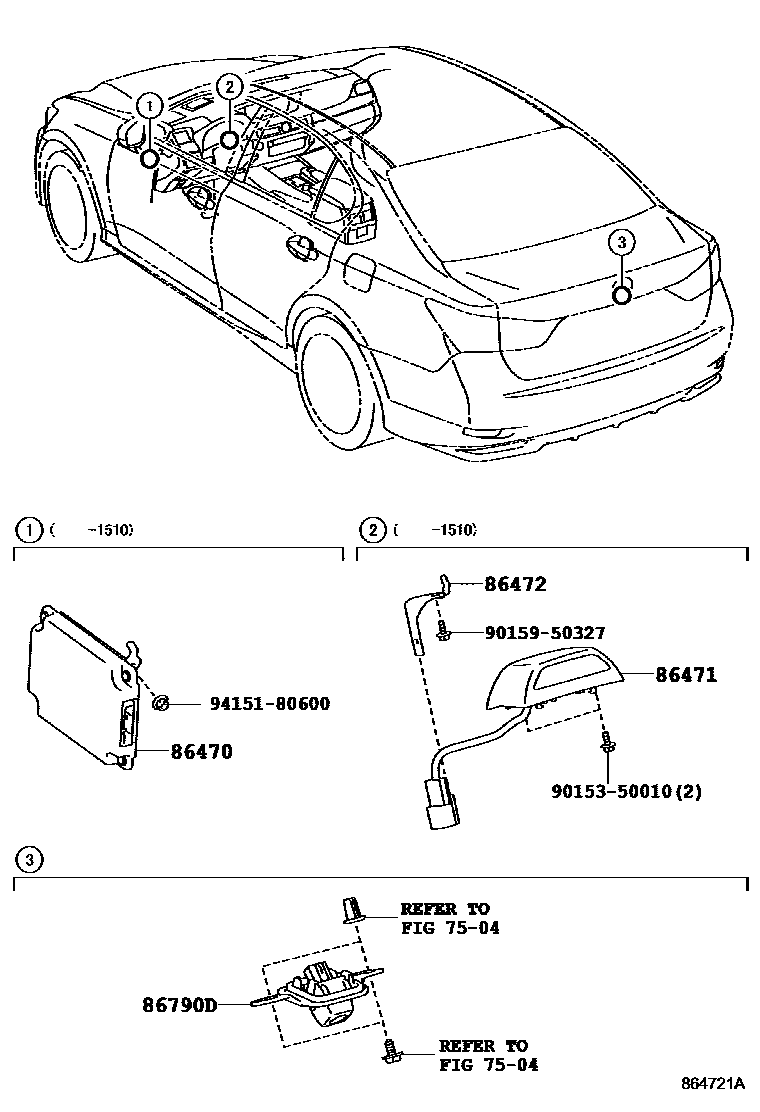

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30030iGRL10..8FC;GRL15,GWL10201112-201510

PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR)

86471CAMERA, DRIVER MONITOR

main86471-30030-C0iGRL10,15,GWL10201112-201510

PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),BLACK

86472BRACKET, DRIVER MONITOR

main86472-30030iGRL10201112-201309

PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR)

86790DCAMERA ASSY, TELEVISION, RR

main86790-30150iGRL1#,GWL10201112-201306

main86790-30151iGRL10..8FC;GRL11,15,GWL10201307-201409

main86790-30230iGRL10,GWL10; GRL11201409-201510

KOREA SPEC

main867B0-30010iGRL10,15,GWL10201409-201510

main867B0-30011iARL10,GRL1#,GWL10201510-202007

9015350010

main90153-50010

9015950327

main90159-50327

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
