EPC Data

NAVIGATION & FRONT MONITOR DISPLAY

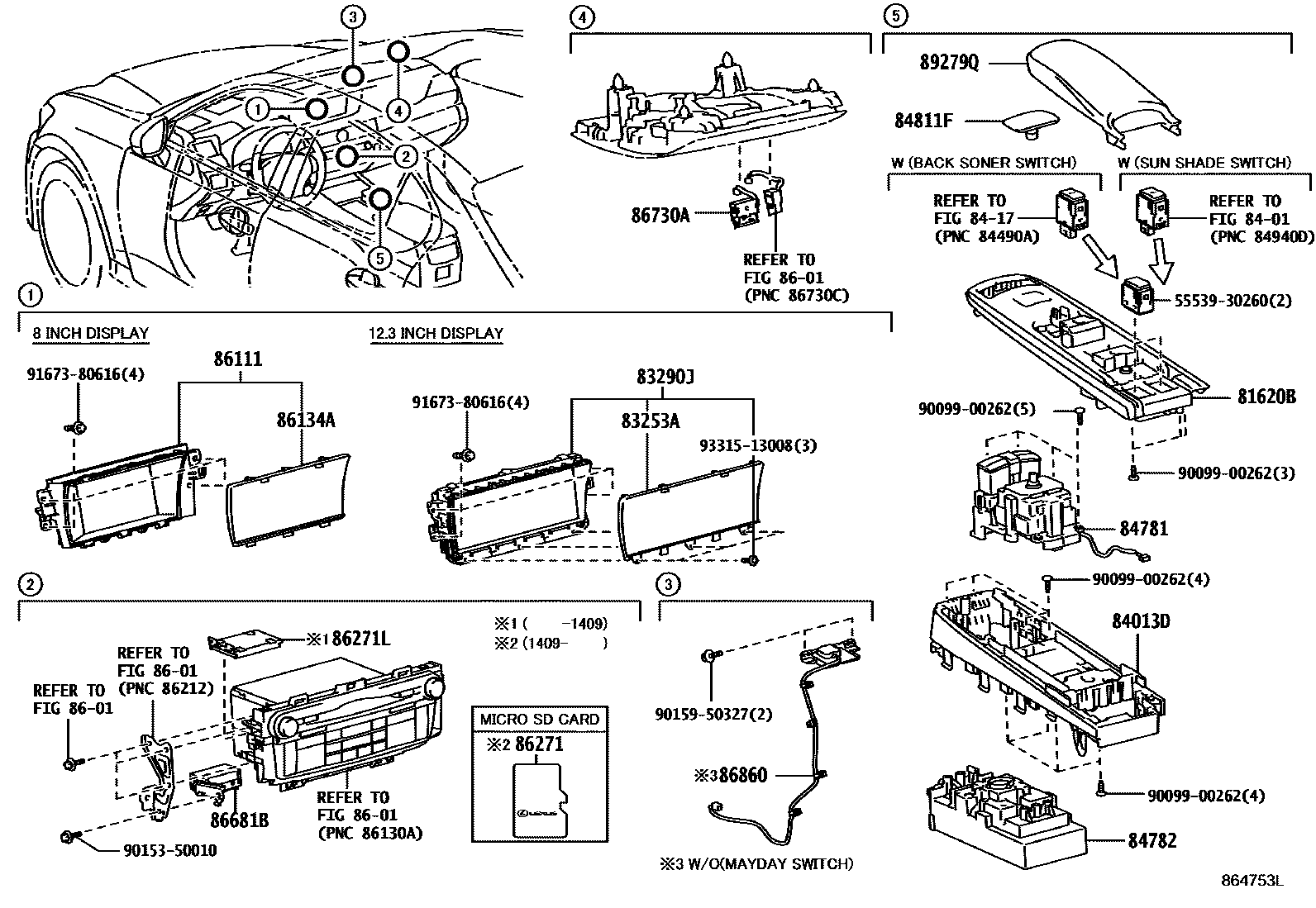

Parts diagram
81620BCOVER ASSY LH
main81620-30490i201112-201510
83253AGLASS, ACCESSORY METER
main83253-30010i201510-202007
KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY
83290JMETER ASSY, ACCESSORY
main83290-30240i201510-202007
KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY
main83290-30010i201112-201309
EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main83290-30040i201112-201309
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
sub83290-30130
main83290-30100i201309-201409
EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main83290-30150i201309-201409
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main83290-30180i201409-201510
EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main83290-30210i201409-201510
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main83290-30260i201510-201908
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
8401
84013DPANEL SUB-ASSY, INTEGRATION
main84013-30200i201112-201510
main84013-30260i201510-202007
8417
84781SWITCH, REMOTE OPERATION
main84781-30010supersedes 84781-30030i201201-201409
main84781-30030i201112-201409
main84781-30080i201409-201510
main84781-30100i201409-201510
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main84781-30110i201510-201801
EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main84781-30111supersedes 84781-30071i201802-202007
84782BOARD, REMOTE OPERATION
main84782-30010i201112-201409
main84782-30020i201409-201510
main84782-30030i201510-202007
84811FKNOB, SWITCH
main84811-30050i201112-201409
sub84811-30051
main84811-30060i201409-201508
main84811-30061i201509-201510
main84811-30070i201510-202007
8601
86111MULTI-DISPLAY
main86110-30330i201112-201309
DENSO
main86110-30340i201201-201409
DENSO
main86110-30410i201409-201510
PANASONIC
main86110-30440i201309-201409
PANASONIC
main86110-30450i201510-201703
PIONEER
main86110-30451i201703-201908
PIONEER
86134APARTS, MULTI-DISPLAY
main86134-30130i201112-201409
main86134-30140i201510-201908
main86134-30150i201309-201510
86271DISC, DISC PLAYER
main86271-30B50i201510-201607
CANADA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-48320i201801-201808
HAWAII SPEC&AUDIO-17SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-48321i201808-201908
HAWAII SPEC&AUDIO-17SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-48322i201908-202007
sub86271-48323
main86271-53390i201608-201709
CANADA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION & SDARS&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-53391i201709-201712
HAWAII SPEC&AUDIO-17SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-78011i201409-201507
CANADA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION & SDARS&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-78012i201507-201510
CANADA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION & SDARS&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
sub86271-78013
86271LHARD DISC
main86271-30670i201112-201309
main86271-30720i201201-201409
main86271-30680i201112-201206
CANADA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION & SDARS&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-30681i201207-201309
CANADA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION & SDARS&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
sub86271-30682
main86271-30820i201201-201309
MEXICO SPEC&AUDIO-12SPEAKER&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main86271-30A60i201309-201409
CANADA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION & SDARS&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
86681BDIVIDER, ANTENNA
main86681-30050i201112-201510
86730AMICROPHONE ASSY, TELEPHONE
main86730-30220i201510-202007
main86730-75010supersedes 86730-75030i201112-201208
86860ANTENNA ASSY, NAVIGATION
main86860-30310i201409-201510
HAWAII SPEC
main86860-30340i201201-201409
main868A0-30010i201709-202007
main86860-30350i201707-202007
HAWAII SPEC
89279QCOVER
main89279-30110i201112-201510
main89279-30150-B0i201510-202007
LT.GRAY NO.831,TRIM1#,2#,3#,5#,6#
main89279-30190-D0i202006-202007
"ETERNAL TOURING",RED NO.55,TRIM2#
5553930260COVER, SPARE SWITCH HOLE
main55539-30260
9009900262
main90099-00262
9015350010
main90153-50010
9015950327
main90159-50327
9167380616
main91673-80616
9331513008
main93315-13008

24 parts on this diagram · 3 diagrams in section
