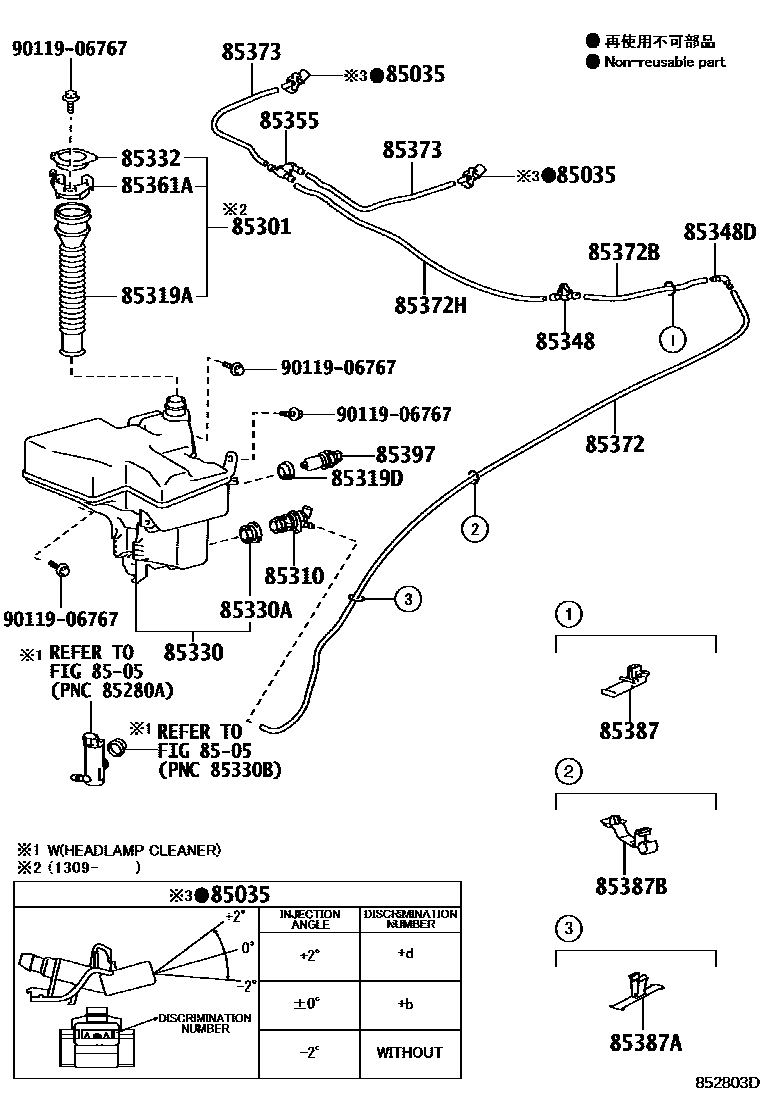

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201112-201510

ANGLE 0

main85381-30230×2i201112-201309

ANGLE -2

main85381-30240×2i201112-201510

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-30060i201503-201510

main85301-30070i201510-202007

main85319-30411i201309-201503

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201112-201309

85319AHOSE, INLET

main85319-30360i201112-201510

main85319-30460i201503-201510

85319DPACKING, FRONT WASHER

main85319-33230i201112-201309

85330JAR ASSY, WINDSHIELD WASHER

main85315-30390i201112-201503

main85315-30460i201503-201510

main85355-30020i201112-201309

HEADLAMP CLEANER-WITH

main85355-30080i201309-201503

COLD AREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER); COLD AREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-LED& WITH(AFS); COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER); COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED & WITH(AFS); COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER); COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-DISCHRAGE & WITH(AFS); COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED &WITH(AFS); GUAM,PUERTO RICO SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED &WITH(AFS); KOREA SPEC&COLD AREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-DISCHRAGE & WITH(AFS); KOREA SPEC&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-DISCHRAGE & WITH(AFS); KOREA SPEC&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED & WITH(AFS); KOREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-DISCHRAGE & WITH(AFS); KOREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-DISCHRAGE & WITH(AFS); KOREA SPEC&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED & WITH(AFS); STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-LED & WITH(AFS); STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED & WITH(AFS); STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-DISCHRAGE & WITH(AFS); STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED & WITH(AFS)

main85315-24150supersedes 85315-24130i201510-202007

COLD AREA SPEC

main85355-30090i201510-201909

KOREA SPEC&COLD AREA SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201112-201309

85332CAP, WINDSHIELD WASHER JAR

main85316-48050i201112-201309

main85316-48060i201503-201510

main85316-48171i201309-201503

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050i201112-201309

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i201112-201309

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201112-201309

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380i201112-201309

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62064i201510-202007

L=1340

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62068i201112-201309

L=250

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201112-201309

L=1450(*H,L=630)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201112-201309

L=1450(*H,L=360)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-3A640i201112-201309

85387ACLAMP, WASHER, NO.2

main82711-44060i201112-201309

85387BCLAMP, WASHER, NO.3

main90959-01568i201112-201309

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201510-202007

main85397-52100i201112-201510

9011906767

main90119-06767

22 parts on this diagram · 3 diagrams in section
