CENTER STOP LAMP

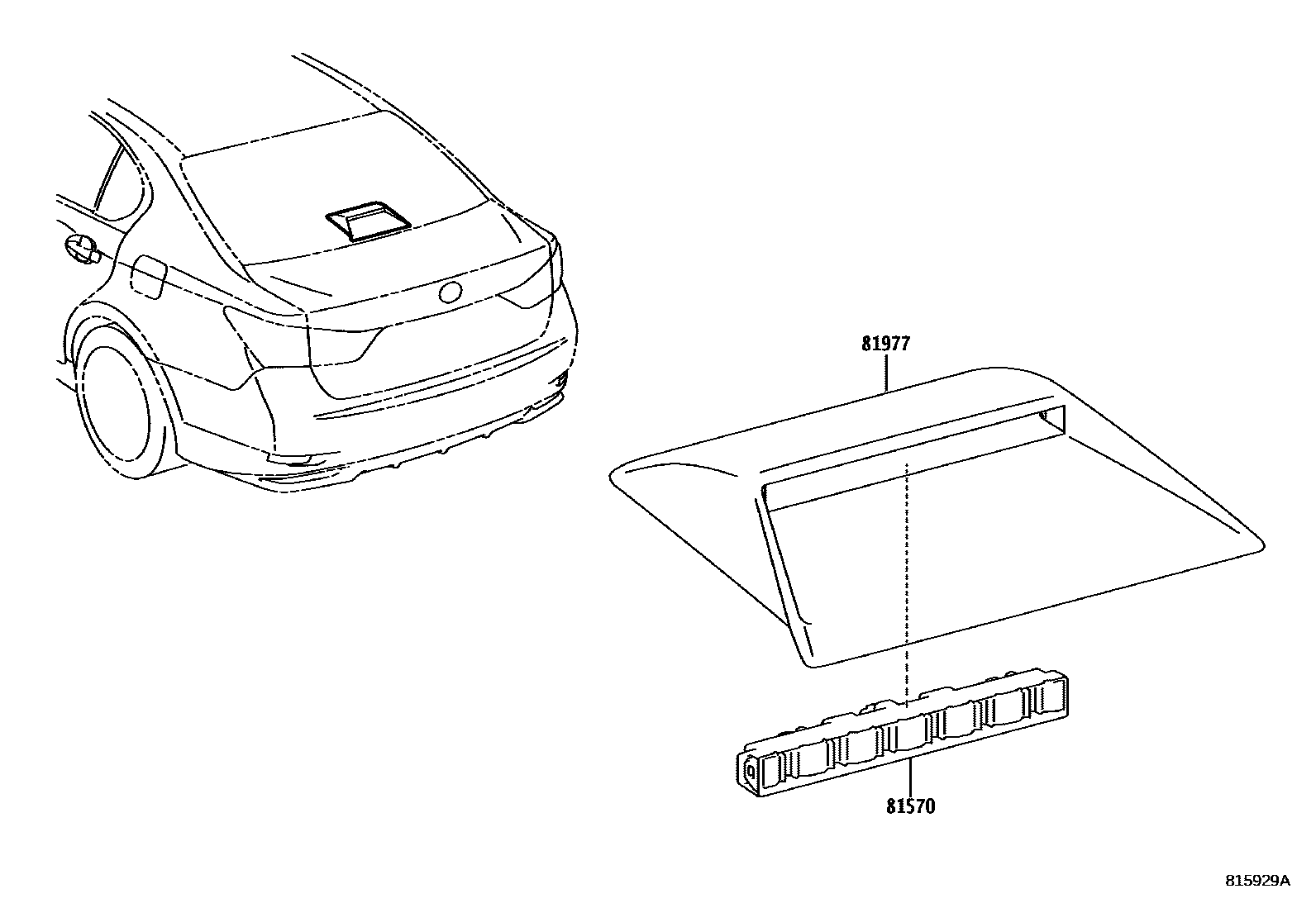

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-30230i201112-201309

main81570-30240i201112-201309

MEXICO SPEC

81977COVER, CENTER STOP LAMP

main81977-30100-A0i201201-201510

IVORY,TRIM00,01,02,03; IVORY,TRIM00,03

main81977-30100-B0i201112-201510

LT.GRAY,TRIM1#

main81977-30100-C0i201309-201510

BLACK,TRIM2#,3#,4#,5#

2 parts on this diagram · 1 diagram in section
