FRONT SEAT & SEAT TRACK

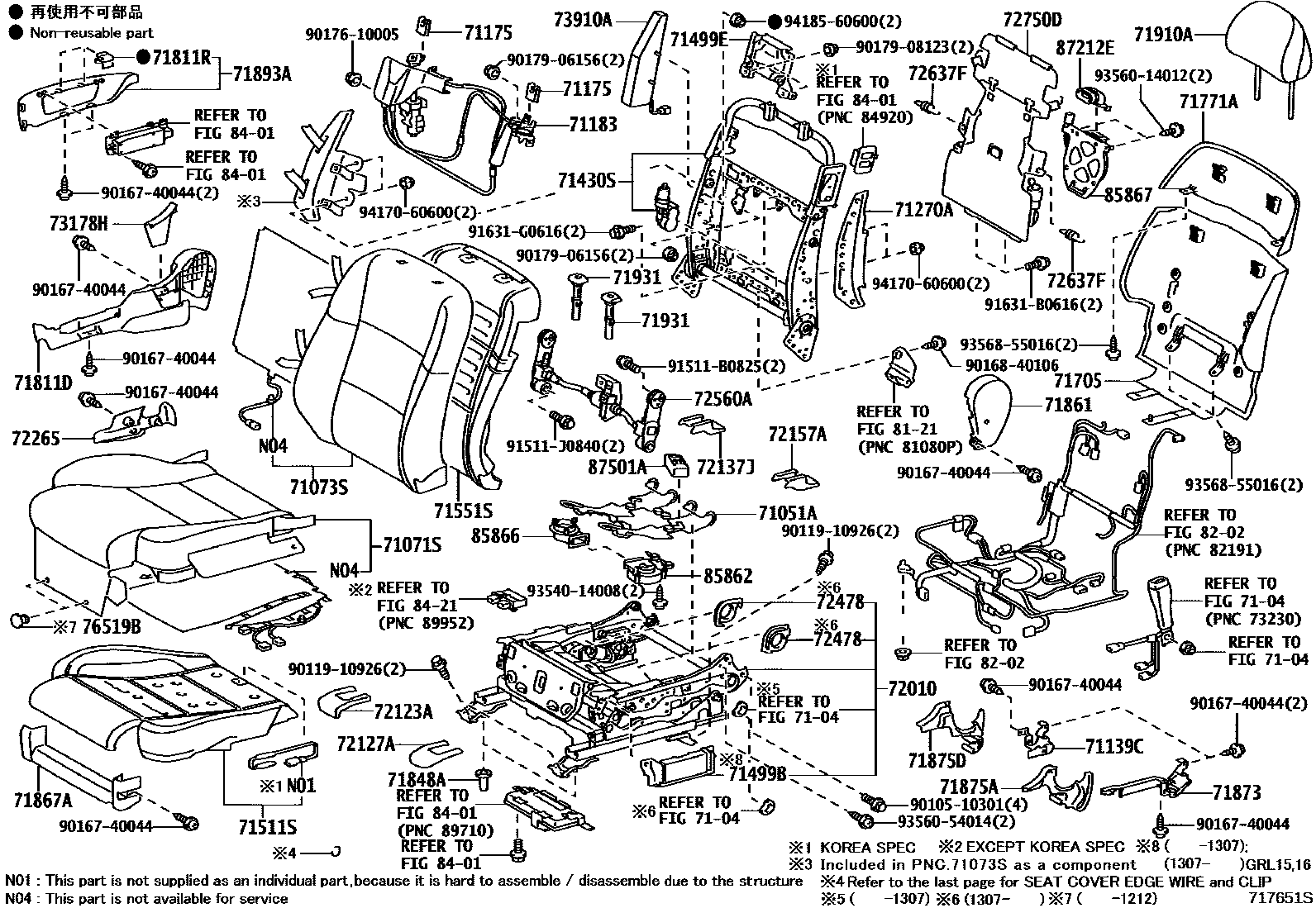

Parts diagram
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-30310i201510-202007
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-30F40-B2i201201-201409
LT.GRAY,TRIM1#
main71071-30F40-B3i201409-201510
LT.GRAY,TRIM1#
main71071-30K90-B0i201510-202007
CHATEAU,TRIM1#
main71071-30K90-C2i201510-202007
BLACK,TRIM2#
main71071-30K90-F2i201510-202007
TOPAZ BROWN,TRIM5#
main71071-30M60-B0i201510-201708
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
sub71071-30M61
main71071-30M60-B2i201708-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
sub71071-30M61
main71071-30M60-C0i201510-201708
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
sub71071-30M61
main71071-30M60-C2i201708-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
sub71071-30M61
main71071-30M60-F0i201510-201708
TOPAZ BROWM,TRIM5#
sub71071-30M61
main71071-30M60-F2i201708-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWM,TRIM5#
sub71071-30M61
main71071-30F40-E2supersedes 71071-30G60-E0i201203-201409
KOREA SPEC,SADDLE TAN,TRIM4#
main71071-30F40-E3i201409-201510
KOREA SPEC,SADDLE TAN,TRIM4#
main71071-30F80-B1i201112-201309
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),LT.GRAY,TRIM1#
main71071-30F80-B2supersedes 71071-30G60-B1i201409-201510
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),LT.GRAY,TRIM1#
main71071-30F80-C2supersedes 71071-30G60-C1i201203-201409
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71071-30F80-C3supersedes 71071-30G60-C3i201409-201510
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71071-30F80-E0i201112-201309
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71071-30F80-F1i201112-201309
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5
main71071-30F80-F2supersedes 71071-30G60-F2i201409-201510
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71071-30G00-B1supersedes 71071-30G60-B0i201203-201409
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),LT.GRAY,TRIM1#
main71071-30G00-B2supersedes 71071-30G60-B1i201409-201510
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),LT.GRAY,TRIM1#
main71071-30G00-C2i201112-201409
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK
main71071-30G00-C3i201409-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK
main71071-30G00-E0supersedes 71071-30G60-E0i201203-201409
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71071-30G00-E1i201409-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDL
main71071-30G00-F1supersedes 71071-30G60-F0i201203-201409
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30G00-F2i201409-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ
main71071-30G40-C0supersedes 71071-30F40-C7i201201-201409
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30G40-C1supersedes 71071-30F40-C8i201409-201510
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30G40-D0i201203-201409
KOREA SPEC&F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30G40-D1i201409-201510
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30G40-F0supersedes 71071-30F40-F1i201112-201409
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30G40-F1supersedes 71071-30F40-F3i201409-201510
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30G60-E1i201409-201510
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),SADDLE TAN,TRIM4#
main71071-30G70-C0supersedes 71071-30G50-C1i201112-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30G70-C1supersedes 71071-30G60-C3i201409-201510
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30G70-D0i201112-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30G70-D1i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30G70-F0supersedes 71071-30G50-F0i201112-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30G70-F1supersedes 71071-30G50-F1i201409-201510
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30G80-B1supersedes 71071-30G50-B0i201112-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
main71071-30G80-B2supersedes 71071-30G60-B1i201409-201510
CANADA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
main71071-30G80-C0supersedes 71071-30G50-C1i201112-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#
main71071-30G80-C1supersedes 71071-30G60-C3i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#
main71071-30G80-E0supersedes 71071-30G60-E0i201112-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,SADDLE TAN,TRIM4#
main71071-30G80-E1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,SADDLE TAN,TRIM4#
main71071-30G80-F0supersedes 71071-30G50-F0i201112-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#
main71071-30G80-F1supersedes 71071-30G60-F2i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#
main71071-30K00-C1i201409-201510
THE CRAFTED LINE&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK/SCARLET,TRIM3#
main71071-30K70-B0i201510-201804
KOREA SPEC,CHATEAU,TRIM1#
main71071-30K70-C2i201510-201804
KOREA SPEC,BLACK,TRIM2#
main71071-30K70-F2i201510-201804
KOREA SPEC,TOPAZ BROWN,TRIM5#
main71071-30K71-B0i201805-201908
KOREA SPEC,CHATEAU,TRIM1#
main71071-30K71-C2i201805-201908
KOREA SPEC,BLACK,TRIM2#
main71071-30K71-F2i201805-201908
KOREA SPEC,TOPAZ BROWN,TRIM5#
main71071-30K80-B2i201510-201804
KOREA SPEC&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71071-30K80-C4i201510-201804
KOREA SPEC&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71071-30K80-F4i201510-201804
KOREA SPEC&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71071-30K81-B2i201805-201909
KOREA SPEC&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71071-30K81-C4i201805-201908
KOREA SPEC&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71071-30K81-F4i201805-201908
KOREA SPEC&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71071-30L00-B0i201609-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,CHATEAU,TRIM1#
main71071-30L00-C2i201609-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71071-30L00-F2i201609-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,TOPAZ BROWN,TRIM5#
main71071-30L80-B0i201510-201708
KOREA SPEC,CHATEAU,TRIM1#
sub71071-30L81
main71071-30L80-B1i201708-201805
KOREA SPEC,CHATEAU,TRIM1#
sub71071-30L81
main71071-30L80-C0i201510-201708
KOREA SPEC,BLACK,TRIM2#
sub71071-30L81
main71071-30L80-C1i201708-201805
KOREA SPEC,BLACK,TRIM2#
sub71071-30L81
main71071-30L80-F0i201510-201708
KOREA SPEC,TOPAZ BROWM,TRIM5#
sub71071-30L81
main71071-30L80-F1i201708-201805
KOREA SPEC,TOPAZ BROWM,TRIM5#
sub71071-30L81
main71071-30M30-B0i201510-201708
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
sub71071-30M31
main71071-30M30-B1i201708-201909
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
sub71071-30M31
main71071-30M30-C0i201510-201708
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
sub71071-30M31
main71071-30M30-C1i201708-201809
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
sub71071-30M31
main71071-30M30-E0i201510-201708
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
sub71071-30M31
main71071-30M30-E1i201708-201809
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
sub71071-30M31
main71071-30M50-C0i201510-201708
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71071-30M50-C1i201708-201804
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71071-30M50-D0i201510-201708
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71071-30M50-D1i201708-201804
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71071-30M50-F0i201510-201708
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71071-30M50-F1i201708-201805
KOREA SPEC&F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30M51-C1i201805-201908
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71071-30M51-D1i201805-201909
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71071-30M51-F1i201805-201908
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71071-30M60-C3i202006-202007
"ETERNAL TOURING"&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK/RED,TRIM2#
sub71071-30M61
main71071-30M70-C0i201510-201708
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30M70-C1i201708-202007
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30M70-D0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71071-30M70-D1i201708-201908
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71071-30M70-F0i201510-201708
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71071-30M70-F1i201708-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71071-30M80-B0i201510-201708
CANADA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,CHATEAU,TRIM1#
main71071-30M80-B1i201708-201809
CANADA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,CHATEAU,TRIM1#
main71071-30M80-C0i201510-201708
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71071-30M80-C1i201708-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM2#
main71071-30M80-E0i201510-201708
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,NOBLE BROWN,TRIM6#
main71071-30M80-E1i201708-201809
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,NOBLE BROWN,TRIM6#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-30G00-20i201201-201409
BLACK,TRIM2#
main71073-30G00-B5i201201-201409
LT.GRAY,TRIM1#
main71073-30G00-B6i201409-201510
LT.GRAY,TRIM1#
main71073-30G00-E5i201201-201309
SADDLE TAN,TRIM4#
main71073-30G00-E6i201409-201510
SADDLE TAN,TRIM4#
main71073-30G00-F5i201201-201409
TOPAZ BROWM,TRIM5#
main71073-30K40-B0i201510-201709
CHATEAU,TRIM1#
main71073-30K40-B2i201709-202007
CHATEAU,TRIM1#
main71073-30K40-C1i201510-201709
BLACK,TRIM2#
main71073-30K40-C4i201709-202007
BLACK,TRIM2#
main71073-30K40-F1i201510-201709
TOPAZ BROWN,TRIM5#
main71073-30K40-F4i201709-202007
TOPAZ BROWN,TRIM5#
main71073-30K70-B1i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71073-30K70-C1i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71073-30K70-F1i201510-201709
TOPAZ BROWM,TRIM5#
main71073-30K71-B2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71073-30K71-C2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71073-30K71-F2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWM,TRIM5#
main71073-30G30-B3supersedes 71073-30F90-B5i201203-201409
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
main71073-30G30-B4supersedes 71073-30F90-B6i201409-201510
CANADA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
main71073-30G30-C6supersedes 71073-30F90-20i201112-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#
main71073-30G30-C7i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#
main71073-30G30-E5supersedes 71073-30G00-E5i201203-201409
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,SADDLE TAN,TRIM4#
main71073-30G30-E6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,SADDLE TAN,TRIM4#
main71073-30G30-F5i201203-201409
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#
main71073-30G30-F6supersedes 71073-30F90-F6i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#
main71073-30G50-B3i201203-201409
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),LT.GRAY,TRIM1#
main71073-30G50-B4i201409-201510
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),LT.GRAY,TRIM1#
main71073-30G50-C6i201203-201409
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30G50-C7i201409-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK
main71073-30G50-E5supersedes 71073-30G00-E5i201203-201409
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71073-30G50-E6i201409-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDL
main71073-30G50-F5i201112-201309
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5
main71073-30G50-F6i201409-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ
main71073-30G90-C1supersedes 71073-30F90-20i201112-201409
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30G90-C2supersedes 71073-30G00-22i201409-201510
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30G90-D1i201112-201409
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71073-30G90-D2i201409-201510
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71073-30G90-F1supersedes 71073-30F90-F5i201112-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30G90-F2supersedes 71073-30F90-F6i201409-201510
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30J80-C2i201409-201510
THE CRAFTED LINE&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK/SCARLET,TRIM3#
main71073-30K50-B3i201510-201709
KOREA SPEC&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71073-30K50-B4i201709-201908
KOREA SPEC&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71073-30K50-C3i201510-201709
VENTILATION SEAT-WITH,BLACK,TRIM2#
main71073-30K50-C5i201709-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71073-30K50-F3i201510-201709
VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71073-30K50-F5i201709-201908
VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71073-30L00-B1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,CHATEAU,TRIM1#
sub71073-30L02
main71073-30L00-C1i201510-201709
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71073-30L02
main71073-30L00-E1i201510-201709
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,NOBLE BROWN,TRIM6#
sub71073-30L02
main71073-30L01-B2i201709-202007
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71073-30L01-C2i201709-201809
GUAM,PUERTO RICO SPEC&VERSION L&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM2#
main71073-30L01-E2i201709-201809
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,NOBLE BROWN,TRIM6#
main71073-30L10-B1i201510-201709
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71073-30L10-C1i201510-201709
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30L10-E1i201510-201709
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71073-30L11-B2i201709-201809
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71073-30L11-C2i201709-201809
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30L11-E2i201709-201909
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,NOBLE BROWN,TRIM6#
main71073-30L50-C1i201510-201709
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71073-30L52
main71073-30L50-D1i201510-201709
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
sub71073-30L52
main71073-30L50-F1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
sub71073-30L52
main71073-30L51-C2i201709-202007
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30L51-D2i201709-201909
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71073-30L51-F2i201709-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71073-30R80-C0i202006-202007
"ETERNAL TOURING"&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
71139CCOVER, FRONT SEAT LEG, RH
main71139-30130i201212-201510
main71139-30130-C0i201112-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71175PLATE, FRONT SEATBACK SPRING SET, INSIDE RH
main71173-30090×2i201112-201510
71183SUPPORT, FRONT SEATBACK, RH
main71183-30050i201510-201809
CANADA SPEC&VERSION L&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
71270ABRACKET ASSY, SEAT, INNER RH
main71270-30110i201709-202007
CANADA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-30C30i201112-201510
main71430-30F40i201510-202007
main71430-30C60supersedes 71430-30C30i201112-201309
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
main71430-30C70supersedes 71430-30C30i201709-202007
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
71499BDAMPER, SEAT CUSHION SPRING
main71499-30030i201510-202007
RH SEAT
main71499-30040i201510-202007
LH SEAT
main71499-30060i201112-201307
RH SEAT
main71499-30070i201112-201307
LH SEAT
71499EDAMPER, SEATBACK SPRING, RH
main71499-30050i201709-202007
CANADA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-30140i201201-201510
main71511-30B40i201510-202007
main71501-30130i201510-201908
KOREA SPEC
main71501-30150supersedes 71511-30B50i201203-201510
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main71501-30160supersedes 71511-30B50i201510-201809
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)
main71511-30B60supersedes 71511-30B50i201409-201510
GUAM,PUERTO RICO SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-30B80i201112-201510
main71551-30C00i201709-202007
CANADA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
main71551-30C10i201203-201510
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main71551-30C20supersedes 71551-30B80i201112-201309
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-30880-B2i201112-201510
LT.GRAY,TRIM1#
main71705-30880-B3i201510-201603
CHATEAU,TRIM1#
main71705-30880-B4i201603-202007
CHATEAU,TRIM1#
main71705-30880-C5i201510-201603
BLACK,TRIM2#
main71705-30880-C7i201510-201603
BLACK/IVORY,TRIM56
main71705-30880-C8i201510-201603
BLACK/RED,TRIM3#
main71705-30880-C9i201603-202007
BLACK,TRIM2#,3#,56
main71705-30880-E2i201112-201309
DK.SADDLE TAN,TRIM4#
main71705-30880-F3i201112-201510
TOPAZ BROWN,TRIM50,51,52,53
main71705-30880-F6i201603-202007
TOPAZ BROWN,TRIM50,53,54
main71705-30890-B0i201409-201510
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
main71705-30890-B1i201510-201603
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71705-30890-B2i201709-202007
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71705-30890-C3i201510-201603
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71705-30890-C4i201709-202007
CANADA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM2#
main71705-30890-E2i201203-201409
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,DK.SADDLETAN,TRIM4#
main71705-30890-E3i201510-201603
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,NOBLE BROWN,TRIM6#
main71705-30890-E5i201603-201809
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,NOBLE BROWN,TRIM6#
main71705-30890-F2i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#
71771ABOARD, FRONT SEATBACK
main71771-30120-B0i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#,RH
main71771-30120-B1i201510-201809
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,CHATEAU,TRIM1#,RH
main71771-30120-C1i201510-201709
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#,RH
main71771-30120-E1i201112-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),DK.SA
main71771-30120-E2i201709-202007
CANADA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,NOBLE BROWN,TRIM6#,RH
main71771-30120-F1i201409-201510
GUAM,PUERTO RICO SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#,RH
main71772-30130-B0i201409-201510
GUAM,PUERTO RICO SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#,LH
main71772-30130-B1i201510-201809
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,CHATEAU,TRIM1#,LH
main71772-30130-C1i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,LH
main71772-30130-E1i201112-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,DK.SADDLE TAN,TRIM4#,LH
main71772-30130-E2i201510-201809
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,NOBLE BROWN,TRIM6#,LH
main71772-30130-F1i201112-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-30510-B0i201112-201309
LT.GRAY,TRIM10,11,12
main71811-30510-C0i201112-201309
BLACK,TRIM2#,3#,54,55,56
main71811-30510-E0i201112-201309
DK.SADDLE TAN,TRIM40,41
main71811-30510-F0i201112-201309
TOPAZ BROWN,TRIM50,51,53
71811RCLIP, FRONT SEAT CUSHION SHIELD, RH
main71731-30120×2i201510-202007
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010×2supersedes 71848-33010i201112-201312
main71848-76010×2i201401-201510
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-30110-B0i201112-201309
LT.GRAY,TRIM10,11,12
main71861-30110-C0i201112-201309
BLACK,TRIM2#,3#,54,55,56
main71861-30110-E0i201203-201510
DK.SADDLE TAN,TRIM40,41,42,43
main71861-30110-F0i201201-201510
TOPAZ BROWN,TRIM50,51,52,53
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-30150-B0i201112-201309
LT.GRAY,TRIM10,11,12
main71867-30150-C0i201201-201510
BLACK,TRIM2#,3#,54,55,56
main71867-30150-E1i201203-201510
DK.SADDLE TAN,TRIM40,41,42,43
main71867-30150-F0i201112-201309
TOPAZ BROWN,TRIM50,51,53
main71867-30160-B0supersedes 71867-30150-B0i201309-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
main71867-30160-C0supersedes 71867-30150-C0i201409-201510
GUAM,PUERTO RICO SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,3#,54,55,56
main71867-30160-E0supersedes 71867-30150-E1i201309-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,DK.SADDLE TAN,TRIM4#
main71867-30160-F0supersedes 71867-30150-F0i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM50,51,52
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-30110i201510-202007
main71873-30110-C0i201112-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71876-30190i201510-202007
main71876-30190-C0i201112-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71875DCOVER, RECLINING ADJUSTER OUTSIDE, RH
main71875-30190i201212-201510
main71875-30190-C0i201112-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71893ASHIELD, POWER ADJUSTER, FRONT RH
main71893-30030-B0i201112-201309
LT.GRAY,TRIM10,11,12
main71893-30030-C0i201510-202007
BLACK,TRIM1#,2#,3#,5#
main71893-30030-E0i201112-201309
DK.SADDLE TAN,TRIM40,41
main71893-30030-F0i201112-201309
TOPAZ BROWN,TRIM50,51,53
71910AHEADREST ASSY, FRONT SEAT
main71910-30E30-B2×2i201510-201602
CHATEAU,TRIM1#
main71910-30E30-C2×2i201510-201602
BLACK,TRIM2#
main71910-30E30-F2×2i201510-201602
TOPAZ BROWN,TRIM5#
main71910-30F60-B0×2i201112-201510
LT.GRAY,TRIM1#
main71910-30F60-C0×2i201112-201510
BLACK,TRIM2#
main71910-30F60-D0×2i201112-201510
GARNET,TRIM3#
main71910-30F60-E0×2i201112-201510
SADDLE TAN,TRIM4#
main71910-30F60-F0×2i201112-201510
TOPAZ BROWN,TRIM5#
main71910-30G30-B0×2i201510-201709
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71910-30G30-C0×2i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71910-30G30-D0×2i201510-201602
DK.ROSE,TRIM3#
main71910-30G30-F0×2i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71910-30G80-C0×2i201602-201709
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71910-30G80-D0×2i201602-201709
DK.ROSE,TRIM3#
main71910-30G80-F0×2i201602-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWN,TRIM5#
main71910-30J00-B0×2i201602-201709
CHATEAU,TRIM1#
main71910-30J00-C0×2i201602-201709
BLACK,TRIM2#
main71910-30J00-F0×2i201602-201709
TOPAZ BROWN,TRIM5#
main71910-30K30-B0×2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71910-30K30-C0×2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71910-30K30-F0×2i201709-202007
TOPAZ BROWN,TRIM5#
main71910-30K40-B0×2i201709-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,CHATEAU,TRIM1#
main71910-30K40-C0×2i201709-202007
BLACK,TRIM2#
main71910-30K40-F0×2i201709-202007
TOPAZ BROWN,TRIM5#
main71910-30F20-B2×2i201409-201510
CANADA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,LT.GRAY,TRIM1#
sub71910-30E40
main71910-30F20-C4×2i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#
sub71910-30E40
main71910-30F20-E3×2i201112-201510
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDL
sub71910-30E40
main71910-30F20-F4×2i201409-201510
HAWAII SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY,TOPAZ BROWN,TRIM5#
sub71910-30E40
main71910-30F60-C2×2i201412-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK/RED,TRIM33
main71910-30G10-D0×2i201412-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM30,31,32
main71910-30G40-B0×2i201510-201602
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71910-30G40-C0×2i201510-201602
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71910-30G40-E1×2i201510-201602
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,NOBLE BROWN,TRIM6#
main71910-30G90-B0×2i201602-201709
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71910-30G90-C0×2i201602-201709
VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71910-30G90-E0×2i201602-201709
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,NOBLE BROWN,TRIM6#
main71910-30G91-B0×2i201709-202007
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71910-30G91-C0×2i201709-201809
GUAM,PUERTO RICO SPEC&VERSION L&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM2#
main71910-30G91-E0×2i201709-201809
HAWAII SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,NOBLE BROWN,TRIM6#
main71910-30J90-C1×2i202006-202007
"ETERNAL TOURING"&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK/RED,TRIM2#
main71910-30K30-D0×2i201709-201908
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-B1×2i201112-201510
W(LOCK),LT.GRAY,TRIM1#
main71930-47020-C0×2i201510-202007
W(LOCK),BLACK,TRIM1#,2#,3#,5#
main71930-47020-C4×2i201710-202007
W(LOCK),SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#,5#
main71931-47020-B1×2i201112-201510
W/O(LOCK),LT.GRAY,TRIM1#
main71931-47020-C0×2supersedes 71931-47020-C0i201112-201510
W/O(LOCK),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,4#,5#
main71931-47020-C4×2i201710-202007
W/O(LOCK),BLACK,TRIM1#,2#,5#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-30310i201112-201209
sub73214-75010
main72010-30311i201209-201307
sub73214-75010
main72010-30312i201510-202007
main72010-30370i201201-201307
sub73214-75010
main72010-30371i201307-201510
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main72010-30512i201510-202007
main72010-30340i201203-201307
KOREA SPEC&VERSION L&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
sub73214-75010
main72010-30341i201307-201309
KOREA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main72010-30350i201203-201307
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)
sub73214-75010
main72010-30351i201307-201510
KOREA SPEC&VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY& *PAS(SEAT BACK SWITCH & OTTOMAN)
main72010-30390i201203-201209
VERSION L&FRONT SEAT ADJUSTER-18WAY
sub73214-75010
main72010-30391supersedes 72010-30312i201209-201307
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY
sub73214-75010
main72010-30392supersedes 72010-30312i201510-201809
CANADA SPEC&VERSION L&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
main72010-30520supersedes 72010-30512i201112-201209
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY
sub73214-75010
main72010-30521supersedes 72010-30512i201209-201307
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY
sub73214-75010
main72010-30522supersedes 72010-30512i201307-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-30110-C0i201112-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-30090-C0i201112-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-30210-C0i201510-201908
BLACK,TRIM1#,2#,3#,5#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72138-30080-C0i201510-202007
BLACK,TRIM1#,2#,3#,5#,6#
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-30010i201112-201309
72478BUSH, VERTICAL ADJUSTER
main72478-30040×4i201307-201309
72560AADJUSTER ASSY, FRONT SEATBACK
main72560-30010×2i201510-201709
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH
72637FSPRING, SEATBACK, RH
main72637-30020×2i201510-202007
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-30280i201112-201510
main72750-30290i201510-202007
main72750-30320supersedes 72750-30280i201709-202007
CANADA SPEC&VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY
73178HCAP, SEAT BELT ANCHOR COVER, RH
main73178-30050-B0i201201-201510
LT.GRAY,TRIM10,11,12,13
sub73178-33050
main73178-30050-C0i201203-201510
BLACK,TRIM2#,3#,54,55,56
sub73178-33050
main73178-30050-E1i201112-201510
DK.SADDLE TAN,TRIM40,41,42
sub73178-33050
main73178-30050-F0i201201-201510
TOPAZ BROWN,TRIM50,51,52,53
sub73178-33050
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-30080i201112-201510
main73910-30100i201510-201809
F SPORT&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main73910-30120supersedes 73910-30080i201510-201709
VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH
76519BCLIP, FRONT SEAT CUSHION COVER
main76519-42010×4i201203-201212
VERSION L&FRONT SEAT ADJUSTER-18WAY
8121
8202
8401
8421
85862BLOWER, SEAT CLIMATE CONTROL, RH
main85801-30250i201201-201510
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
main85866-30030i201201-201510
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-30020i201201-201510
87212EDUCT, AIR, REAR RH
main87211-30690i201201-201510
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-30020i201510-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)
9010510301
main90105-10301
9011910926
main90119-10926
9016740044
main90167-40044
9016840106
main90168-40106
9017610005
main90176-10005
9017906156
main90179-06156
9017908123
main90179-08123
91511B0825
main91511-B0825
91511J0840
main91511-J0840
91631B0616
main91631-B0616
91631G0616
main91631-G0616
9354014008
main93540-14008
9356014012
main93560-14012
9356054014
main93560-54014
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

65 parts on this diagram · 6 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
