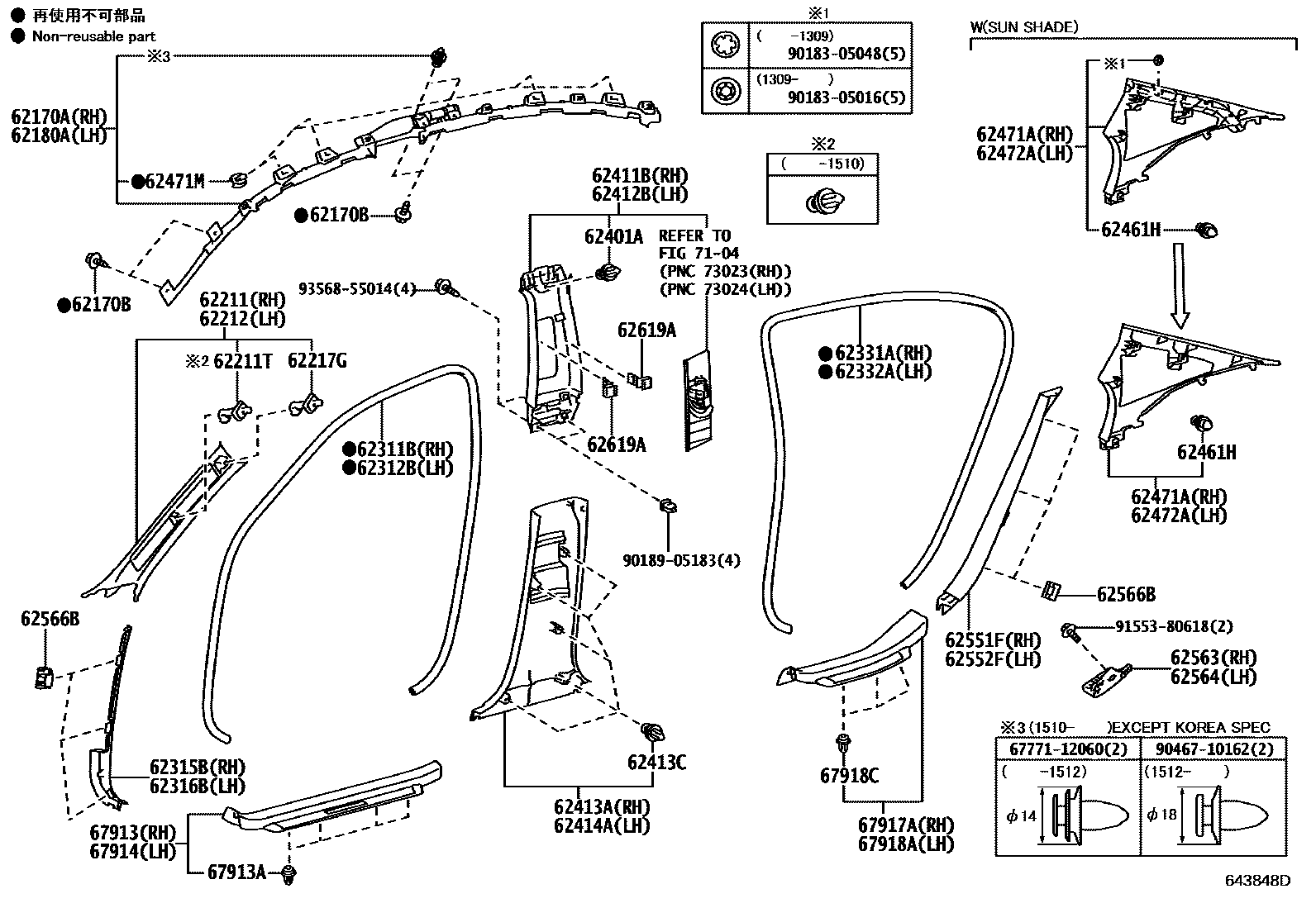

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30120iGRL1#,GWL10201112-201209

main62170-30121iGRL1#,GWL10201209-201510

main62170-30150iARL10,GRL1#,GWL10201510-201601

main62170-30170iARL10,GRL1#,GWL10201601-202007

main62170-30160iARL10,GRL12,GWL10201510-201909

KOREA SPEC

62170BBOLT, W/WASHER

main90119-06869×8iARL10,GRL1#,GWL10201510-202007

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30120iGRL1#,GWL10201112-201209

main62180-30121iGRL10201209-201309

main62180-30150iARL10,GRL1#,GWL10201510-201601

main62180-30170iARL10,GRL1#,GWL10201601-202007

main62180-30160iARL10,GRL12,GWL10201510-201909

KOREA SPEC

62211GARNISH, FRONT PILLAR, RH

main62211-30530-A0iGRL11201201-201306

IVORY,TRIM00,03,50,51,52,53

main62211-30530-B0iGRL1#,GWL10201112-201306

LT.GRAY,TRIM1#,20,21,22,23,4#

main62211-30530-C0iGRL1#,GWL10201112-201306

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main62211-30531-A0iGRL15201307-201510

IVORY,TRIM50,51,52,53

main62211-30531-B0iGRL10201307-201309

LT.GRAY,TRIM1#,20,21,23,4#

main62211-30531-C0iGRL10201307-201309

BLACK,TRIM24,25,3#,54,55

main62211-30560-A0iARL10201510-201908

ECRU,TRIM1#,20,22,23,24,50,53,54

main62211-30560-C0iGRL1#201510-202007

BLACK,TRIM26,27,3#,56

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-24030×2iARL10,GRL1#,GWL10201510-202007

main90467-10161×2iGRL10201112-201309

62212GARNISH, FRONT PILLAR, LH

main62212-30540-A0iGRL11201201-201306

IVORY,TRIM00,03,50,51,52,53

main62212-30540-B0iGRL1#,GWL10201112-201306

LT.GRAY,TRIM1#,20,21,22,23,4#

main62212-30540-C0iGRL1#,GWL10201112-201306

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main62212-30541-A0iGRL15201307-201510

IVORY,TRIM50,51,52,53

main62212-30541-B0iGRL15201307-201510

LT.GRAY,TRIM1#,20,21,22,4#

main62212-30541-C0iGRL10201307-201309

BLACK,TRIM24,25,3#,54,55

main62212-30570-A0iGRL1#,GWL10201510-202007

ECRU,TRIM1#,20,22,23,24,50,53,54,6#

main62212-30570-C0iGRL1#201510-202007

BLACK,TRIM26,27,3#,56

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020×2iARL10,GRL1#,GWL10201510-202007

main62217-30040×2iGRL1#,GWL10201112-201208

main62217-52120×2iGRL10..8FC;GRL11,15,GWL10201209-201510

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-30260iGRL10..8FC;GRL11,15,GWL10201112-201510

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-30250iGRL10..8FC;GRL11,15,GWL10201112-201510

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-30120-C0iGRL1#,GWL10201112-201306

BLACK,TRIM0#,1#,2#,4#,5#

main62315-30121-C0iGRL10201309-201510

F SPORT,BLACK,TRIM2#,3#,5#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-30110-C0iGRL1#,GWL10201112-201306

BLACK,TRIM0#,1#,2#,4#,5#

main62316-30111-C0iGRL15201307-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-30190iARL10,GRL1#,GWL10201510-202007

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-30190iGRL10..8FC;GRL11,15,GWL10201112-201510

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62217-13010×2iARL10,GRL1#,GWL10201603-202007

main90467-10167×2iGRL10..8FC;GRL11,15,GWL10201112-201510

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30470-A0iGRL10,15,GWL10201112-201306

IVORY,TRIM00,01,02,03,50,51,52,53

main62411-30470-B0iGRL1#,GWL10201112-201306

LT.GRAY,TRIM1#,20,21,22,23,4#

main62411-30470-C0iGRL1#,GWL10201112-201306

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main62411-30471-A0iGRL15201307-201510

IVORY,TRIM50,51,52,53

main62411-30471-B0iGRL15201307-201510

LT.GRAY,TRIM1#,20,21,22,4#

main62411-30471-C0iGRL1#,GWL10201307-201510

BLACK,TRIM24,25,26,3#,54,55,56

main62411-30550-A0iARL10201510-201511

ECRU,TRIM1#,20,22,23,24,50,53,54,6#

main62411-30550-C0iARL10,GRL1#,GWL10201510-201511

BLACK,TRIM26,3#,56

main62411-30551-A0iARL10201512-201908

ECRU,TRIM1#,20,23,24,50,53,54

main62411-30551-C0iGRL1#201512-202007

BLACK,TRIM26,27,3#,56

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30470-A0iGRL11201201-201306

IVORY,TRIM00,03,50,51,52,53

main62412-30470-B0iGRL1#,GWL10201112-201306

LT.GRAY,TRIM1#,20,21,22,23,4#

main62412-30470-C0iGRL1#,GWL10201112-201306

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main62412-30471-A0iGRL15201307-201510

IVORY,TRIM50,51,52,53

main62412-30471-B0iGRL15201307-201510

LT.GRAY,TRIM1#,20,21,22,4#

main62412-30471-C0iGRL1#,GWL10201307-201510

BLACK,TRIM24,25,26,3#,54,55,56

main62412-30500-A0iARL10201510-201511

ECRU,TRIM1#,20,22,23,24,50,53,54,6#

main62412-30500-C0iARL10,GRL1#,GWL10201510-201511

BLACK,TRIM26,3#,56

main62412-30501-A0iARL10201512-201908

ECRU,TRIM1#,20,23,24,50,53,54

main62412-30501-C0iARL10,GWL10201512-201908

BLACK,TRIM26,3#,56

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30260-C0iGRL10..6FC;GRL11,15,GWL10201112-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×10iGRL10201112-201309

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30190-C0iGRL10..6FC;GRL11,15,GWL10201112-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09236×8iGRL10201112-201309

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30560-A0iGWL10201203-201308

IVORY,TRIM00,01,02,03,50,51,52,53

main62471-30560-B0iGWL10201203-201308

LT.GRAY,TRIM1#,20,21,22,23,4#

main62471-30560-C0iGWL10201203-201308

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main62471-30570-A0iGRL10,15201112-201308

IVORY,TRIM5#

main62471-30570-B0iGRL10,15201112-201308

LT.GRAY,TRIM1#,2#

main62471-30570-C0iGRL11201201-201308

BLACK,TRIM24,25,3#,54,55

main62471-30580-A0iGWL10201309-201412

SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),IVORY,TRIM50,51,52

main62471-30580-A1iGWL10201510-201809

ECRU,TRIM1#,20,22,23,24,50,53,54,6#

main62471-30580-A3iGWL10201412-201510

SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),IVORY,TRIM50,51,52

main62471-30580-B0iGWL10201309-201412

SUN SHADE-WITH(BACK WINDOW),LT.GRAY,TRIM1#,20,21,22,23,4#

main62471-30580-B2supersedes 62471-30590-B0iGWL10201412-201510

SUN SHADE-WITH(BACK WINDOW),LT.GRAY,TRIM1#,20,21,22,23,4#

main62471-30580-C0iGWL10201309-201412

SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM24,25,26,3#,54,55,56

main62471-30580-C1iGWL10201412-201510

BLACK,TRIM24,25,26,3#,54,55,56

main62471-30590-A0iGRL11201309-201510

IVORY,TRIM50,51,52,53

main62471-30590-A1iARL10201809-201908

ECRU,TRIM1#,22,24,53,54

main62471-30590-B0iGRL11201309-201510

LT.GRAY,TRIM1#,2#

main62471-30590-C0iARL10201809-201908

BLACK,TRIM26,3#,56

62471MCLIP

main62184-06010×8iGRL10..8FC;GRL11,15,GWL10201112-201510

main90467-18017×8iARL10,GRL1#,GWL10201510-202007

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30520-A0iGWL10201203-201308

IVORY,TRIM00,01,02,03,50,51,52,53

main62472-30520-B0iGWL10201203-201308

LT.GRAY,TRIM1#,20,21,22,23,4#

main62472-30520-C0iGWL10201203-201308

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main62472-30530-A0iGRL11201201-201308

IVORY,TRIM50,51,53

main62472-30530-B0iGRL11201201-201308

LT.GRAY,TRIM1#,20,21,23

main62472-30530-C0iGRL11201201-201308

BLACK,TRIM24,25,3#,54,55

main62472-30550-A0iGWL10201309-201412

SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),IVORY,TRIM50,51,52

main62472-30550-A1iGWL10201510-201809

ECRU,TRIM1#,20,22,23,24,50,53,54,6#

main62472-30550-A3iGWL10201412-201510

SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),IVORY,TRIM50,51,52

main62472-30550-B0iGWL10201309-201412

SUN SHADE-WITH(BACK WINDOW),LT.GRAY,TRIM1#,20,21,22,23,4#

main62472-30550-B2supersedes 62472-30560-B0iGWL10201412-201510

SUN SHADE-WITH(BACK WINDOW),LT.GRAY,TRIM1#,20,21,22,23,4#

main62472-30550-C0iGWL10201309-201412

SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM24,25,26,3#,54,55,56

main62472-30550-C1iGWL10201510-201809

BLACK,TRIM26,3#,56

main62472-30560-A0iGRL11201309-201510

IVORY,TRIM50,51,52,53

main62472-30560-A1iARL10201809-201908

ECRU,TRIM1#,22,24,53,54

main62472-30560-B0iGRL11201309-201510

LT.GRAY,TRIM1#,2#

main62472-30560-C0iARL10201809-201908

BLACK,TRIM26,3#,56

62551FGARNISH, REAR SEAT SIDE, RH

main62551-30330-C0iGRL1#201112-201306

BLACK,TRIM0#,1#,2#,3#,4#,5#

main62551-30331iGRL10201307-201309

main62551-30331-C0iGRL15;GRL10..8FC201307-201510

BLACK,TRIM1#,2#,3#,5#

main62551-30340-C0iGWL10201203-201306

BLACK,TRIM0#,1#,2#,3#,4#,5#

main62551-30341-C0iGWL10201307-201510

BLACK,TRIM1#,2#,3#,4#,5#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-30290-C0iGRL1#201112-201306

BLACK,TRIM0#,1#,2#,3#,4#,5#

main62552-30291iGRL10201307-201309

main62552-30291-C0iGRL15;GRL10..8FC201307-201510

BLACK,TRIM1#,2#,3#,5#

main62552-30300-C0iGWL10201203-201306

BLACK,TRIM0#,1#,2#,3#,4#,5#

main62552-30301-C0iGWL10201510-201809

BLACK,TRIM1#,2#,3#,5#,6#

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-30020iGRL10201112-201309

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-30020iGRL10201112-201309

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010×6iGRL1#,GWL10201112-201510

62619APLATE, SIDE TRIM SET

main62619-30030×4iGRL10201112-201309

67913PLATE, FRONT DOOR SCUFF, RH

main67910-30070-C0iGRL1#,GWL10201112-201306

BLACK,TRIM0#,1#,2#,4#,5#

main67910-30071-C0iARL10201510-201602

BLACK,TRIM1#,2#,5#,6#

main67910-30072-C0iARL10201603-201908

BLACK,TRIM1#,2#,5#

main67910-30080-C0iGRL1#,GWL10201112-201306

F SPORT,BLACK,TRIM0#,2#,3#,5#

main67910-30081-C0iGRL15201409-201509

THE CRAFTED LINE,BLACK,TRIM2#,3#,5#

main67910-30082-C0iGRL1#202006-202007

"ETERNAL TOURING",BLACK,TRIM2#,3#,5#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162×8iARL10,GRL1#,GWL10201510-202007

67914PLATE, FRONT DOOR SCUFF, LH

main67920-30070-C0iGRL1#,GWL10201112-201306

BLACK,TRIM0#,1#,2#,4#,5#

main67920-30071-C0iGRL15201307-201509

BLACK,TRIM0#,1#,2#,3#,4#,5#

main67920-30072-C0iARL10201603-201908

BLACK,TRIM1#,2#,5#

main67920-30080-C0iGRL1#,GWL10201112-201306

F SPORT,BLACK,TRIM0#,2#,3#,5#

main67920-30081-C0iARL10,GRL1#,GWL10201510-201602

F SPORT,BLACK,TRIM2#,3#,5#

main67920-30082-C0iGRL1#202006-202007

"ETERNAL TOURING",BLACK,TRIM2#,3#,5#

67917APLATE, REAR DOOR SCUFF, RH

main67930-30050-C0iGRL1#,GWL10201112-201306

BLACK,TRIM0#,1#,2#,4#,5#

main67930-30051-C0iGRL15201307-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main67930-30060-C0iGRL1#,GWL10201112-201306

F SPORT,BLACK,TRIM0#,2#,3#,5#

main67930-30061-C0iGRL15201409-201510

THE CRAFTED LINE,BLACK,TRIM2#,3#,5#

67918APLATE, REAR DOOR SCUFF, LH

main67940-30050-C0iGRL1#,GWL10201112-201306

BLACK,TRIM0#,1#,2#,4#,5#

main67940-30051-C0iGRL15201307-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main67940-30060-C0iGRL1#,GWL10201112-201306

F SPORT,BLACK,TRIM0#,2#,3#,5#

main67940-30061-C0iGRL15201409-201510

THE CRAFTED LINE,BLACK,TRIM2#,3#,5#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162×6iARL10,GRL1#,GWL10201510-202007

7104

6777112060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12060

9018305016

main90183-05016

9018305048

main90183-05048

9018905183

main90189-05183

9046710162

main90467-10162

9155380618

main91553-80618

9356855014

main93568-55014

43 parts on this diagram · 1 diagram in section
