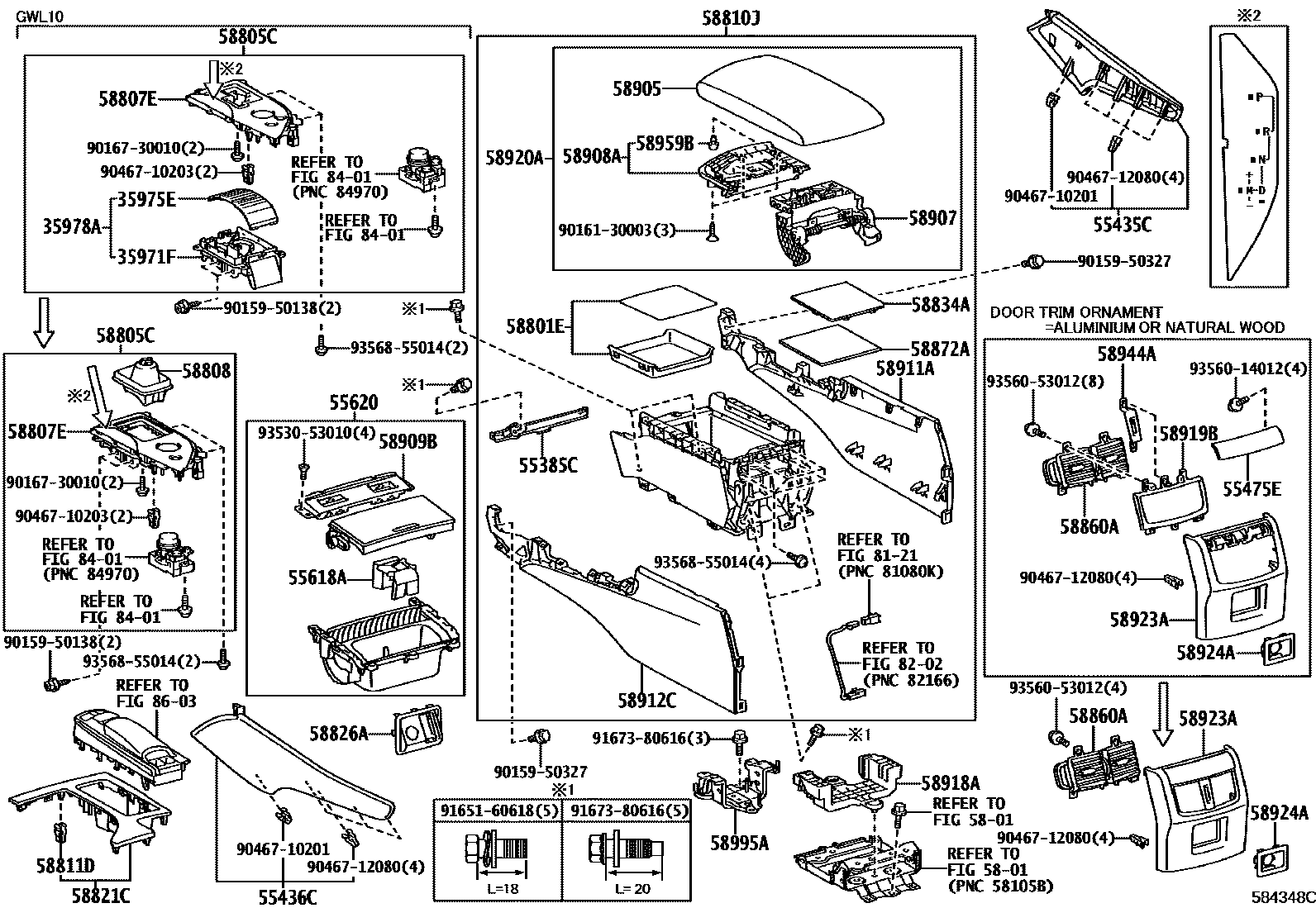

CONSOLE BOX & BRACKET
35971FHOUSING, POSITION INDICATOR
35975ECOVER, SLIDE (FOR POSITION INDICATOR)
35978AINDICATOR, SHIFT POSITION
55385CBRACKET, CONSOLE BOX MOUNTING, NO.5
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
CHATEAU,TRIM1#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
"ETERNAL TOURING",BLACK/RED,TRIM2#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
CHATEAU,TRIM1#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
"ETERNAL TOURING",BLACK/RED,TRIM2#
55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
PREMIUM PACKAGE&DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),OPEN PORE,TRIM1#,2#,5#
KOREA SPEC,-BLACK,TRIM12,21,25,31,41,51,55
KOREA SPEC,-DK.BROWN,TRIM10,20,26,32,40,50,56
DOOR TRIM ORNAMENT-NATURAL WOOD,-BROWN,TRIM13,22,52
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,MD.SILVER,TRIM2#,3#,5#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,MD.SILVER,TRIM2#,3#,5#
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA),BLACK,TRIM2#
HAWAII SPEC&VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD,DK.GRAY,TRIM1#,2#,5#,6#
55618AHOLDER, CONSOLE BOX CUP
55620HOLDER ASSY, INSTRUMENT PANEL CUP
-BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM01,12,21,25,31,41,51,55
DK.BROWN,TRIM00,10,20,26,32,40,50,56
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY),BROWN,TRIM02,13,22,42,52
-BLACK,TRIM12,21,51
-DK.BROWN,TRIM0#,10,20,40,50
NATURAL BROWN,TRIM13,22,52
BLACK,TRIM1#,2#,5#
BLACK,TRIM1#,2#,5#
PREMIUM PACKAGE&DOOR TRIM ORNAMENT-WALNUT(OPEN PORE)&SEAT HEATER-WITH(FRONT SEAT ONLY),OPEN PORE,TRIM1#,2#,5#
KOREA SPEC&F SPORT&DOOR TRIM ORNAMENT-ALUMINUM&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY),ALUMI,TRIM2#,3#,5#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATIONSEAT-WITH,MD.SILVER,TRIM2#,3#,5#
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA),BLACK,TRIM2#
VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD&SEAT HEATER-WITH(FRONT & REAR SEAT)&VENTILATION SEAT-WITH,DK.GRAY,TRIM1#,2#,5#,6#
5801
58801EBOX SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK/IVORY,TRIM0#,5#
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
BLACK/IVORY,TRIM50,51,52,53
BLACK/LT.GRAY,TRIM1#,2#,3#,4#,54,55,56
BLACK,TRIM1#,2#,5#
BLACK,TRIM1#,2#,5#
BLACK,TRIM1#,2#,3#,5#,6#
BLACK,TRIM1#,2#,3#,5#,6#
F SPORT,BLACK/IVORY,TRIM50,51,52
F SPORT,BLACK/LT.GRAY NO.094,TRIM04,1#,2#,30,31,32,4#,54,55,56
THE CRAFTED LINE,BLACK/RED,TRIM33
F SPORT,BLACK,TRIM1#,2#,3#,5#
"ETERNAL TOURING",BLACK,TRIM1#,20,26,3#,5#,6#
F SPORT,BLACK/RED,TRIM27
58807EFRAME SUB-ASSY, SHIFTING HOLE
F SPORT
F SPORT
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/IVORY,TRIM5#
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
BLACK/LT.GRAY,TRIM1#,2#,3#,5#
THE CRAFTED LINE,BLACK/RED,TRIM33
F SPORT,BLACK/RED,TRIM27
58810JBOX ASSY, CONSOLE
BLACK/BLACK,TRIM2#
BLACK/NOBLE BROWN,TRIM6#
BLACK/TOPAZ BROWN,TRIM5#
BLACK/CHATEAU,TRIM1#
BLACK/DK.ROSE,TRIM3#
BLACK/BLACK,TRIM2#
BLACK/NOBLE BROWN,TRIM6#
BLACK/TOPAZ BROWN,TRIM5#
BLACK/CHATEAU,TRIM1#
BLACK/DK.ROSE,TRIM3#
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA),BLACK/RED,TRIM2#
58811DCLIP(FOR CONSOLE BOX)
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM1#,2#,5#
-BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM01,12,21,25,31,33,41,51,55
DK.BROWN,TRIM10,20,26,32,40,50,56
BROWN,TRIM02,13,22,42,52
DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),OPEN PORE,TRIM1#,2#,5#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,MD.SILVER,TRIM2#,3#,5#
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA),BLACK,TRIM2#
DOOR TRIM ORNAMENT-LAZER CUT WOOD,BLACK,TRIM1#,2#,5#,6#
GUAM,PUERTO RICO SPEC&VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD,BLACK WOOD,TRIM1#,2#,5#,6#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,ALUMI,TRIM0#,2#,3#,5#
58826APOCKET, CONSOLE BOX, LOWER
58834ACOVER, CONSOLE, LOWER
58860AREGISTER ASSY, CONSOLE BOX
KOREA SPEC&VERSION L,BLACK,TRIM0#,1#,2#,3#,4#,5#
PREMIUM PACKAGE&DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),BLACK,TRIM1#,2#,5#
58872ACUSHION, CONSOLE BOX, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA),BLACK/RED,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM01,12,21,25,31,41,51,55
DK.BROWN,TRIM00,10,20,26,32,40,50,56
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY),BROWN,TRIM02,13,22,42,52
-BLACK,TRIM12,21,25,3#,41,51,55
-DK.BROWN,TRIM10,20,50
NATURAL BROWN,TRIM13,22,52
KOREA SPEC&F SPORT&DOOR TRIM ORNAMENT-ALUMINUM&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY),ALUMI,TRIM2#,3#,5#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM1#,2#,3#,5#,6#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#
58918ABRACKET, BOX SUPPORT
58919BPLATE, CONSOLE BOX
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA)
CANADA SPEC&VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD
58920AARMREST ASSY, REAR CONSOLE
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
"ETERNAL TOURING"&DOOR TRIM ORNAMENT- F SPORT(CFRP ALCANTARA),BLACK/RED,TRIM2#
58923APANEL, CONSOLE REAR END
KOREA SPEC&DOOR TRIM ORNAMENT-FILM(BLACK),BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,5#,6#
KOREA SPEC,BLACK,TRIM1#,2#,3#,4#,5#
58924APANEL, CONSOLE REAR END, NO.2
F SPORT,BLACK,TRIM0#,1#,2#,3#,4#,5#
CANADA SPEC&VERSION L,BLACK,TRIM0#,1#,2#,4#,5#
58944ACOVER, CONSOLE, REAR
PREMIUM PACKAGE&DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),BLACK,TRIM1#,2#,5#,6#
GUAM,PUERTO RICO SPEC&VERSION L,BLACK,TRIM0#,1#,2#,3#,4#,5#
sub58944-33060
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8121
8202
8401
8603
9015950138
main90159-50138
9015950327
main90159-50327
9016130003
main90161-30003
9016730010
main90167-30010
9046710201
main90467-10201
9046710203
main90467-10203
9046712080
main90467-12080
9165160618
main91651-60618
9167380616
main91673-80616
9353053010
main93530-53010
9356014012
main93560-14012
9356053012
main93560-53012
9356855014
main93568-55014
52 parts on this diagram · 2 diagrams in section
