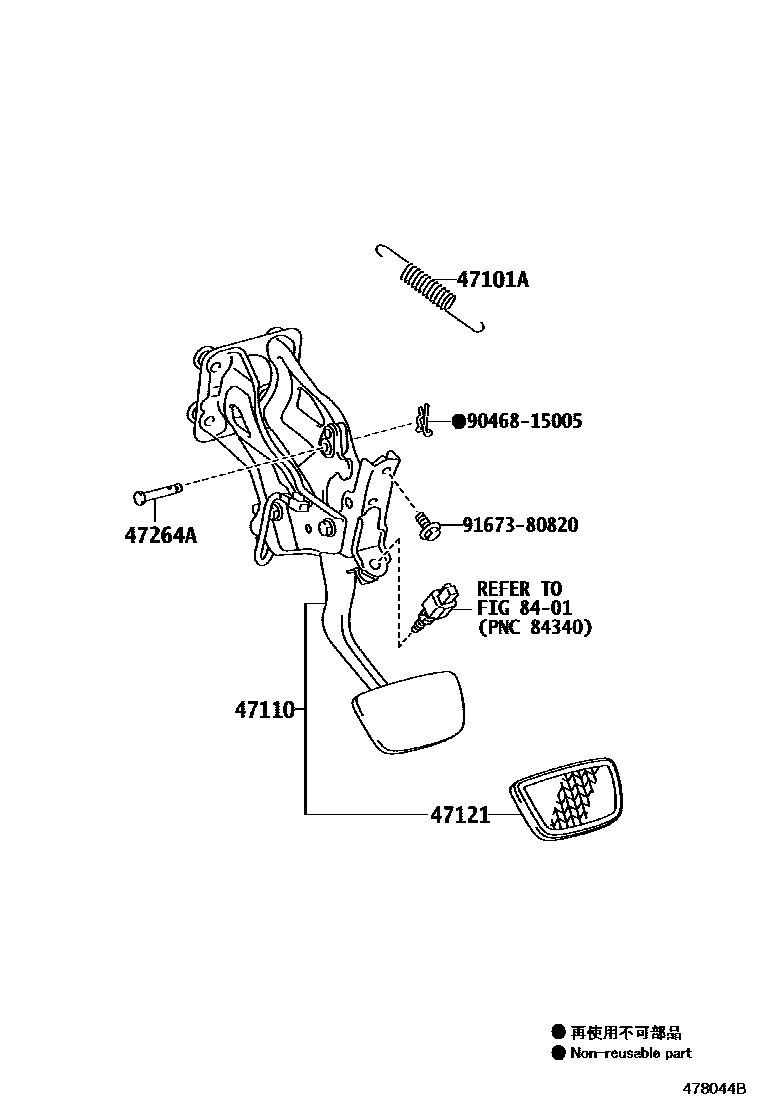

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iGWL10201203-201510

main90507-13009iGRL10201112-201309

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24200supersedes 47110-24140iARL10,GRL12201510-202007

F SPORT

main47110-24210supersedes 47110-24160iGRL16202006-202007

"ETERNAL TOURING"

main47110-24220supersedes 47110-30500iGWL10201510-201809

F SPORT

main47110-30530iGRL10201410-201510

THE CRAFTED LINE

main47110-30550supersedes 47110-30540iGRL15201410-201510

THE CRAFTED LINE

main47110-30590supersedes 47110-30580iGWL10201203-201510

F SPORT

47121PAD, BRAKE PEDAL

main47121-11010supersedes 47121-48010iARL10,GRL1#201902-201909

F SPORT

main47121-24010supersedes 47121-30080iARL10,GRL1#201510-201901

F SPORT

main47121-30090iGRL10,15201410-201510

THE CRAFTED LINE

47264APIN(FOR PUSH ROD)

main90249-06180iARL10,GRL1#201510-202007

main90249-10199iGWL10201510-201809

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 2 diagrams in section
