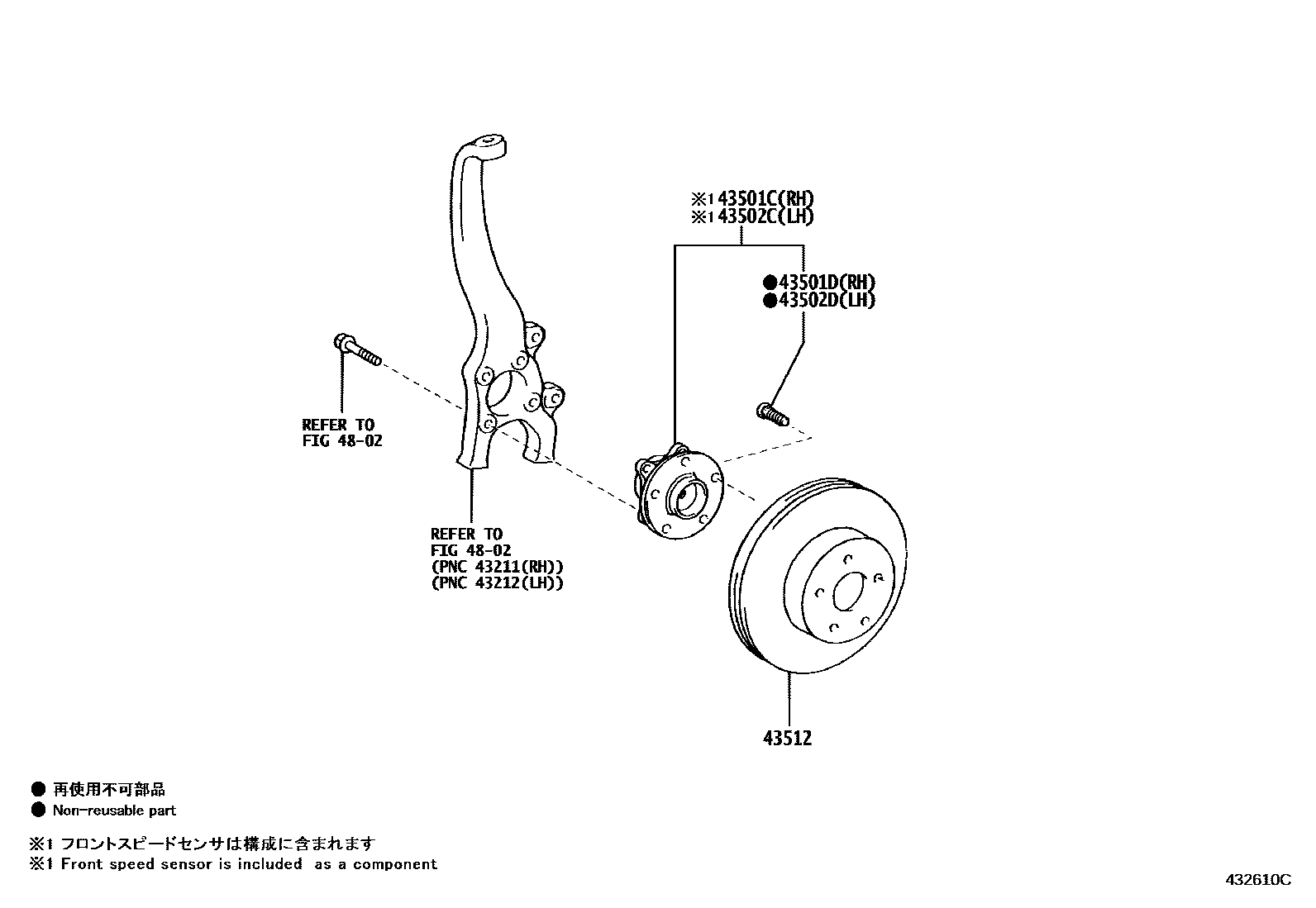

FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30030iGRL15201112-201507

main43550-30031iGRL16201508-202007

main43550-30050iGRL10,11,GWL10201112-201504

main43550-30051iGRL10,11,GWL10201505-202007

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iARL10,GRL1#,GWL10201505-202007

main90942-02070iGRL10201112-201507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30050iGRL10,11,GWL10201112-201504

main43550-30051iGRL10,11,GWL10201505-202007

main43560-30030iGRL15201112-201507

main43560-30031iGRL15201508-202007

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGRL10,11,GWL10201505-202007

main90942-02070iGRL10201112-201504

43512DISC, FRONT

main43512-30350iGRL1#,GWL10201112-202007

RH

main43516-30040iGRL1#,GWL10201112-202007

LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

6 parts on this diagram · 2 diagrams in section
