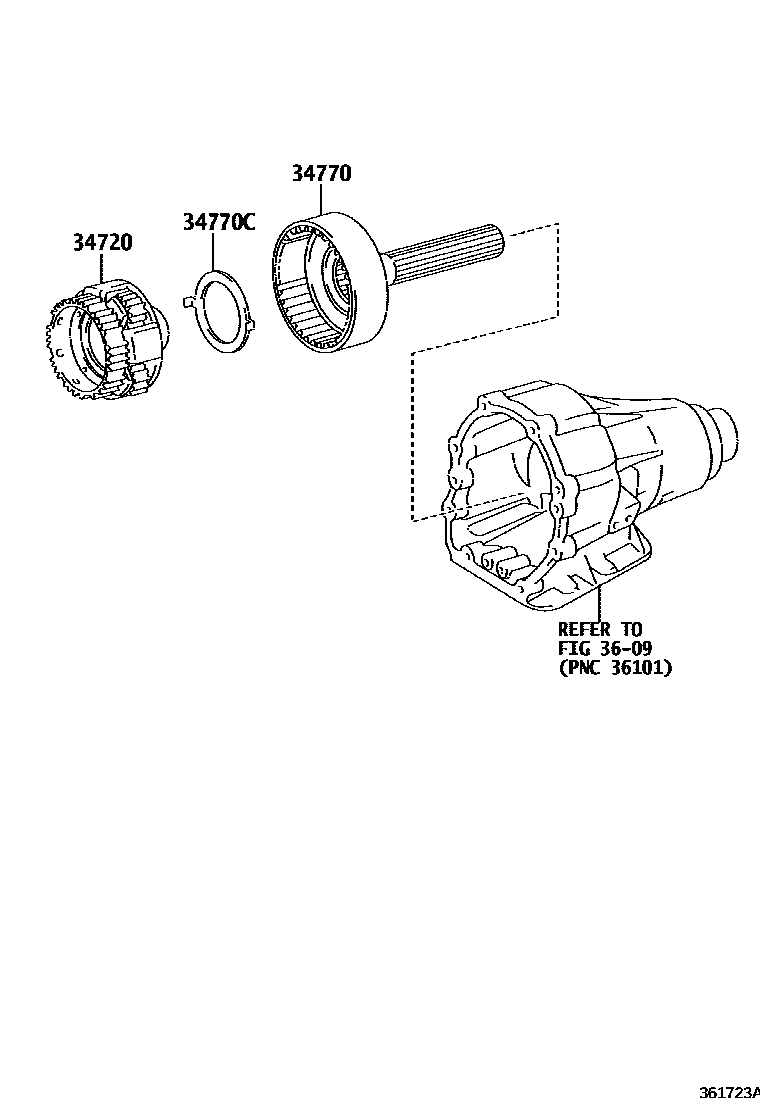

FRONT DRIVE CLUTCH & GEAR

34720CARRIER ASSY, CENTER DIFFERENTIAL

main34720-30020iGRL15201112-202007

34770SHAFT ASSY, TRANSFER REAR OUTPUT

main34770-22010iGRL15201112-202007

34770CBEARING (FOR TRANSFER REAR OUTPUT SHAFT)

main90374-64001iGRL15201112-202007

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

4 parts on this diagram · 1 diagram in section
